Hohmann & Barnard HB-5213 Adjustable Veneer Anchor

Hohmann & Barnard HB-5213 Adjustable Veneer Anchor

SKU HB5213HG14-0
by Hohmann & Barnard
$149.48 - $465.61
$234.88
$149.48 - $465.61
$234.88
350.0item | $0.67 / item
Request a quote

HB-5213 ADJUSTABLE VENEER ANCHOR

⏳ Made-to-Order Item
Typical production lead time: 3-4 weeks
Once an order is placed, no changes, cancellations, or returns are accepted.

HB-5213 Veneer Anchor Only, 2X-HOOK & 523 Brass Expansion Bolt Sold Separately

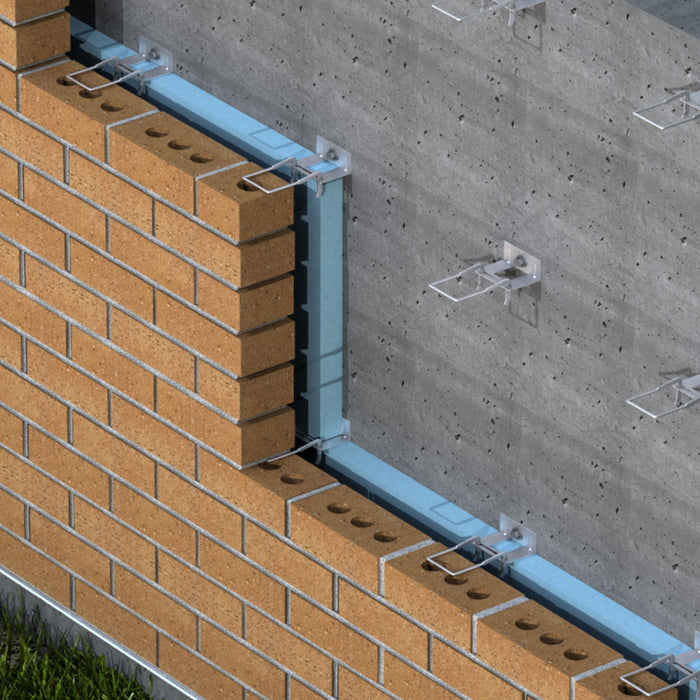

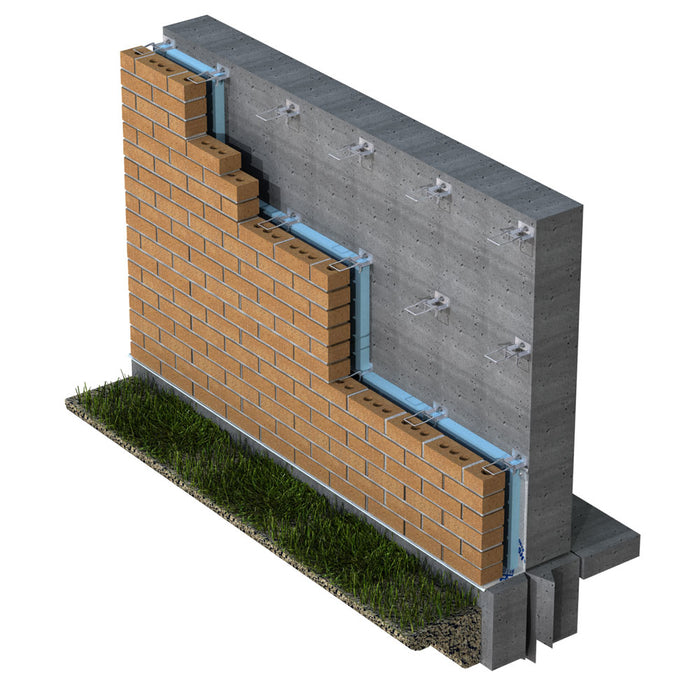

The HB-5213 Adjustable Veneer Anchor is designed for anchoring masonry to concrete, block, or brick walls, with the capacity to accommodate rigid insulation up to 6 inches (75mm) thick. Engineered for maximum strength and durability, the HB-5213 features the 2X-HOOK, a high-performance anchoring system that outperforms traditional methods by over 100%. Tested to withstand over 200-lbf in both tension and compression, this anchor is ideal for robust, long-lasting masonry installations.

FEATURES

  • High Strength Design: The compressed leg 2X-HOOK  has been tested and designed to exceed industry standards, capable of withstanding over 200-lbf in tension or compression at maximum allowable offset (1-1/4” disengagement).
  • Compliant with Codes: The embedded portion of the 2X-Hook is made from 3/16” round wire, satisfying the requirement that the mortar bed thickness must be at least twice the diameter of the wire (typically 3/8”).
  • Versatile Installation: Can be installed with the legs pointing up or down, allowing for flexible installation options.

AVAILABLE FINISHES

  • Hot Dip Galvanized
  • Type 304 Stainless Steel

DIMENSIONS

  • Designed to accommodate up to 6” thick insulation and/or wallboard combination (specify thickness when ordering).
  • Hole Size: 7/16”Ø hole for use with 523 Brass Expansion Bolt.

PACKAGING

  • Sold in boxes of 250 pieces

NOTES

  • Recommended Spacing: 16” x 16”
  • Optional: HB-213 Washer to hold insulation to the backup.
  • 2X-Hook Patent: U.S. Pat. No. 8,613,175
  • For metal stud construction, use the HB-213.
