Hohmann & Barnard HB-5213 Adjustable Veneer Anchor

***VENEER ANCHOR ONLY, 2X PINTLE HOOK SOLD SEPARATELY***

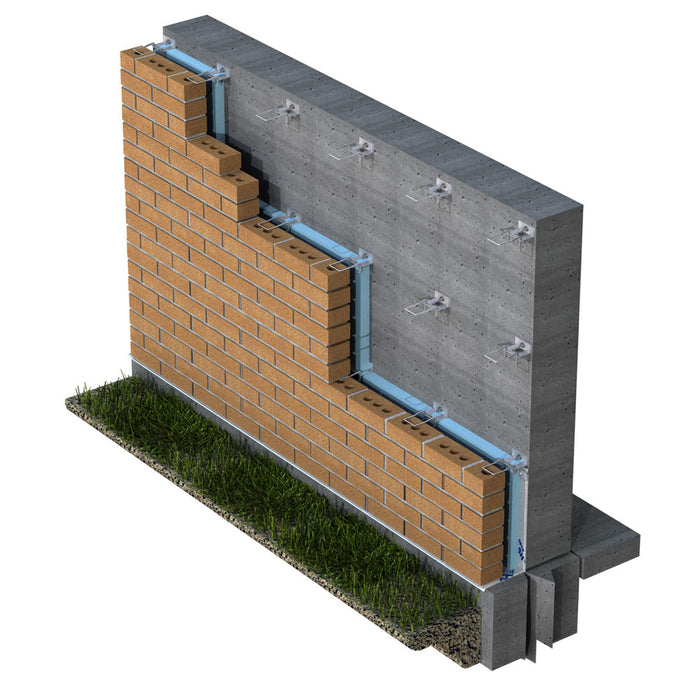

HB-5213 adjustable veneer anchor designed to anchor masonry to concrete, block or brick, accommodating rigid insulation up to 6 inches (75mm) thick.

The compressed leg 2X-HOOK has been tested and designed to withstand over 200-lbf, in tension or compression, at maximum allowed offset (ACI 530 6.2.2.5.5.4) of 1-1/4” (disengagement of the pintle from the veneer anchor). These results exceed BIA recommendations and the capabilities of standard “round wire” hooks or pintles by over 100%!

• Furnished with one 7/16”Ø hole for use with 523 Brass Expansion Bolt.

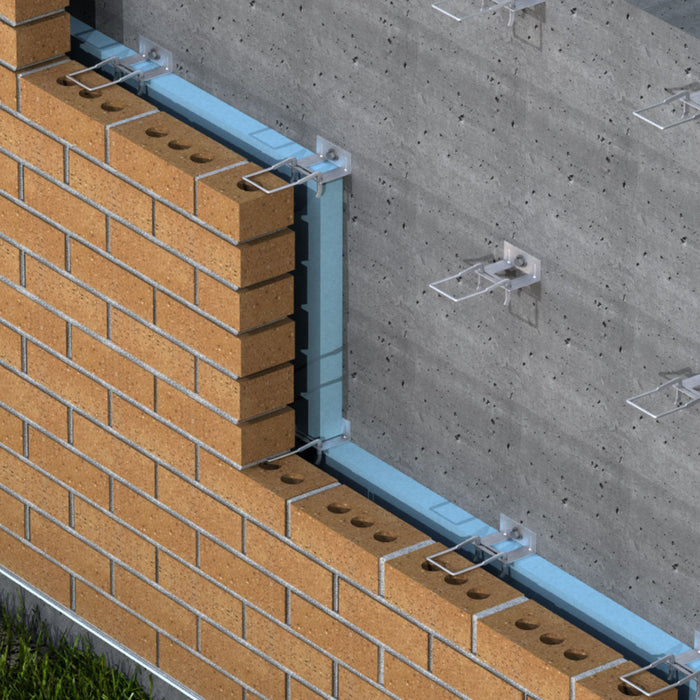

• The eyelets allow 2X-HOOK™ (pintle) insertion (1 1/4" maximum allowable eccentricity) and are sized to prevent in-and-out movement beyond allowable tolerances.
• For metal stud construction, use the HB-213.
• The embedded portion of the 2X-Hook is 3/16”DIA round wire, satisfying the code requirement that the mortar bed thickness (typically 3/8”) must be twice the diameter of the wire.
• 2X-Hook: U.S. Pat. No. 8,613,175 Test results available upon request.

NOTES

• H&B recommends 16" x 16" spacing
• Legs fabricated to accommodate up to 6" thick insulation and/or wallboard combination (state thickness when ordering)
• NOTE: 2X-HOOK CAN BE INSTALLED WITH LEGS POINTING UP OR DOWN.
• Optional: HB-213 Washer to hold insulation to back-up

See Submittal Here
