Hohmann & Barnard Thermal Wingnut 2-Seal Ties (175 Pieces/Box)

THERMAL 2-SEAL WING NUT ANCHOR

Thermal 2-Seal Wing Nut Anchor Only, 2X-HOOK Sold Separately

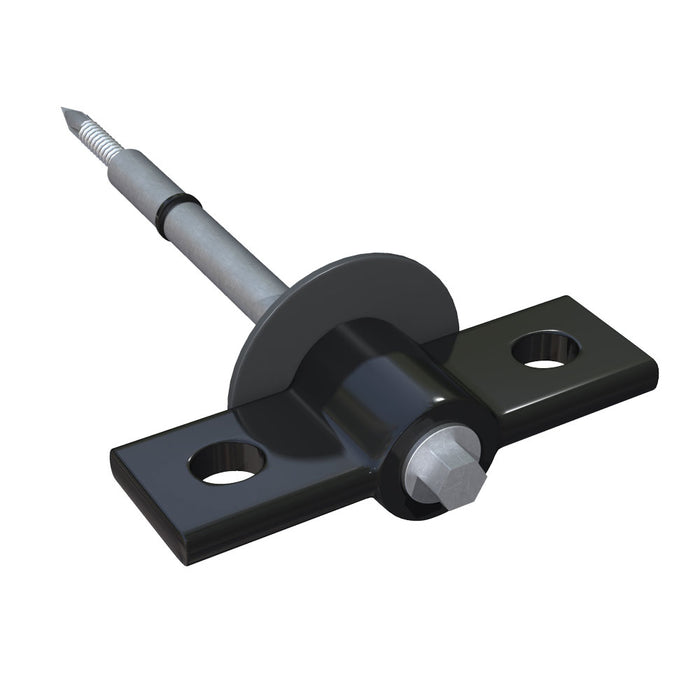

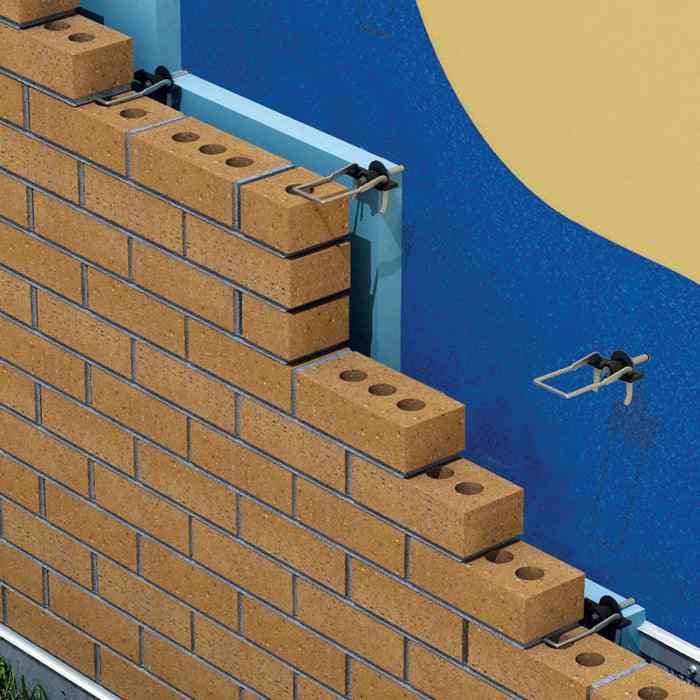

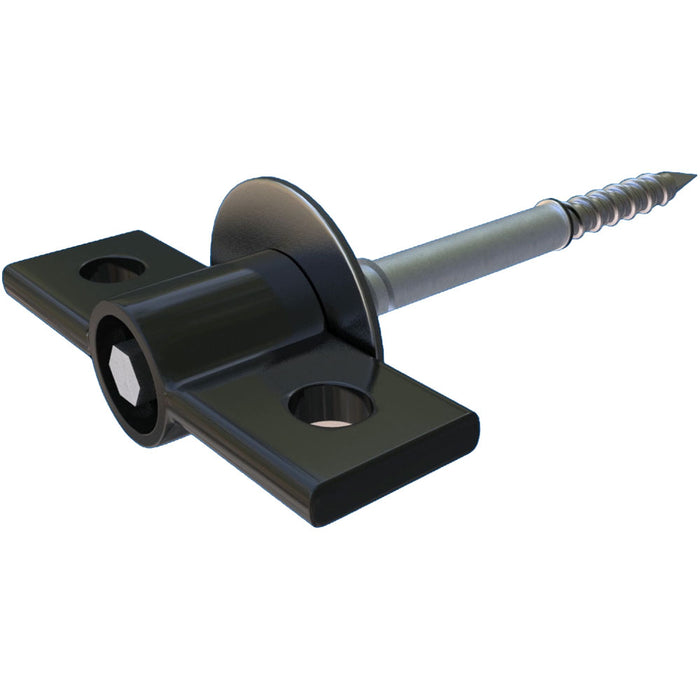

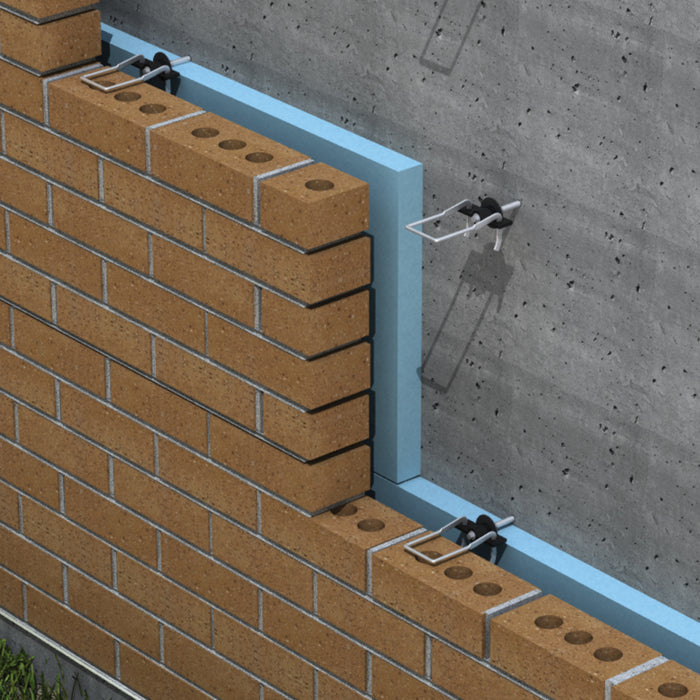

The Thermal 2-Seal Wing Nut Anchor is an advanced, single screw veneer tie designed for use in steel, concrete, CMU, and wood stud construction. It features a dual-diameter barrel with factory-installed EPDM washers, ensuring a sealed connection to both the face of the insulation and the air/vapor barrier. The anchor includes Thermal Wings, designed to reduce thermal transfer through rigid insulation. These wings are made from steel encapsulated in flame-resistant plastic, providing a thermal break. The Thermal 2-Seal is adaptable for seismic zones and can easily be adjusted for variations in wall thickness.

FEATURES

• Thermal Efficiency: Designed with Thermal Wings that create a thermal break to reduce heat loss
• Dual-Diameter Barrel: Includes EPDM washers for a secure seal around insulation and air/vapor barrier
• Highly Flame Resistant: Thermal Wings are made from flame-resistant plastic encapsulated steel
• High Strength: Tested to withstand over 200-lbf in tension or compression, exceeding BIA recommendations
• Adjustability: Up to 1/2” inward adjustability for wall thickness variations
• Stainless Steel: Stainless steel barrel with significantly lower thermal conductivity compared to carbon steel and zinc barrels
• Easy Installation: Features a 5/16” hex head for installation with a standard hex socket
• Seismic Adaptability: Easily adaptable for seismic zones by adding 9 gauge or 3/16" continuous wire and a 2X-HOOK Seismic Pintle (SH)
• Multiple Size Options: Available in sizes that correspond to wallboard and/or insulation thicknesses
• Patent-Pending: U.S. Patent No. 7,415,803

AVAILABLE FINISHES

• Type 304 Stainless Steel

DIMENSIONS

• Sizes: Available in 5/8”, 1”, 1-1/2”, 2”, 2-1/2”, 3”, 3-1/2”, 4”, and 4-1/2”
• For matching wallboard or insulation thicknesses

PACKAGING

• Sold in boxes of 175 pieces

NOTES

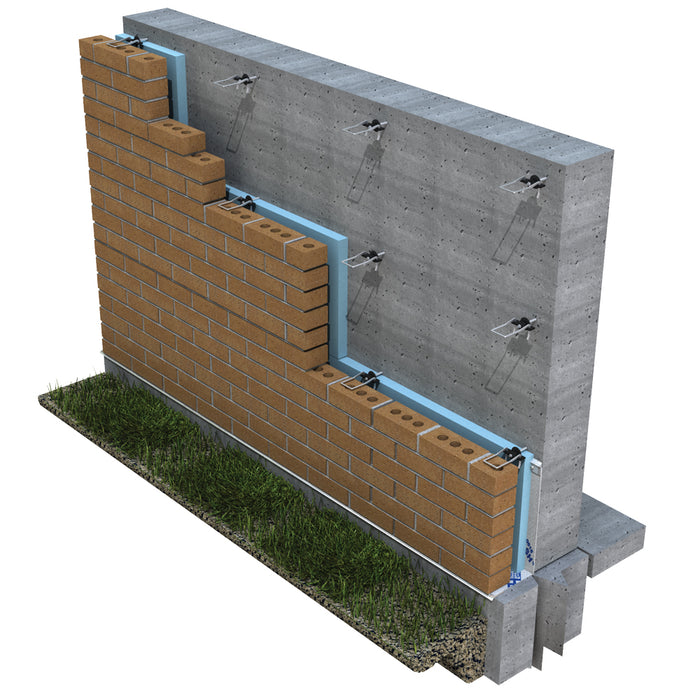

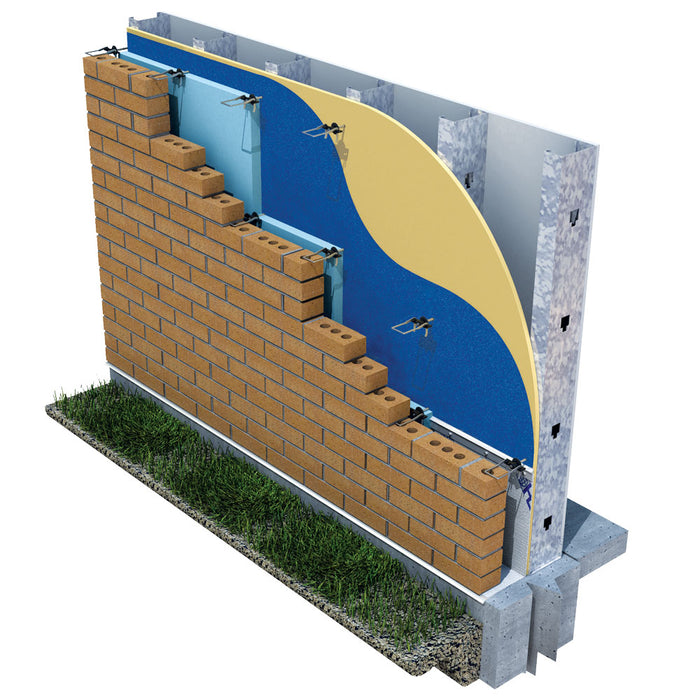

• Versatile: Suitable for steel, concrete, CMU, masonry, or wood stud backup
• Spacing: H&B recommends 16" x 16" spacing for optimal performance
• Thermal Properties: Stainless steel barrels offer significantly lower thermal conductivity than carbon steel or zinc barrels, enhancing thermal insulation performance

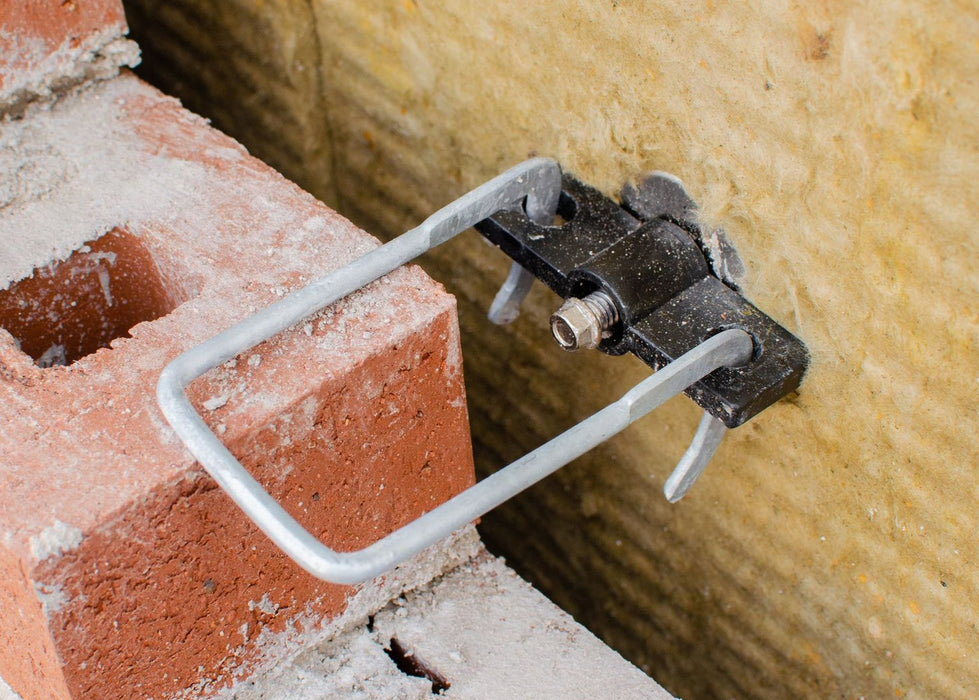

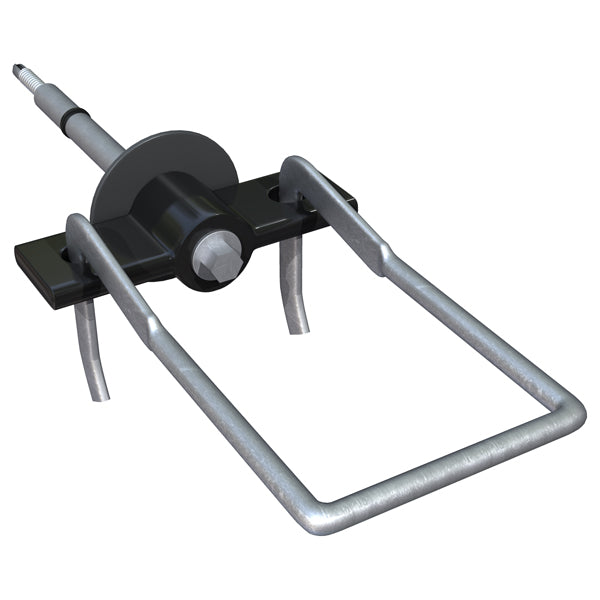

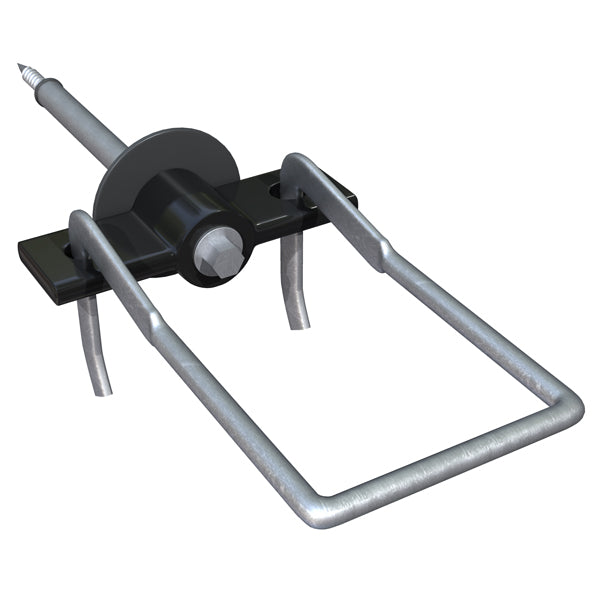

• 2X-Hook Compatibility: Designed to work with 2X-HOOK or Seismic 2X-HOOK, which are sold separately

RESOURCES

• Steel Stud Submittal
• Concrete, CMU, Wood Stud Submittal
• Metal Stud Sizing Chart
• Concrete/CMU Sizing Chart
• Wood Stud Sizing Chart
• Safety Data Sheet Polymer Coating
• Safety Data Sheet Bright Basic Wire
• Safety Data Sheet Hot-Dip Galvanized Coating
• Safety Data Sheet Stainless Steel
• Safety Data Sheet Thermal UL-94 Coating
• LEED 2-Seal Thermal Wing Nut
