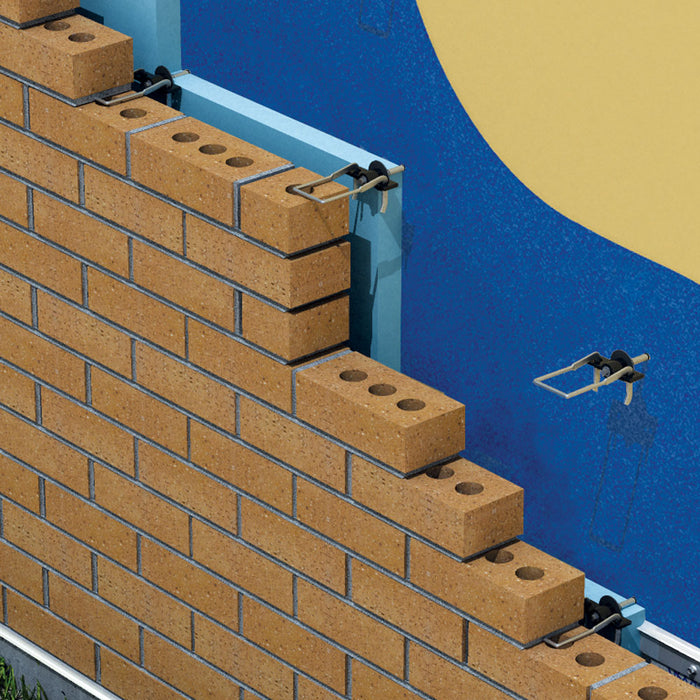

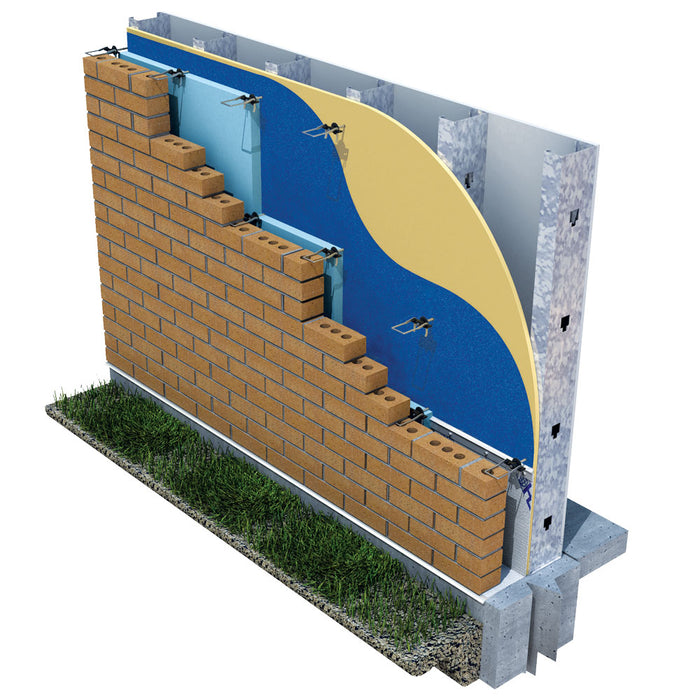

The Thermal 2-Seal™ Wing Nut Anchor is an innovative single screw veneer tie for metal stud construction, it features a dual-diameter barrel with factory-installed EPDM washers toseal both the face of the insulation and the air/vapor barrier,and unique Thermal Wings that aredesigned to decrease thermal transfer through rigid insulation.

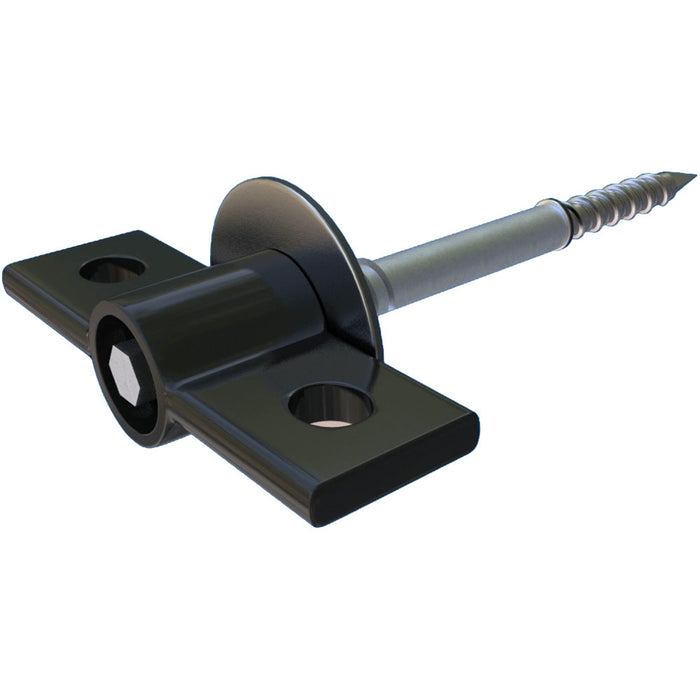

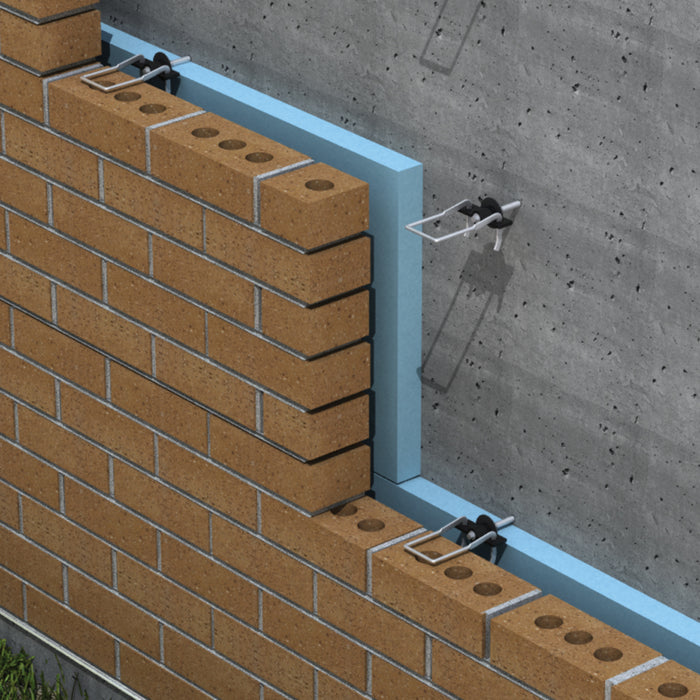

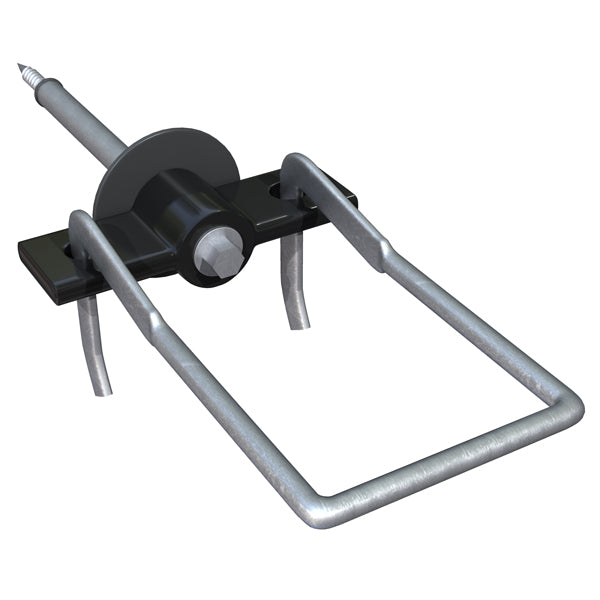

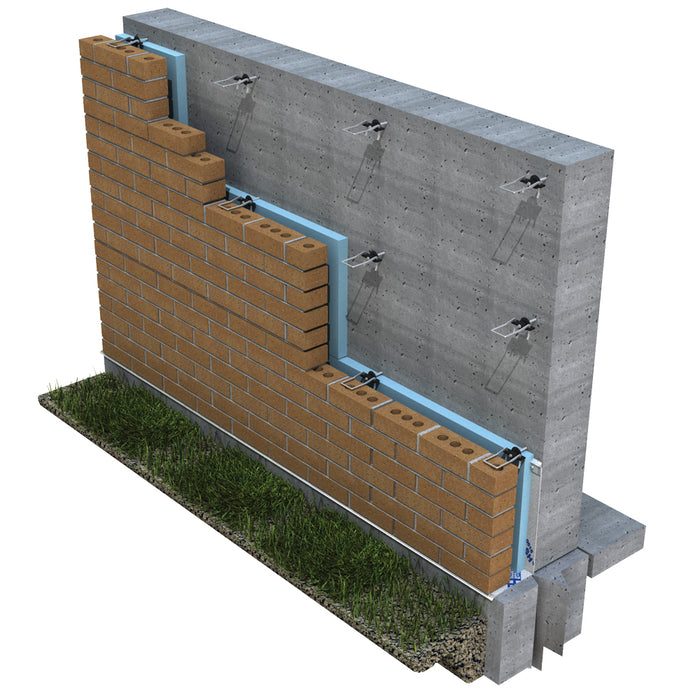

The Thermal Concrete 2-Seal™ Wing Nut is an innovative single screw veneer tie for concrete, CMU, or wood stud construction. The anchor features a dual-diameter barrel with factory-installed EPDM washers to seal both the face of the insulation and the air/vapor barrier, and unique Thermal Wings that are designed to decrease thermal transfer through rigid insulation.
The projecting Thermal Wings:
Are made from steel encapsulated in plastic to create a thermal break, the plastic is highly flame resistant

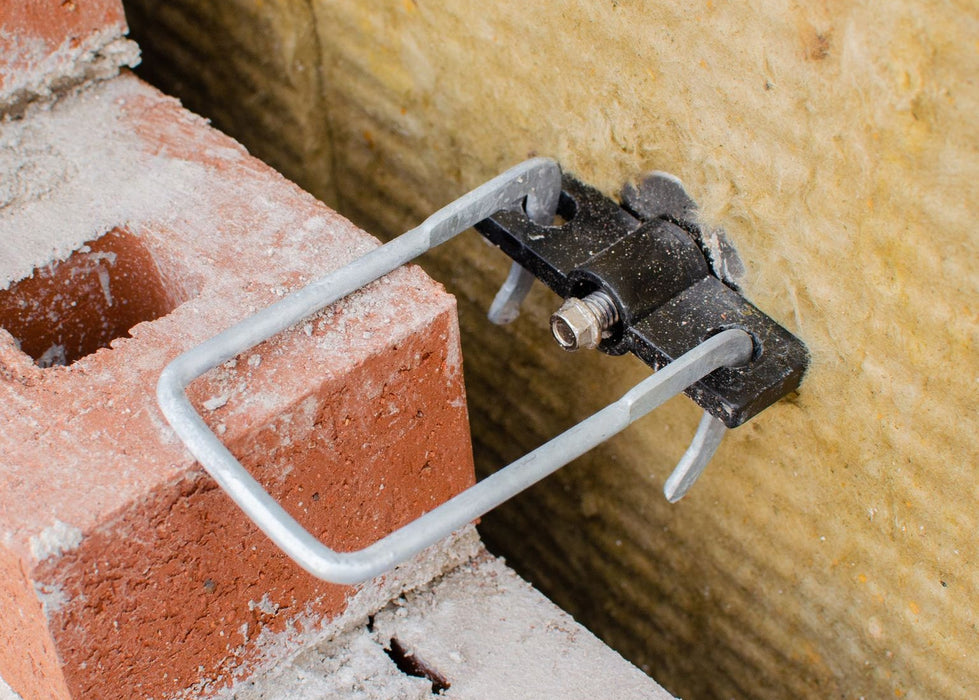

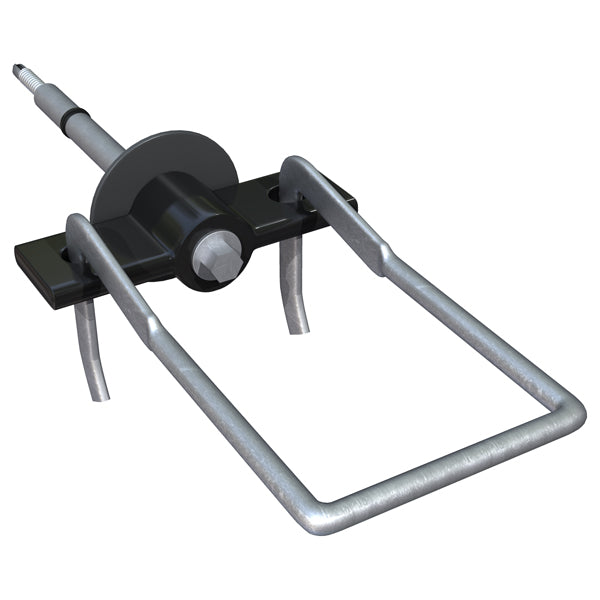

Accept a 2X-HOOK™ or Seismic 2X-HOOK™ and spin to easily orient pintles/hooks parallel to masonry joints
Up to 1/2” of inward adjustability to account for variations in wall thickness
H&B's Stainless Steel barrels haveone-thirdthe thermal conductivity of carbon steel barrels andone-sevenththe thermal conductivity of the zinc barrels of our competitors products(refer to chart below)
Thermal Conductivity (W/cm K)
Stainless Steel (Type 304)
AISI-SAE 1020 (Plain Carbon Steel)
ASM Metals Reference Book, Second Edition, American Society for Metals, Metals Park, OH, 1983.
Lynch, C. T., CRC Practical Handbook of Materials Science, CRC Press, Boca Raton, FL, 1989.
Shackelford, J. F., and Alexander, W., CRC Materials Science and Engineering Handbook, CRC Press, Boca Raton, FL, 1991.
Made with a 5/16” hex head, install with a standard hex socket
The compressed leg 2X-HOOK™ has been tested and designed to withstand over 200-lbf, in tension or compression, at maximum allowed offset (ACI 530 184.108.40.206.5.4) of 1-1/4” (disengagement of the pintle from the veneer anchor). These results exceed BIA recommendations and the capabilities of standard “round wire” hooks or pintles by over 100%!
NOTE:2X-HOOK™ CAN BE INSTALLED WITH LEGS POINTINGUP OR DOWN.
The embedded portion of the 2X-Hook is 3/16”DIA round wire, satisfying the code requirement that the mortar bed thickness (typically 3/8”) must be twice the diameter of the wire.
2X-Hook: U.S. Pat. No. 8,613,175Test results available upon request.
Type 304 Stainless Steel Barrel with Polymer Coated Screw
Available in 5/8", 1", 1-1/2", 2", 2-1/2", & 3" sizes (Equal to thickness of wallboard and/or insulation)
