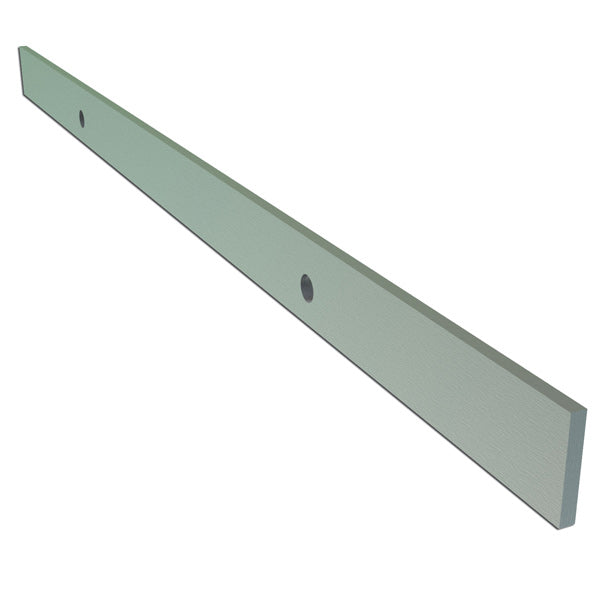

Hohmann & Barnard T-1 Termination Bar (25 Pieces/Box)

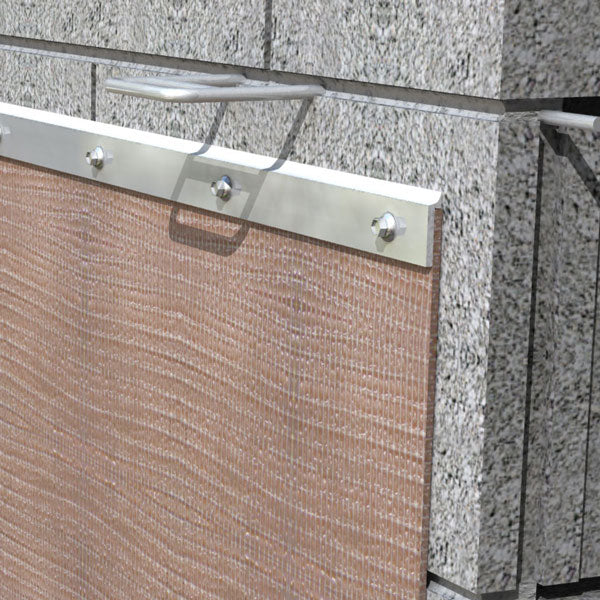

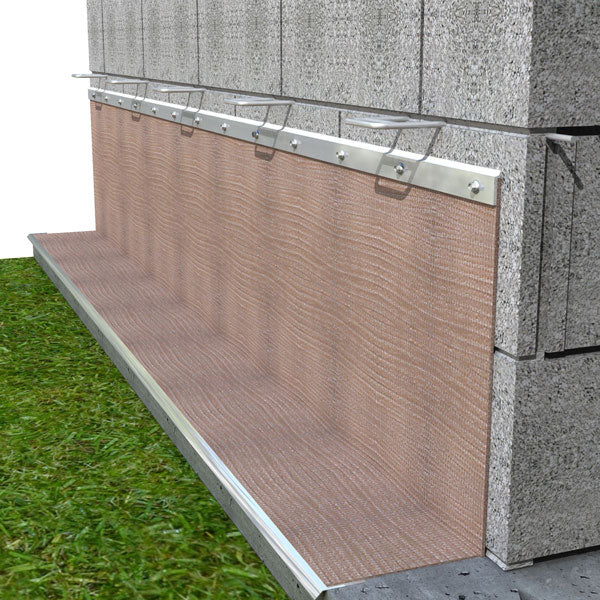

T1 - TERMINATION BAR is used at the top of flashing to secure it to the backup and is compatible with all H&B membrane and copper-laminate flashings.

DIMENSIONS

• 1/8” x 1” x 8’ long
• 1/4” holes spaced 8” on center
• Each piece is 8' long
• Sold in boxes of 200' or 25 pieces

AVAILABLE FINISHES

• Type 304 stainless steel
• Aluminum
• Plastic

NOTE

• Alternate styles available in T2 Aluminum and T2 stainless steel
• Available with optional Foam-Tite Seal™ to aid in inhibiting moisture infiltration. This factory-installed foam strip helps seal small voids occurring between the termination bar and any irregular surfaces of the substrate, while offering added protection against water penetration due to deterioration of the sealant
• FTS - Foam-Tite Seal™: Specify T2-FTS when ordering
• Only Stainless Steel and Aluminum versions of the T1 Termination Bar are acceptable for the ENVIRO-BARRIER System Warranty
• U.S. Pats. No. 6,945,000
• Patents Pending

RESOURCES

• Submittal
• Safety Data Sheet Stainless Steel
• Safety Data Sheet Plastic
• Safety Data Sheet Aluminum
• LEED T-1 Termination Bar
