ADJUSTO-TIE VENEER ANCHOR
Adjusto-Tie Veneer Anchor Only, 2X-HOOK Sold Separately

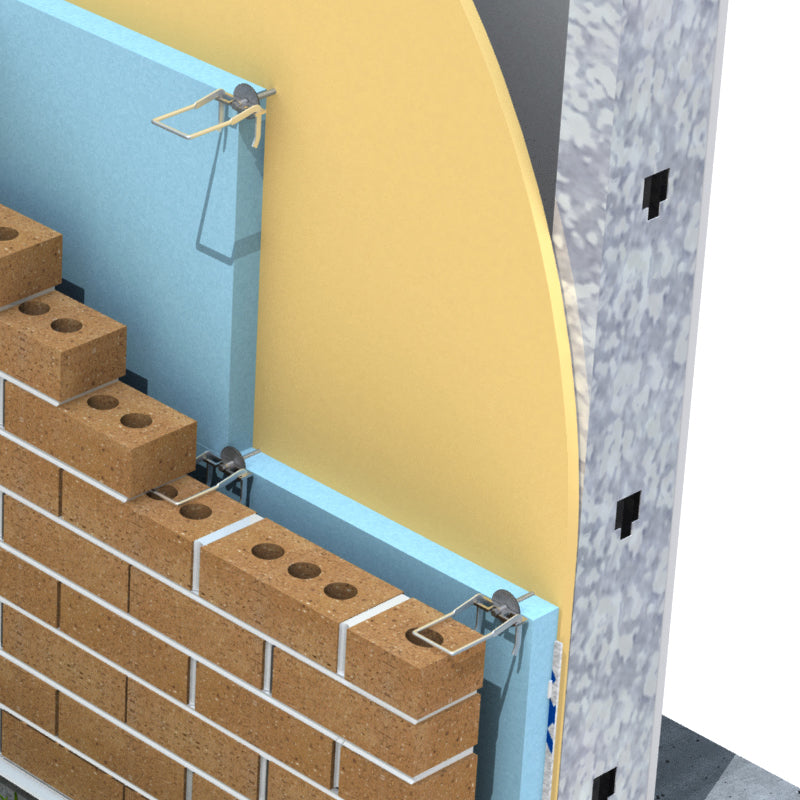

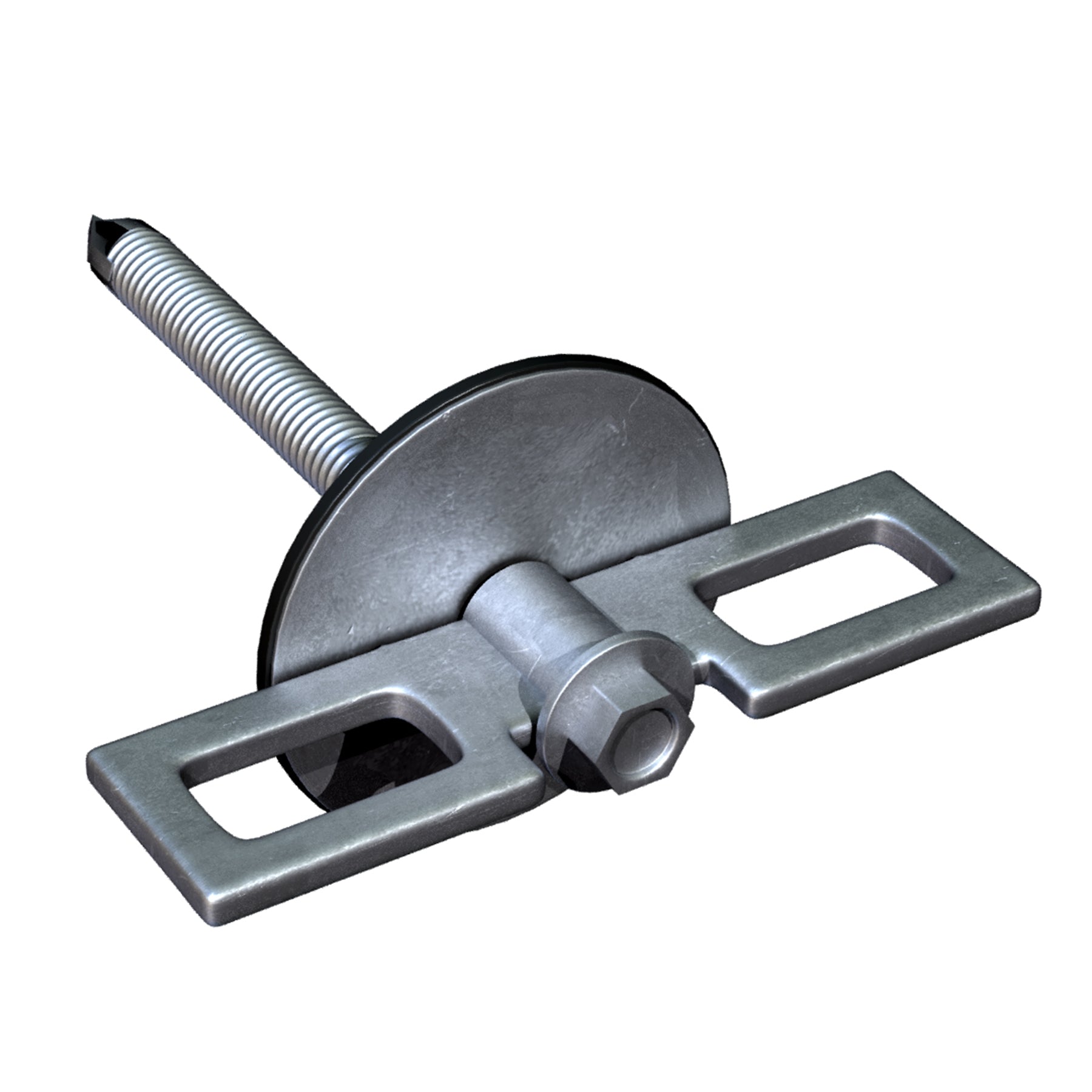

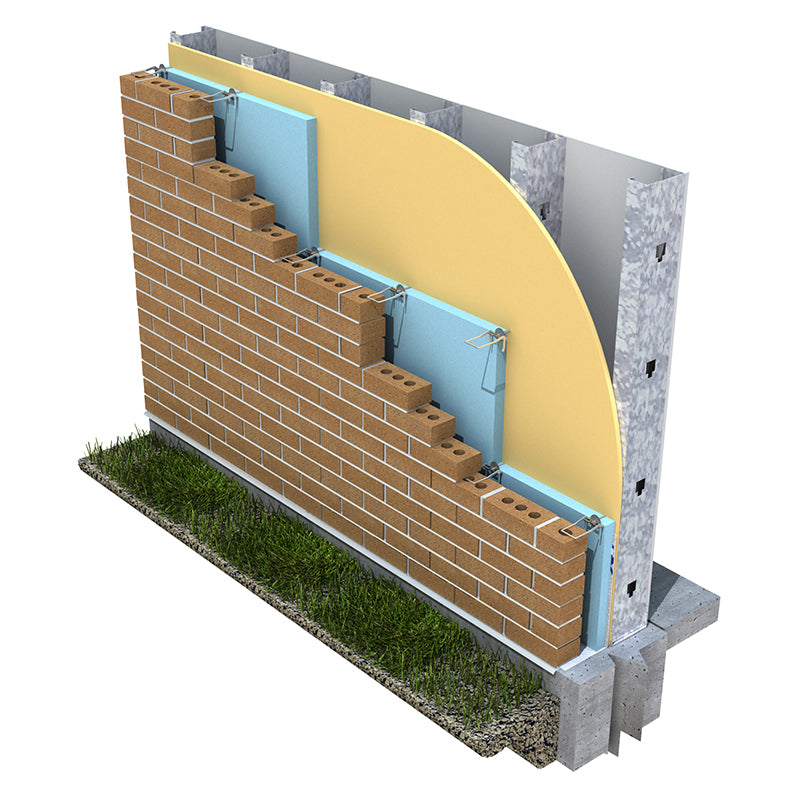

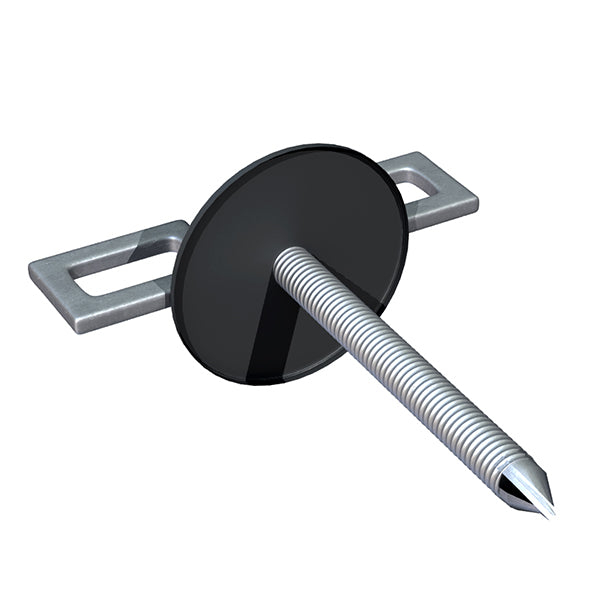

The Adjusto-Tie is an innovative, adjustable single-screw veneer tie designed for metal stud construction. This anchor features a factory-installed EPDM washer, which secures rigid insulation and/or gypsum sheathing to metal studs. With its versatile design, it is ideal for a variety of wall sizes and insulation thicknesses.
FEATURES
-
Adjustable design: Use one anchor for multiple wall sizes, with projecting wings that accept a standard or seismic hook and spin to quickly orient pintles/hooks parallel to the masonry joint.
-
Fully threaded shaft: Accommodates different insulation thicknesses by simply spinning the wing for fine adjustments.
-
Quick installation: Fabricated with a 5/16" hex head for easy installation using a standard hex socket.
-
Versatile use: Excellent for non-conventional sheathings like plywood and composite insulation boards against steel studs.
- #12 screw integrated into anchor.
AVAILABLE FINISHES
BACKUP TYPE
DIMENSIONS
- 3 1/4" anchor (fits 5/8", 1", 1 1/2", 1 5/8" wallboard + insulation)
- 4 1/2" anchor (fits 2", 2 1/8", 2 1/2", 2 5/8", 3", 3 1/8" wallboard + insulation)
- 5 1/2" anchor (fits 3 1/2", 3 5/8", 4", 4 1/8", 4 5/8" wallboard + insulation)
NOTES
- H&B recommends 16” x 16” spacing
-
2X-HOOK (sold separately) can be installed with legs pointing up or down
-
Minimum Airspace Requirement: 1"
- Adjusto-Tie: U.S. Patent No. 7,415,803
- 2X-Hook: U.S. Patent No. 8,613,175
For easy installation, adjustability, and compatibility with multiple wall types, the Adjusto-Tie Veneer Anchor is a highly effective solution for your masonry projects.
