Hohmann & Barnard 315 Flexible Dovetail Brick Tie – Hot-Dip Galvanized (250/Box)

315 FLEXIBLE DOVETAIL BRICK TIE

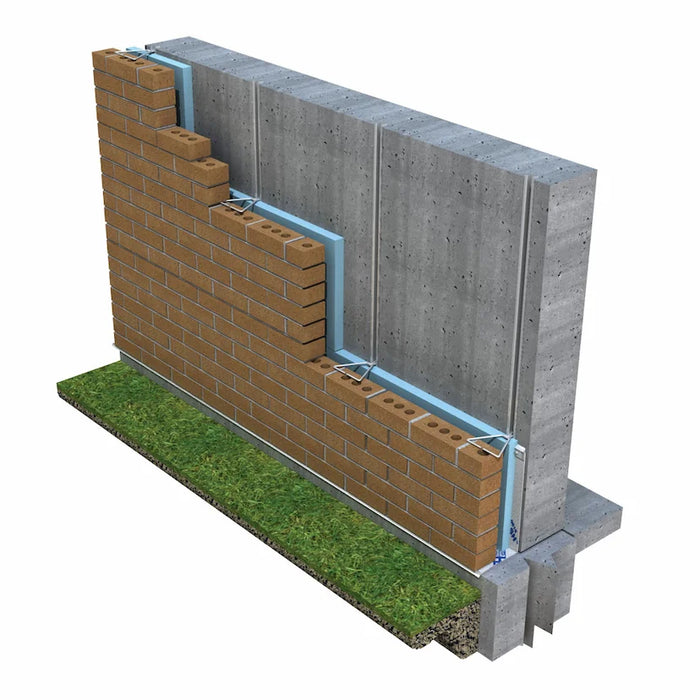

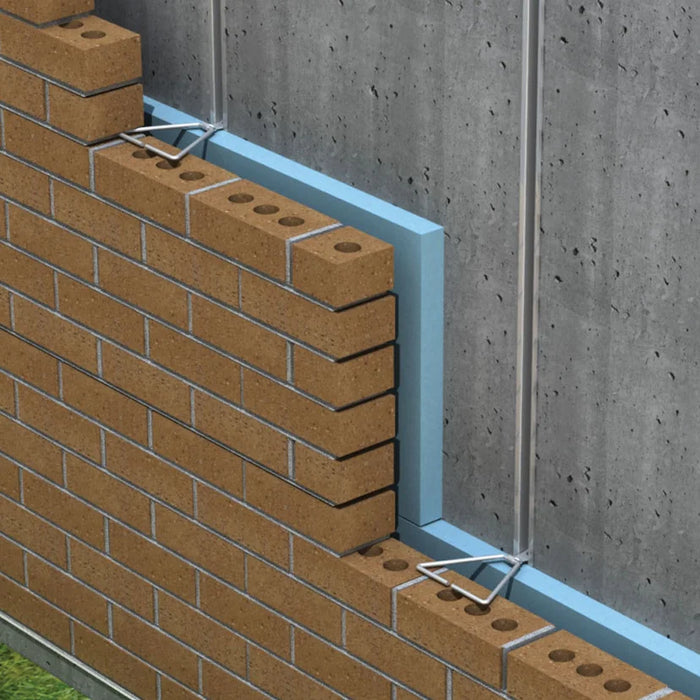

The 315 Dovetail Tie is designed for use with the #305 Dovetail Slot or can be anchored directly to the backup. It allows for both horizontal and vertical movement of the masonry wall, while effectively restraining tension and compression forces. Structural adequacy must be verified by the project engineer before surface mounting.

FEATURES

• Movement Capability: Permits both horizontal and vertical movement of the masonry wall while restraining tension and compression forces.
• Flexible Application: Suitable for a variety of backup types including brick, concrete, CMU, metal studs, and wood studs.
• Durable Construction: Designed for use in demanding construction environments, ensuring longevity and structural integrity.

AVAILABLE FINISHES

• Hot Dip Galvanized


DIMENSIONS/GAUGES

• Dovetail Head: Standard 12 Gauge
• Dovetail Head Hole: 9/32" dia
• Vee-Byna Tie Diameter: Standard 3/16"
• Vee-Byna Tie Length: 3" and 4"

BACKUP TYPES

• Brick
• Concrete
• CMU
• Metal Stud
• Wood Stud

WIRE DIAMETER

• 3/16" Ø

PRODUCT PACKAGING

• Sold in boxes of 250 pieces

RESOURCES

• Submittal
• Safety Data Sheet Hot Rolled Carbon Steel
• Safety Data Sheet Galvanized Steel Sheet
• Safety Data Sheet Bright Basic Wire
• Safety Data Sheet Hot-Dip Galvanized Coating
• Safety Data Sheet Stainless Steel
• LEED 315 Flexible Tie
