Mortar Net with Insect Barrier

MORTARNET™ WITH INSECT BARRIER™ – SUPERIOR MOISTURE AND PEST PROTECTION FOR CAVITY WALLS

Protect your masonry cavity walls from moisture damage and insect intrusion with MortarNet™ with Insect Barrier™. Designed to maintain clear weeps and promote effective water drainage, this innovative solution features a patented Insect Barrier that deters pests from entering the cavity. Its structural strand polymer mesh ensures optimal airflow and moisture control, even in tight cavities where insulation reduces space.

FEATURES

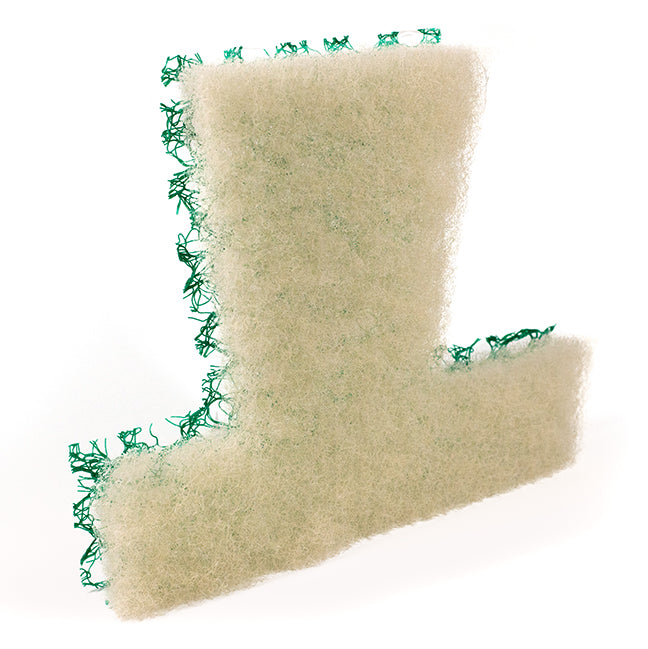

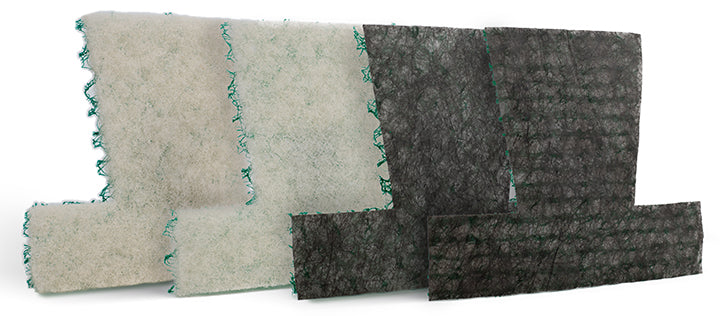

• 0.4” & 1” made from a structural strand polymer mesh bonded to a polyester fabric (insect barrier)
• NEW – 1-1/2” & 2” made from a structural strand polymer mesh bonded to a compressive hi-loft mesh (insect barrier)
• Dual levels for enhanced mortar collection
• Trapezoidal shape for efficient functionality
• Structural strand polymer mesh for superior drainage and airflow
• Patented Insect Barrier for added pest protection
• Made from 40% post-consumer recycled content

BENEFITS

• Compressible design: Accommodates cavity width variations for versatile installation.
• Keeps weeps open: Suspends mortar droppings on dual levels to maintain clear pathways.
• Insect prevention: Insect Barrier deters pests, protecting walls from damage and health risks.
• Enhanced drainage: Open weave mesh provides hundreds of pathways for moisture to exit the cavity.
• Promotes airflow: Low fiber density allows air, water, and vapor to flow freely, aiding wall drying.
• Durable and reliable: Resistant to efflorescence, freeze-thaw damage, degradation, and oxidation.
• Sustainable choice: Recycled content supports LEED certification and eco-friendly construction.
• Easy to handle: Lightweight, clean, and simple to transport, cut, and install—even on scaffolding.
• Prevents callbacks: Reduces maintenance needs, offering peace of mind to masons and building owners alike.

BOX QUANTITIES

ADDITIONAL NOTES

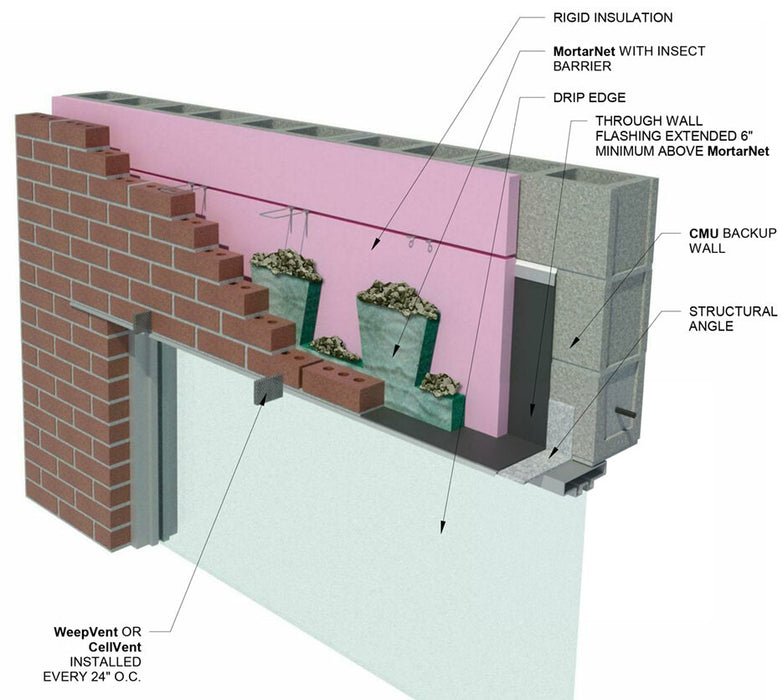

Weep holes are required to enable effective drainage and drying when using MortarNet™. Enhance performance with compatible products like WeepVent™ or CellVent™ to keep weep holes clear and further prevent insect intrusion.

Choose MortarNet™ with Insect Barrier™ for an all-in-one solution that ensures long-lasting, trouble-free cavity wall performance.

RESOURCES

• Product Overview
• Technical Data Sheet
• Submittal
• Safety Data Sheet
• Test Results .4" and 1"
• Test Results 2"
• Installation Instruction
