Description

Helps Keep Cavity Walls Dry and Flashings Functioning Properly

Mortar dropping device that helps prevent mortar droppings from blocking the weeps.

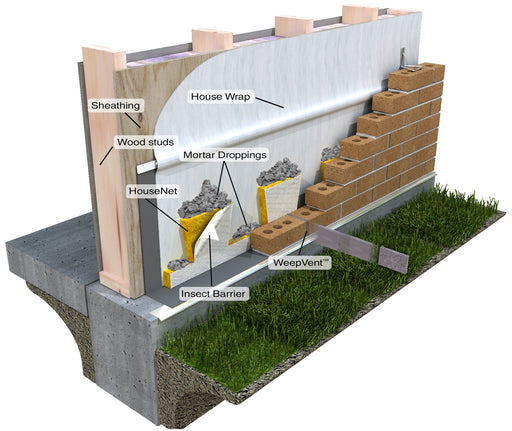

In masonry cavity walls, mortar collection above the flashing and weep hole levels is vital for proper masonry wall performance and to prevent water damage. In today’s walls, it’s common to see a 2” cavity reduced to the minimum requirement of 1” with the inclusion of insulation, so the need for better ventilation is essential to keep the wall dry and trouble-free. MortarNet WallDefender suspends mortar droppings above the flashing and weeps, so they stay clear and unobstructed. Its NEW design using a structural strand polymer mesh allows moisture to flow to the weeps and significantly greater airflow within the cavity to promote drying.

Features

Dual levels
Trapezoidal shape
Structural strand polymer mesh
Made from 40% post-consumer recycled content

Benefits

Compressible to allow for variations in cavity width
A cost competitive alternative to MortarNet™ with Insect Barrier
Breaks up and suspends mortar droppings above the flashing on two levels so weeps stay open
Structural strand polymer mesh construction provides hundreds of pathways for moisture to exit the cavity
Is very permeable to air, water and water vapor due to the low fiber density of the non-woven structure
Helps prevent efflorescence and damage from freeze-thaw cycles
Easy to transport, handle and cut, even on scaffolding
Installs easily on brick ties in multi-story cavity walls
Will not degrade, oxidize, or react with common building materials
Clean and non-toxic
Recycled content helps with LEED certification
Helps eliminate callbacks to repair moisture damage
Provides masons and building owners with a greater peace of mind

Available Sizes

3/8" x 10" x 5'
1" x 10" x 5'
1-1/2" x 10" x 5'
2" x 10" x 5'

Weep holes must be used with MortarNet WallDefender to allow effective moisture drainage and wall drying.
