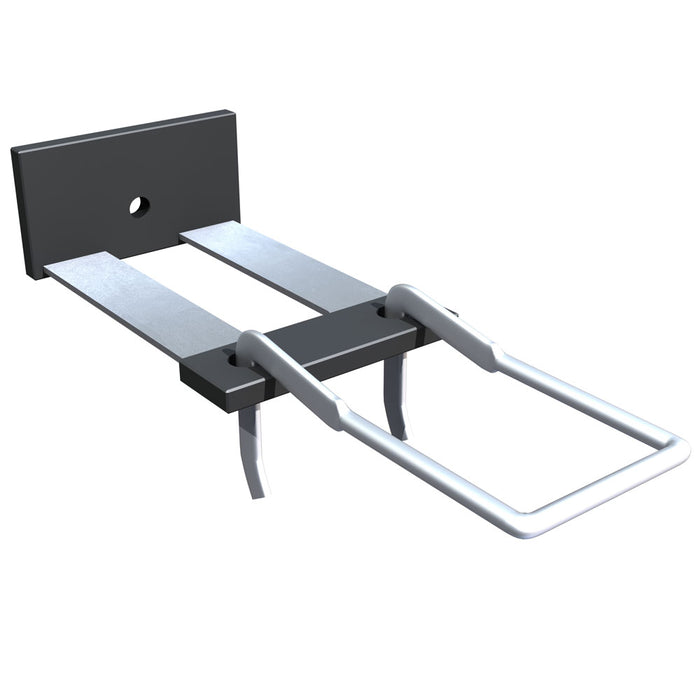

Hohmann & Barnard Thermal HB-213 Adjustable Veneer Anchor (175 Pieces/Box)

HIGH-PERFORMANCE THERMAL VENEER ANCHOR DESIGNED FOR ENERGY-EFFICIENT WALL SYSTEMS.

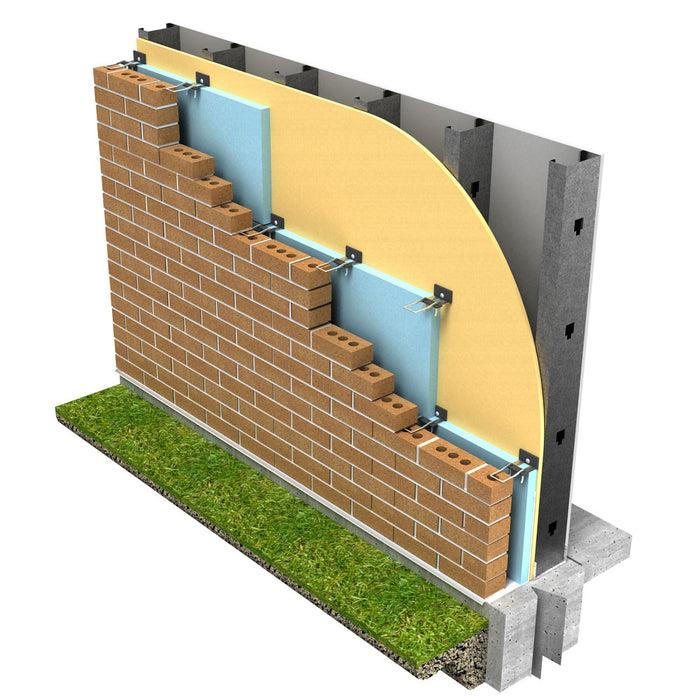

The THERMAL HB-213 Adjustable Veneer Anchor is engineered for modern wall assemblies where thermal performance, labor savings, and durability are critical. Featuring an integrated thermal break and single-fastener design, the HB-213 reduces thermal bridging while speeding up installation.

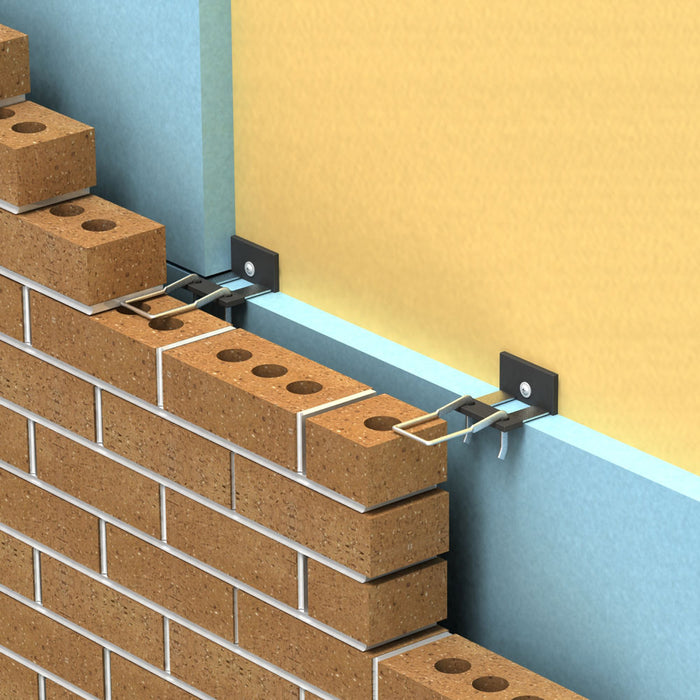

Installed prior to continuous insulation, the HB-213 eliminates blind fastening and simplifies wall sequencing — saving time while improving overall wall performance.

FEATURES & BENEFITS

• Installs before continuous insulation eliminates blind fastening to backup wall

• Integrated thermal break improves energy efficiency and supports stretch code compliance

• Single-fastener design reduces thermal transmittance and speeds installation

• Cuts installation labor in half compared to standard veneer anchors

• Stainless steel construction delivers long-term corrosion resistance

• Engineered eyelets accept 2X-HOOK™ pintles with 1-1/4" maximum allowable eccentricity

• Controlled tolerances prevent excessive in-and-out movement

• Standard hole diameter: 9/32" Ø

VERTICAL ADJUSTABILITY

• 1-1/4"

BACKUP COMPATIBILITY

Suitable for installation into:

• Brick

• Concrete

• CMU

• Metal Stud

• Wood Stud

MATERIAL

• Type 304 Stainless Steel

GAUGE

• 14 gauge

AVAILABLE LENGTHS

• 2"

• 3"

• 4"

• 5"

• 6"

• 8"

RECOMMENDED SPACING

• 16" x 16" (per H&B recommendation)

OPTIONAL ACCESSORY

• HB-213 Washer for securing insulation to backup wall

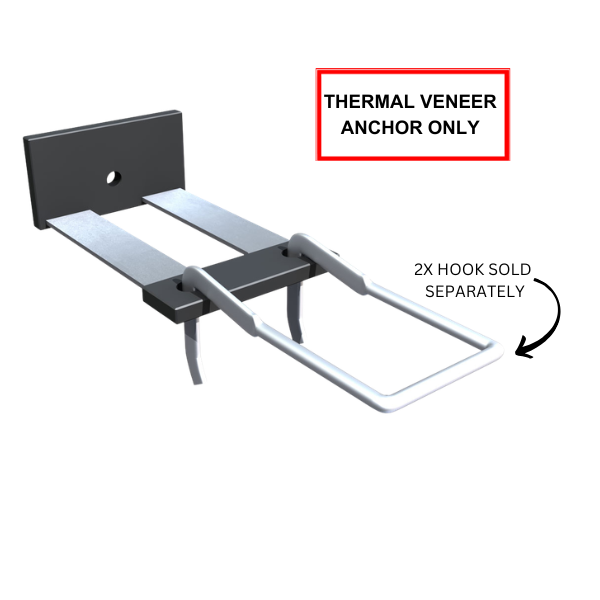

COMPATIBILITY (HOOKS SOLD SEPARATELY)

• 2X Pintle Hook
• Mighty-Lok 2X Hook
• 2X-SH Compressed Leg Seismic Hook
• 2X-Hook With Welded Seismic Clip

RESOURCES

• Submittal THERMAL HB-213
• Stainless Steel SDS
• Thermal UL-94 Coating SDS
• LEED HB-213
• HPD Masonry Anchor Products 304 Stainless Steel
