Hohmann & Barnard 2-Seal Byna-Lok Wire Tie – 3/16" Hot-Dip Galvanized (125/Box)

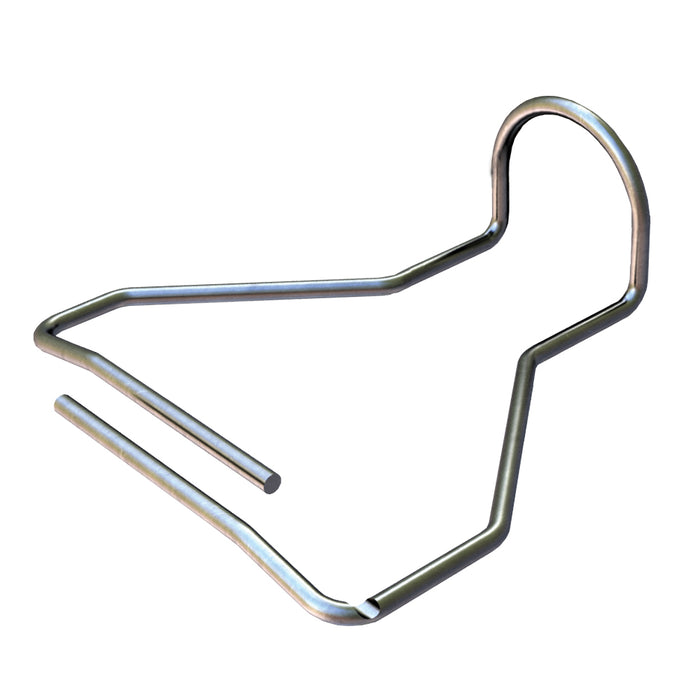

2-SEAL BYNA-LOK WIRE TIE

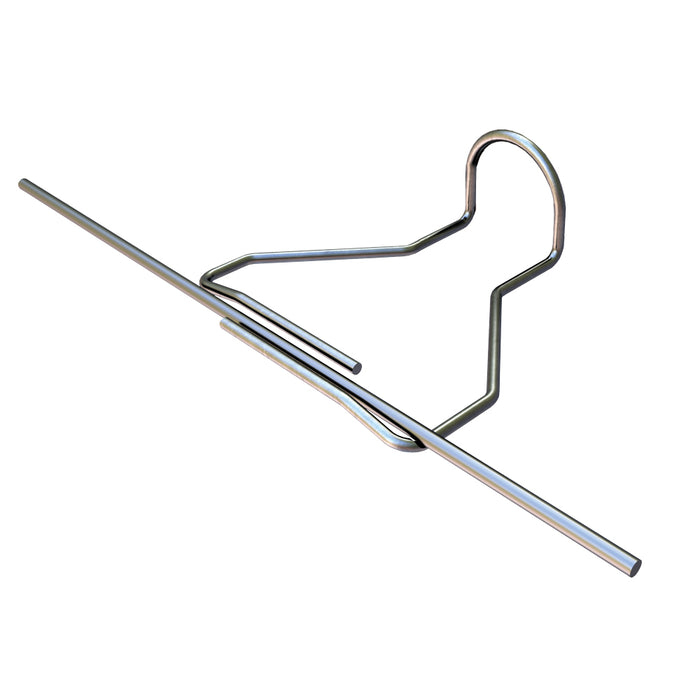

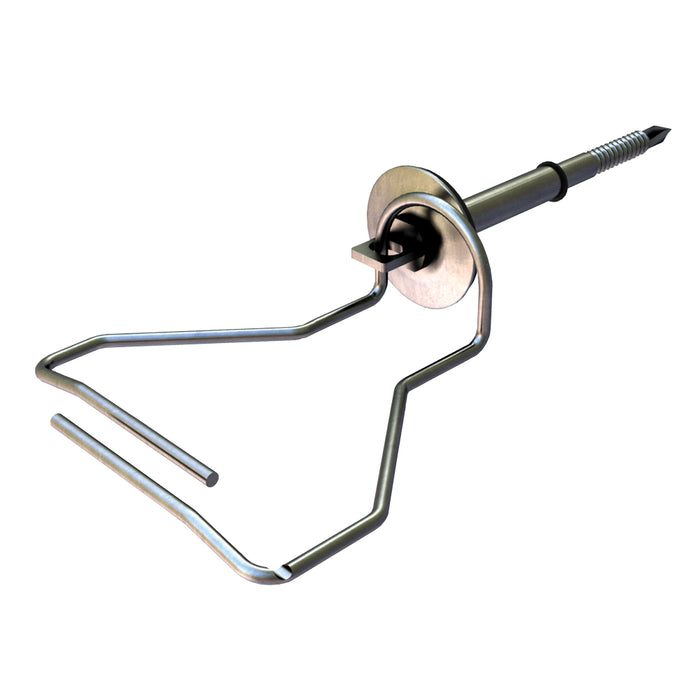

The 2-Seal Byna-Lok Wire Tie is designed to work in conjunction with the 2-Seal Tie and Thermal 2-Seal Tie, providing a secure connection for masonry veneer walls. The tie features swaged, overlapping legs that accept 9 gauge or 3/16" continuous wire, making it ideal for use in seismic zones and for crack control in masonry applications. The Byna-Lok Wire Tie ensures reliable performance in challenging conditions, enhancing the overall integrity of your veneer installation.

FEATURES

• Swaged, Overlapping Legs: Designed for easy integration with 9 gauge or 3/16" continuous wire
• Seismic Zone & Crack Control: Adds additional reinforcement for masonry walls in seismic zones
• Compatible with 2-Seal and Thermal 2-Seal Ties: Works seamlessly with both anchor types for enhanced performance
• Durability: Constructed to meet the rigorous demands of masonry installations in varying conditions

DIMENSIONS

• Wire Diameter: 3/16"
• Lengths Available: 3", 4" and 5"
• Finish: Hot-dip galvanized

PACKAGING

• 125 pieces per box

NOTES

• 2-Seal Tie and Thermal 2-Seal Tie are sold separately

For added seismic protection and crack control, trust the 2-Seal Byna-Lok Wire Tie to complete your veneer anchor system.

RESOURCES

• Safety Data Sheet Bright Basic Wire

• Safety Data Sheet Hot-Dip Galvanized Coating
• Safety Data Sheet Stainless Steel
