Hohmann & Barnard T-2 Termination Bar (25 Pieces/Box)

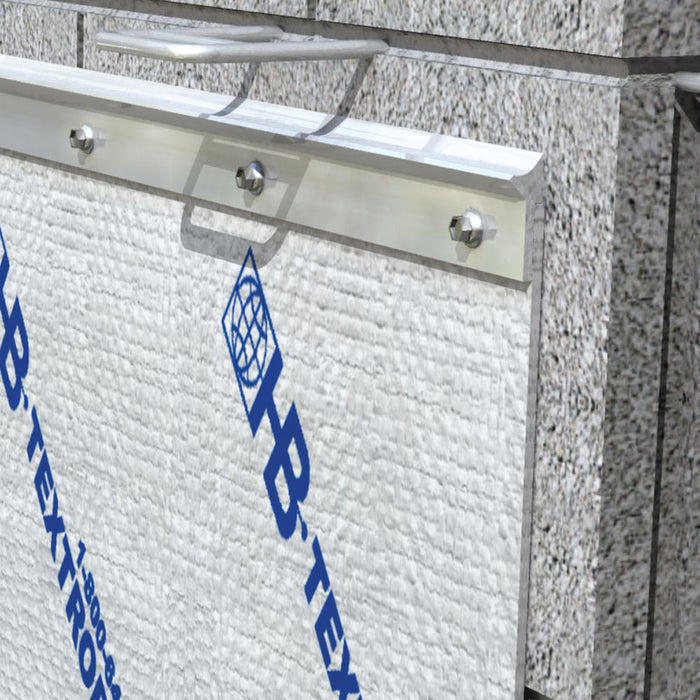

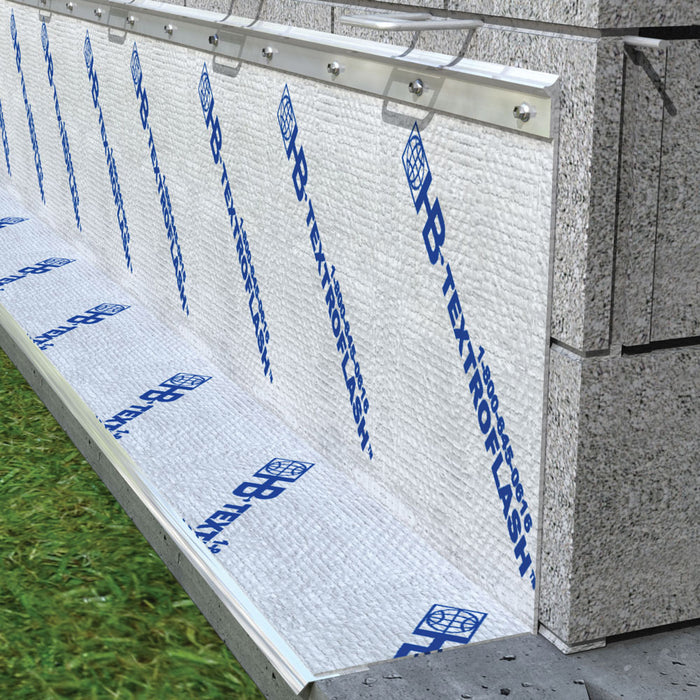

T2 - Termination Bar features a flange on top for easy caulking and is used at the top of flashing to secure it to the backup. It is compatible with all H&B flashing products.

AVAILABLE FINISHES

• Type 304 Stainless Steel
• Aluminum

DIMENSIONS

Stainless Steel:

• 26 ga. x 1-1/2” x 8’ long
• 3/8” flange on top for easy caulking

Aluminum:

• 14 ga. x 1” x 8’ long
• 1/4” flange on top for easy caulking

FEATURES

• 1/4” holes spaced 8” on center
• Each piece is 8' long
• Sold in boxes of 200' or 25 pieces

BENEFITS

• Compatible with all H&B flashing products
• Provides a secure and reliable termination point for flashing
• Flange allows for easy caulking and enhanced sealant adhesion
• Optional Foam-Tite Seal™ available to help inhibit moisture infiltration
• Factory-installed Foam-Tite Seal™ helps seal small voids between the termination bar and irregular surfaces, offering added protection against water penetration

NOTE

• Alternate styles available: T1
• Foam-Tite Seal™ available: specify T2-FTS when ordering
• This product may be shipped on a pallet due to the length

PATENTS

• U.S. Pats. No. 6,945,000
• Patents Pending
