Hohmann & Barnard DP - Drip Plates/Edges (25 Pieces/Box)

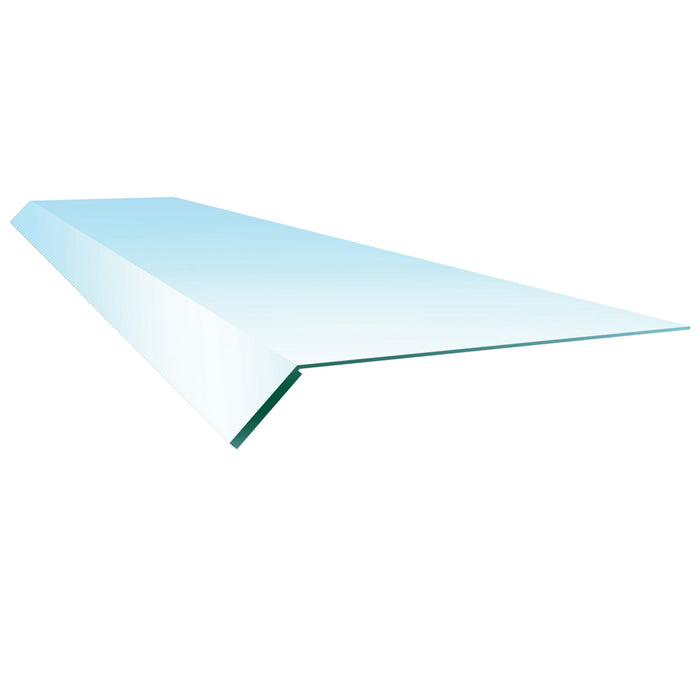

STANDARD DRIP PLATE

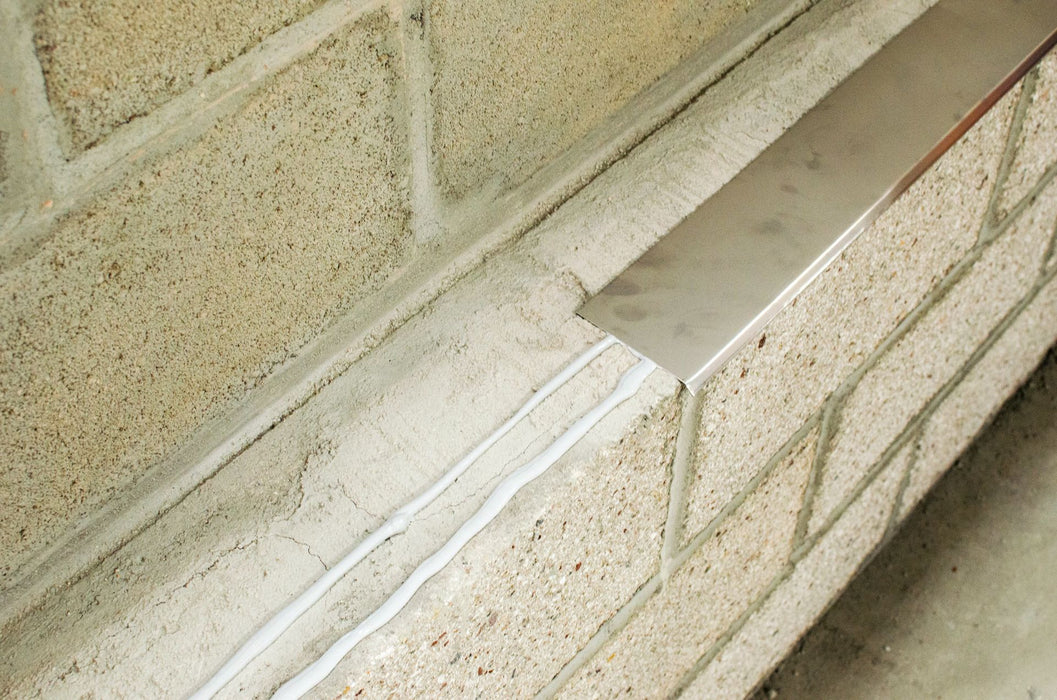

Our Standard Drip Plate is furnished with a smooth, factory-formed hemmed edge for installation safety and uniform appearance. It is compatible with all H&B flashing products and is used for draining on lip brick conditions.

FEATURES

• Factory-formed hemmed edge for safety and uniform appearance
• Compatible with all H&B flashing products
• Used for draining on lip brick conditions
• Each piece is 8' long
• Sold in boxes of 200' or 25 pieces

DIMENSIONS/GAUGES

• Available in 1-1/2” or 3” wide (other widths available on request)

AVAILABLE FINISHES

• Fabricated from Type 304 Stainless Steel
• Also available in copper and lead-coated copper

NOTE

• U.S. Pat. No. 6,584,746. Other Patents Pending
• H&B sources Stainless Steel from a variety of vendors. Per the International Stainless Steel Forum, Stainless Steel objects have an average of 60% recycled content.
• Foam-Tite™ Seal and Flash-Adhere™ Adhesive Strip are compatible with ALL types of flashing.
• H&B does NOT recommend the use of galvanized sheet as a drip plate/edge.
• This product may be shipped on a pallet due to the length.
• When cleaning the exterior veneer, follow the cleaner’s manufacturer recommendations for protecting metal.
