Hohmann & Barnard Adjusto-Tie Veneer Anchor – 175/Box

ADJUSTO-TIE VENEER ANCHOR

Adjusto-Tie Veneer Anchor Only, 2X-HOOK Sold Separately

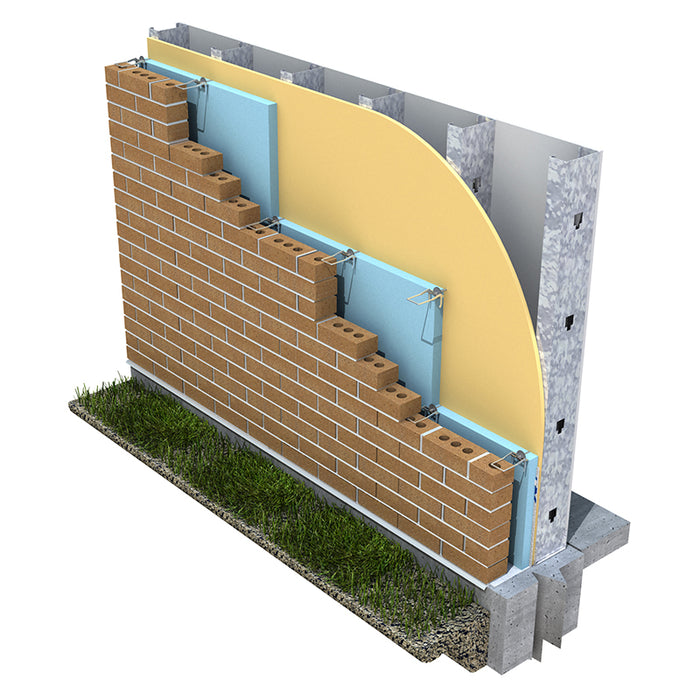

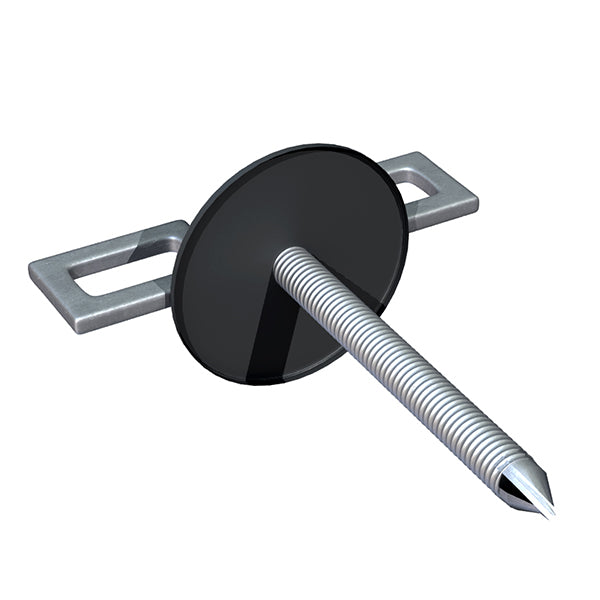

The Adjusto-Tie is an innovative, adjustable single-screw veneer tie designed for metal stud construction. This anchor features a factory-installed EPDM washer, which secures rigid insulation and/or gypsum sheathing to metal studs. With its versatile design, it is ideal for a variety of wall sizes and insulation thicknesses.

FEATURES

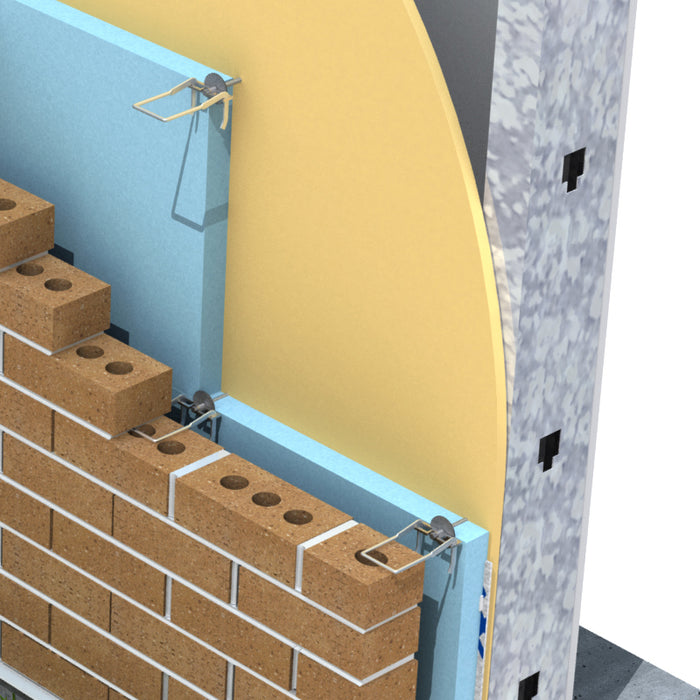

• Adjustable design: Use one anchor for multiple wall sizes, with projecting wings that accept a standard or seismic hook and spin to quickly orient pintles/hooks parallel to the masonry joint.
• Fully threaded shaft: Accommodates different insulation thicknesses by simply spinning the wing for fine adjustments.
• Quick installation: Fabricated with a 5/16" hex head for easy installation using a standard hex socket.
• Versatile use: Excellent for non-conventional sheathings like plywood and composite insulation boards against steel studs.
• #12 screw integrated into anchor.

AVAILABLE FINISHES

• Polymer Coated

BACKUP TYPE

• Metal Stud

DIMENSIONS

• 3 1/4" anchor (fits 5/8", 1", 1 1/2", 1 5/8" wallboard + insulation)
• 4 1/2" anchor (fits 2", 2 1/8", 2 1/2", 2 5/8", 3", 3 1/8" wallboard + insulation)
• 5 1/2" anchor (fits 3 1/2", 3 5/8", 4", 4 1/8", 4 5/8" wallboard + insulation)

NOTES

• H&B recommends 16” x 16” spacing
• 2X-HOOK (sold separately) can be installed with legs pointing up or down
• Minimum Airspace Requirement: 1"
• Adjusto-Tie: U.S. Patent No. 7,415,803
• 2X-Hook: U.S. Patent No. 8,613,175

For easy installation, adjustability, and compatibility with multiple wall types, the Adjusto-Tie Veneer Anchor is a highly effective solution for your masonry projects.
