Hohmann & Barnard BL-407 Anchor (250 Pieces/Box)

BL-407 VENEER ANCHOR

⏳ Made-to-Order Item
Typical production lead time: 3-4 weeks

BL-407 Anchor Only, Vee Byna Tie Sold Separately

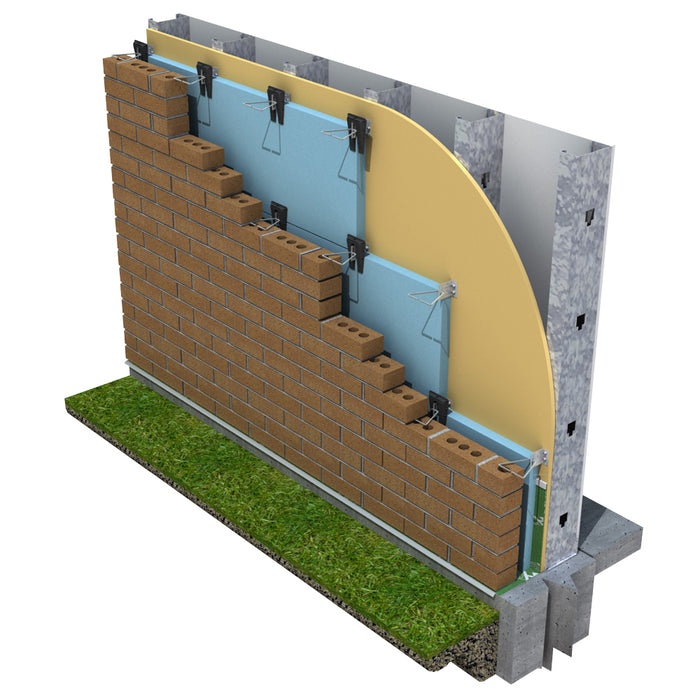

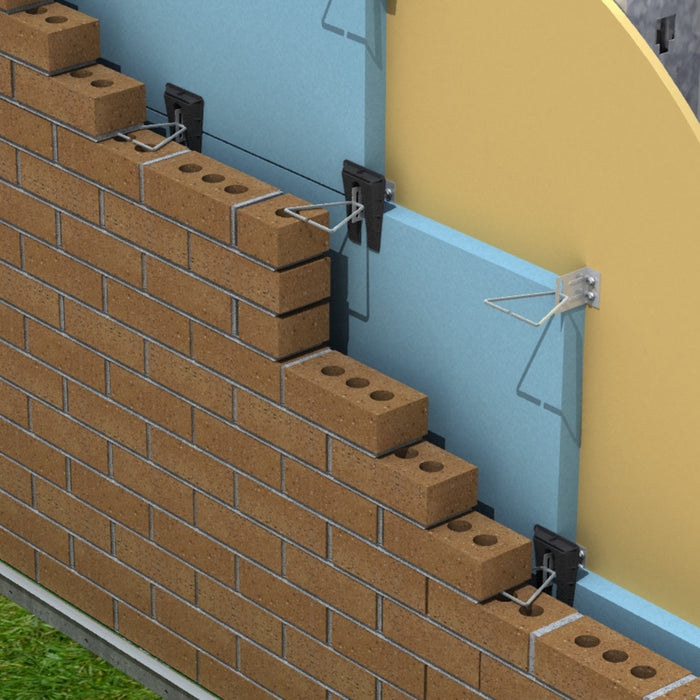

The BL-407 is a veneer anchor designed to provide exceptional adjustability, strength, and corrosion resistance for masonry veneer applications. It offers a positive connection with high stiffness and test-rated performance, making it ideal for various construction and masonry projects.

FEATURES

• Adjustable: The BL-407 backplate accommodates a variety of insulation thicknesses, ensuring flexibility for different project requirements.
• Strength and stiffness: Designed for durability, this system provides reliable performance in a wide range of masonry applications.
• Corrosion resistance: Available in hot-dip galvanized and Type 304 stainless steel, with Type 316 as an optional finish for maximum protection.
• Positive connection: Provides a secure tie between masonry and substrate.

AVAILABLE FINISHES

• Hot-Dip Galvanized
• Type 304 Stainless Steel
• Type 316 Stainless Steel (Contact sales for pricing and availability)

DIMENSIONS/GAUGES

• Gauge: 16
• Backplate accommodates insulation thicknesses:
  • 0", 1" (25.4 mm), 1-1/2" (38 mm), 2" (51 mm), 2-1/2" (64 mm), 3" (76 mm), 3-1/2" (89 mm), and 4" (102 mm)

PACKAGING

• Sold in boxes of 250 pieces

NOTES

• Optional Wedge-Lok insulation washer available
• 523 Brass Expansion Bolt is recommended for fastening to concrete, block, brick, and mortar joints.
• The combination of the 523 Brass Expansion Bolt and BL-407 plate is available as the BL-5407 Repair and Restoration Anchor (also known as the Brick-Lok® System) for refacing or veneering existing masonry or concrete structures.
• This product replaces the SBRA anchor.

RESOURCES

• Submittal
• Safety Data Sheet Hot Rolled Carbon Steel
• Safety Data Sheet Galvanized Steel Sheet
• Safety Data Sheet Bright Basic Wire
• Safety Data Sheet Hot-Dip Galvanized Coating
• Safety Data Sheet Stainless Steel
• LEED BL-407
