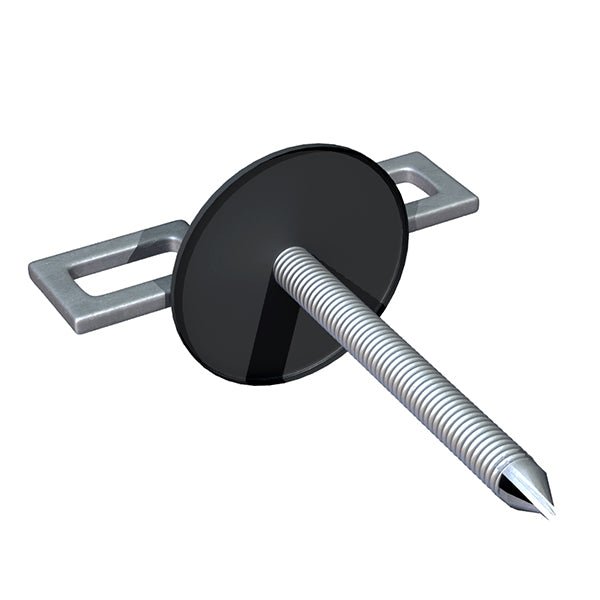

Hohmann & Barnard Adjusto-Tie Adjustable Veneer Anchor (175 Pieces/Box)

***VENEER ANCHOR ONLY, 2X PINTLE HOOK SOLD SEPARATELY***

Adjusto-Tie an innovative single screw veneer tie for metal stud construction with a factory-installed EPDM washer to secure rigid insulation and/or gypsum sheathing to metal studs.

• Use one anchor for multiple wall sizes
• Projecting "wings" accept a standard or seismic hook and spin to allow the installer to quickly orient pintles/hooks parallel to masonry joint
• Fabricated with a 5/16” hex head, install with a standard hex socket
• Fully threaded shaft for additional adjustment, accommodate various insulation thicknesses by spinning the wing

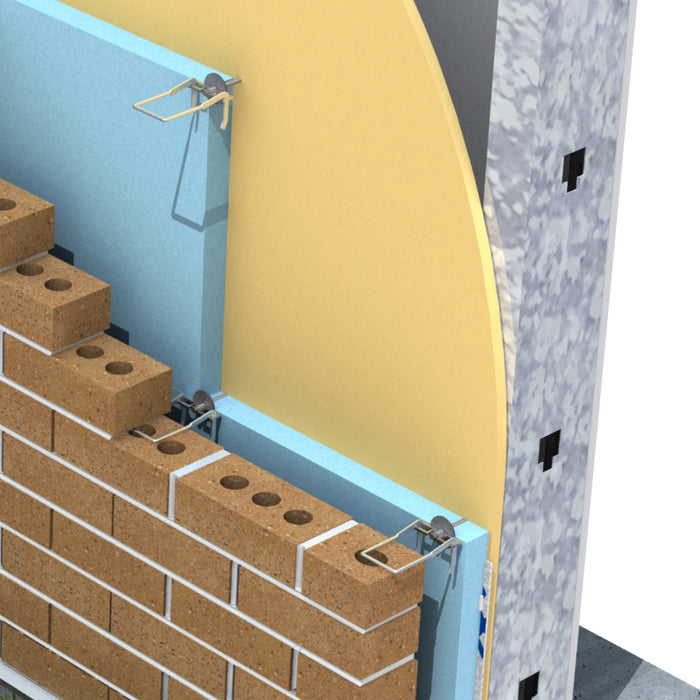

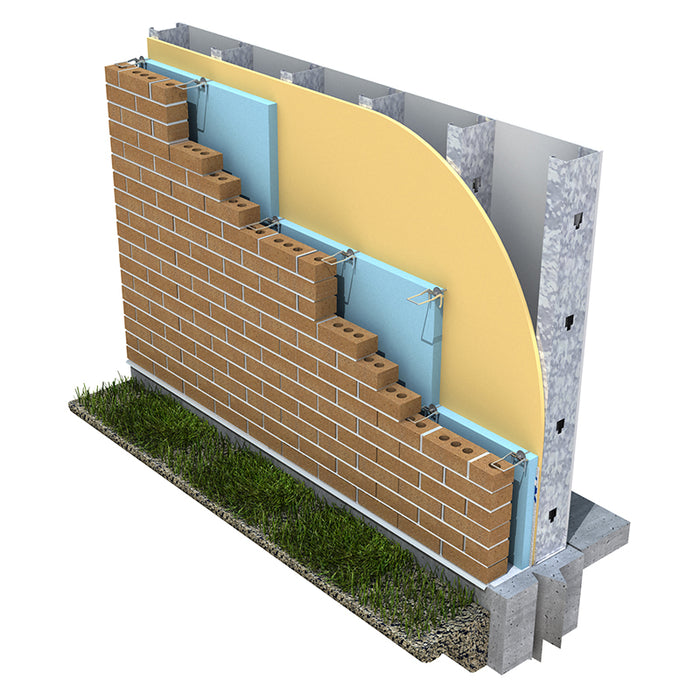

• Excellent for non-conventional sheathings (plywood/composite insulation board) against steel studs
• #12 screw integrated into anchor
• Adjustable full thread veneer anchor

AVAILABLE FINISHES

• Polymer Coated

DIMENSIONS

(thickness of 5/8" wallboard and/or insulation)

• 3 1/4" anchor (fits 5/8", 1", 1 1/2", 1 5/8")
• 4 1/2" anchor (fits 2", 2 1/8", 2 1/2", 2 5/8", 3", 3 1/8")
• 5 1/2" anchor (fits 3 1/2", 3 5/8", 4", 4 1/8", 4 5/8")

NOTES

• H&B recommends 16” x 16” spacing
• 2X-HOOK CAN BE INSTALLED WITH LEGS POINTING UP OR DOWN.
• Adjusto-Tie: US Pat. No. 7,415,803
• 2X-Hook: U.S. Pat. No. 8,613,175

See Submittal Here
