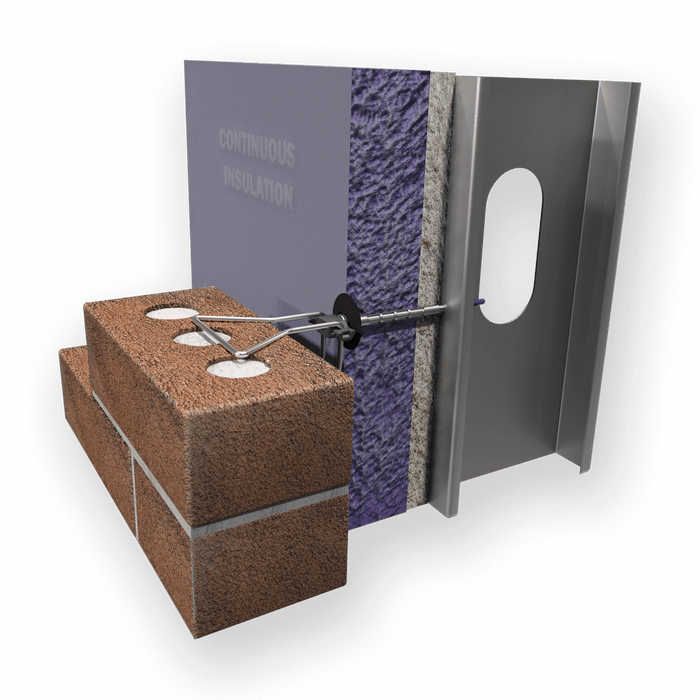

The Pos-I-Tie® ThermalClip® (Part No. 75-TC) is an innovative thermal break accessory designed for use with the Original Pos-I-Tie® Veneer Anchoring System. It snaps directly into the barrel loop of the Pos-I-Tie® anchor to separate the wire tie from the barrel screw, significantly reducing thermal bridging and preventing galvanic corrosion between dissimilar metals. The ThermalClip® has passed NFPA 285 testing as part of the CavityComplete® Wall System and supports sustainable, energy-efficient wall assemblies.

Features & Benefits

• Thermal break design: Snap-on clip isolates the wire tie from the barrel screw to reduce thermal transfer

• Dissimilar metals barrier: Enables safe use of stainless-steel ties or stone anchors with ZAMAC barrel screws

• Vertical flexibility: Allows 1-1/4" of vertical adjustment above and below the barrel screw

• Load transfer: Supports both compression and tension loads into the structural backup

• Fast installation: Snap-fit system saves time on the wall

• Low conductivity: Plastic body transfers heat 100x less than metal

• Flame resistant: UL 94 V-0 rated for high fire safety

• Durability: Performs reliably in freeze-thaw cycles and mortar exposure

• Corrosion protection: Prevents galvanic reaction from mixed metals

• Tie compatibility: Use with #282-N Double Pintle Wire Ties or ThermalClip® Stone Anchors

Compatibility

• For use with the Original Pos-I-Tie® Veneer Anchoring System

• Use with #282-N Pintle Wire Ties or ThermalClip® Stone Anchors
