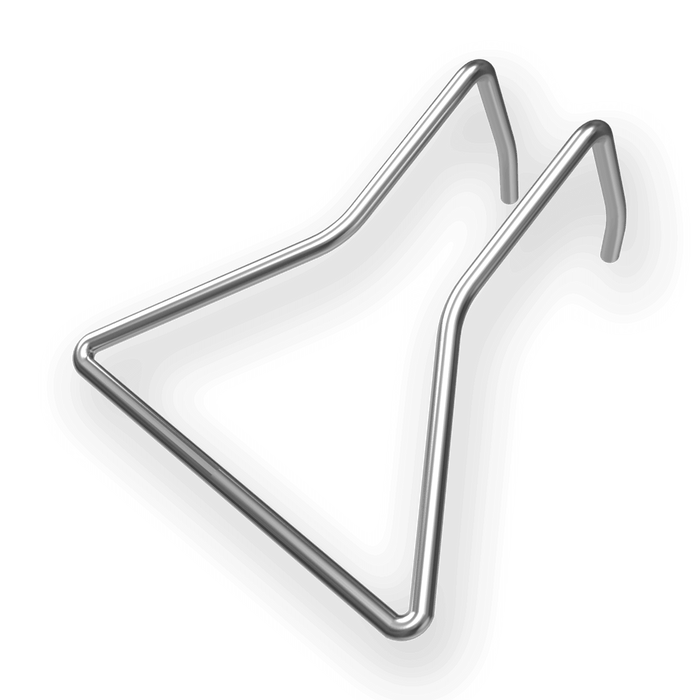

Heckmann Building Products Pintle Wire Tie for ThermalClip® (250 Pieces/Box)

ENGINEERED PINTLE TIE FOR USE WITH THE POS-I-TIE® THERMALCLIP® SYSTEM

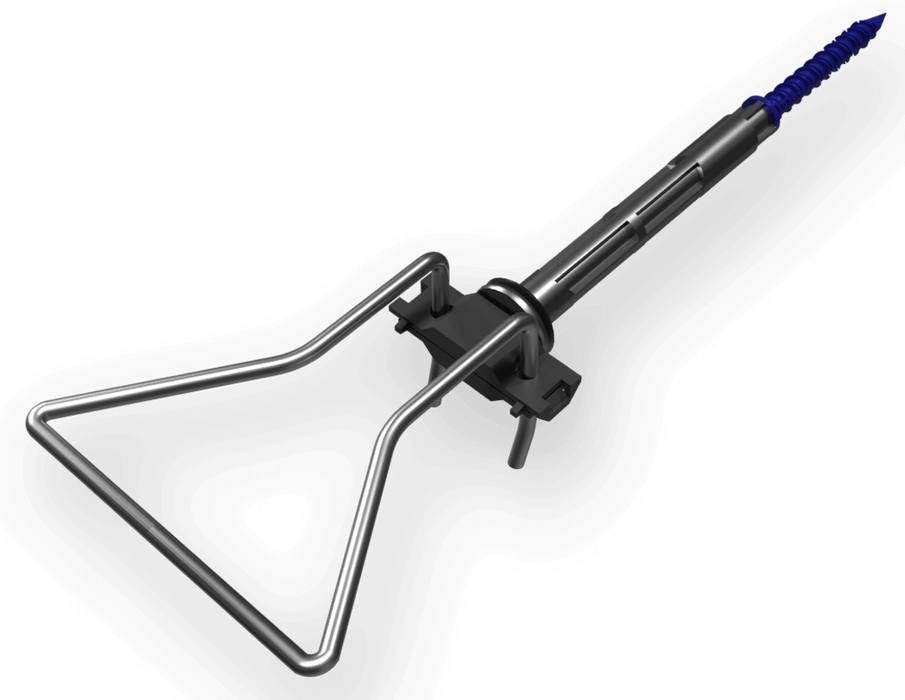

The Pintle Wire Tie (Part No. 282-N) is designed specifically for use with the Pos-I-Tie® ThermalClip® system. Made from 3/16" diameter wire, it provides reliable vertical adjustment of 1-1/4" above and below the ThermalClip® plane, accommodating variations in veneer coursing. This tie snaps securely into the ThermalClip® for a strong, thermally broken masonry anchoring system.

FEATURES AND BENEFITS

• ThermalClip® compatibility: Designed to work exclusively with the Pos-I-Tie® ThermalClip®.

• Vertical flexibility: Provides 1-1/4" of vertical adjustment for easier veneer alignment.

• Corrosion-resistant options: Available in stainless steel or hot-dip galvanized finishes.

• Standard lengths: Available in 3", 3-1/2", 4", and 5" sizes.

• Custom lengths available: Special sizes offered to meet job-specific requirements.

MATERIALS AND FINISHES

• Stainless steel:

  • ASTM A580, AISI Type 304 (Type 316 available upon request)

• Hot-dip galvanized:

  • ASTM A153 Class B-2 (1.50 oz/ft² or 0.46 kg/m²)

  • Wire: ASTM A1008/A1008M

  • Structural steel: ASTM A36/A36M-08

PACKAGING

• Quantity per box: 250 pieces per box

RESOURCES

• Submittal
• 213 282 Specification
• Stainless Steel Products SDS
• Plain Steel Bars Rounds SDS
• Mill Galvanized Wire SDS
• Hotdip Galvanized SDS
