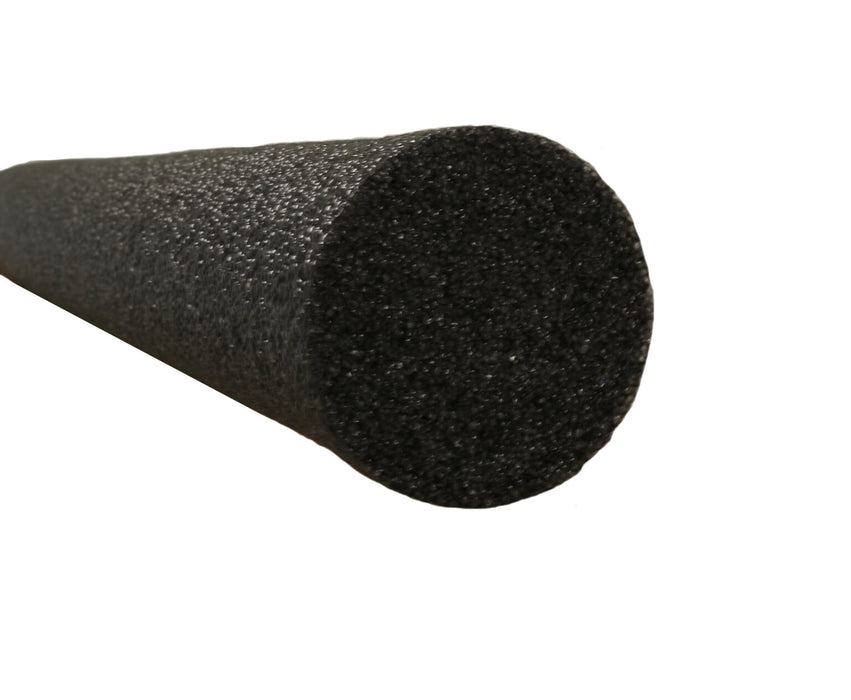

Titan Foam Soft Cell Backer Rod
SKU IEAE038MB
Original price
$23.84
-
Original price
$411.00
Original price
$32.05
$23.84
-
$411.00
Current price
$32.05
200.0ft | $0.16 / ft
Ships in 1–2 business days

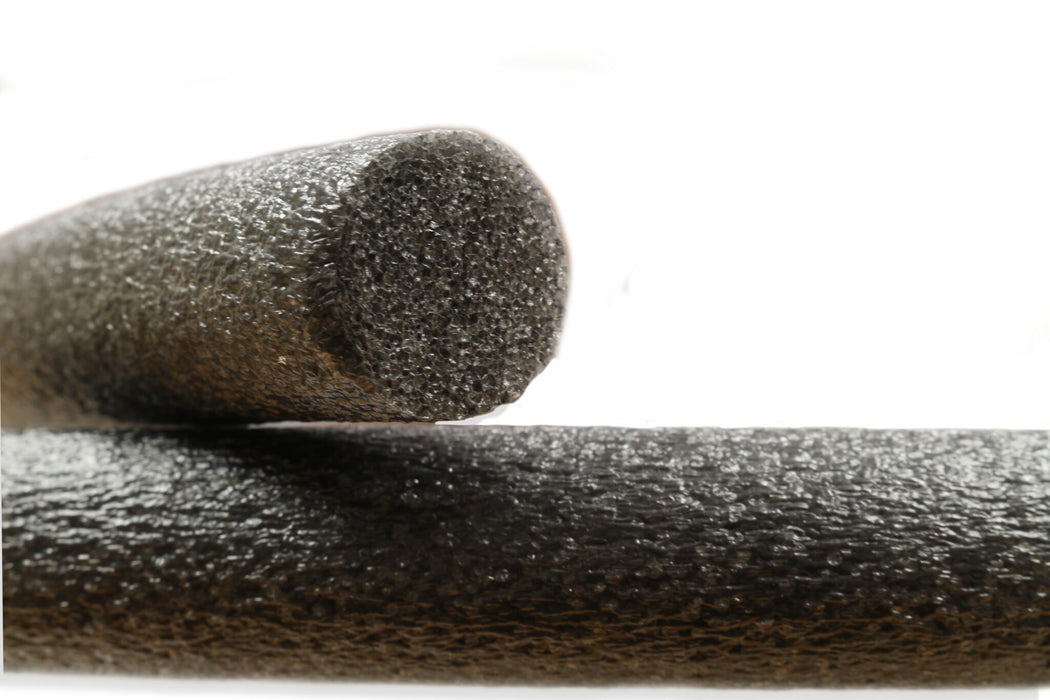

TITAN FOAM™ BI-CELLULAR BACKER ROD – NON-GASSING POLYETHYLENE SEALANT BACKING
Handle irregular joints with confidence using TITAN FOAM™ Bi-Cellular Backer Rod. Designed for specialty applications, this non-gassing, flexible foam provides consistent sealant depth and the ideal hourglass configuration for long-term joint performance.
KEY FEATURES
- Controls sealant depth: ensures proper joint design and reduces sealant waste
- Non-gassing performance: will not out-gas when punctured per ASTM standards
- Bi-cellular structure: combines flexibility with an impervious outer skin
- Moisture resistant: outer skin prevents water penetration
- Flexible and pliable: ideal for irregular and varying joint widths
- High recovery: maintains shape with excellent compression recovery

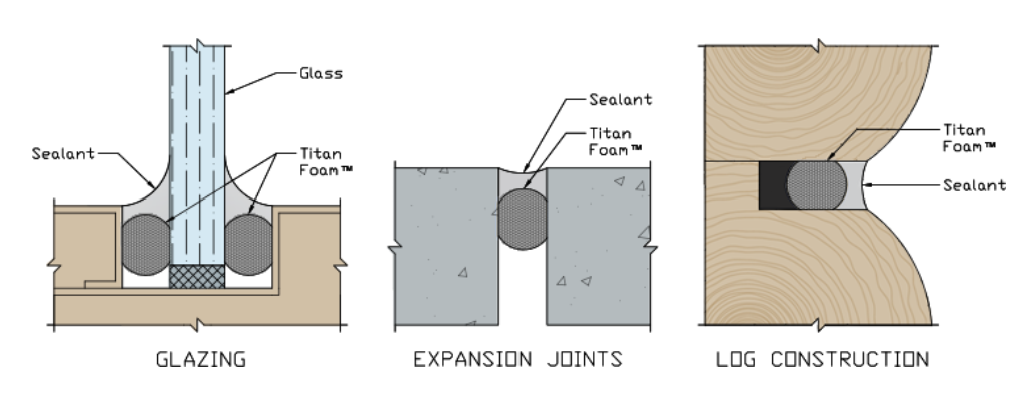

APPLICATIONS
- Concrete expansion and contraction joints
- Curtain wall systems
- Parking decks and pavements
- Bridge and highway construction
- Window glazing
- Log home chinking
PRODUCT DETAILS
- Material: extruded bi-cellular polyethylene foam
- Color: grey
- Structure: soft, flexible core with impervious outer skin
- Performance: non-gassing when punctured per ASTM C1253
PHYSICAL PROPERTIES
- Density: 1.8 – 2.5 lb/ft³ (ASTM D1622)
- Out-gassing: none (ASTM C1253)
- Compression recovery: 95% minimum (ASTM D5249)
- Tensile strength: 39–50 psi (ASTM D1623)
- Temperature range: -90°F to 210°F (ASTM D5249)
- Water absorption: < 0.03 g/cc (ASTM C1016 – Proc. B)
AVAILABLE OPTIONS
| SIZE | LENGTH | PACKAGING TYPE | DETAILS |
|---|---|---|---|
| 3/8" | 200' | Mini Carton | 1 spool per carton |
| 3/8" | 3600' | Standard Carton | 2 spool per carton |
| 5/8" | 100' | Mini Carton | 1 spool per carton |
| 5/8" | 1550' | Standard Carton | 2 spools per carton |
| 7/8" | 100' | Mini Carton | 1 spool per carton |
| 7/8" | 850' | Standard Carton | 2 spools per carton |
| 1-1/8" | 75' | Mini Carton | 1 spool per carton |
| 1-1/8" | 500' | Standard Carton | 1 spool per carton |
| 1-1/2" | 420' | Super Carton | 6' lengths |
| 2" | 252' | Super Carton | 6' lengths |
| 3" | 102' | Super Carton | 6' lengths |
| 4" | 54' | Super Carton | 6' lengths |
INSTALLATION NOTES
- Install under 25% minimum to 50% maximum compression
- Ensure joints are clean, dry, and free of contaminants
- Follow sealant manufacturer recommendations for depth and application
COMPATIBILITY
- Compatible with silicones, polyurethanes, acrylics, polysulfides, and butyl sealants
LIMITATIONS
- Do not use with hot-applied sealants
- Do not puncture, over-compress, or stretch during installation
TECHNICAL SUPPORT
- Contact manufacturer for project-specific guidance, engineering design, and technical assistance
