3Gen Masonry Products Termination Bar – Type F (Flat) (8') – Stainless Steel or Aluminum Flashing Termination Bar (200'/Box)

TERMINATION BAR (FLAT) PROVIDES A STRONG, CLEAN TERMINATION FOR FLASHING SYSTEMS, SECURING MEMBRANES TO THE SUBSTRATE WITHOUT A LIP PROFILE

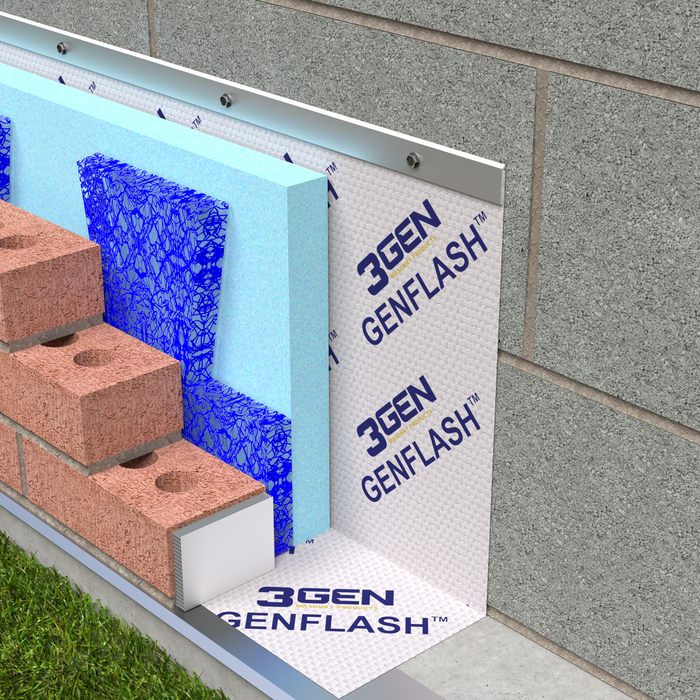

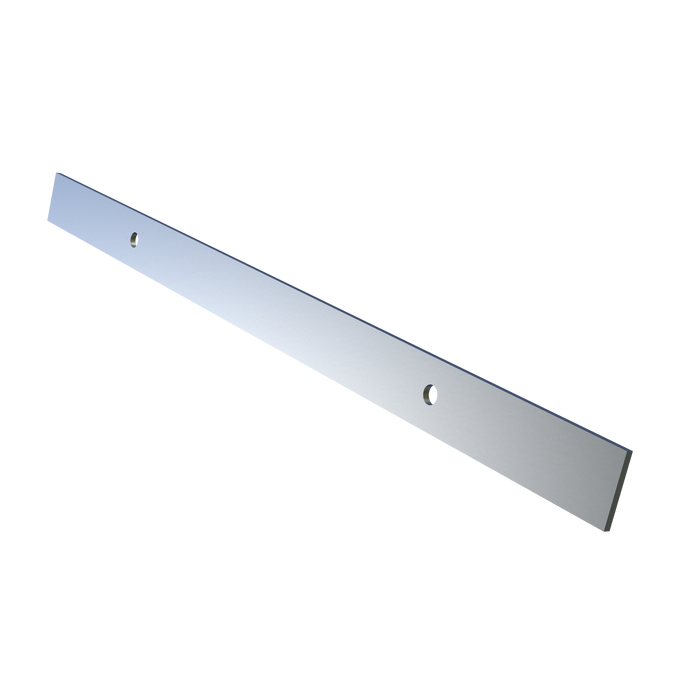

Termination Bar – Type F (Flat) is designed to mechanically secure the top edge of surface-mounted flashing to the substrate, creating a reliable and watertight termination. Featuring a flat profile, this bar is ideal for applications where a lip is not required and a clean, low-profile finish is preferred. Compatible with all flashing products, it is a critical component in complete flashing and waterproofing systems.

FEATURES

• Mechanically Secures Flashing At Termination Points
• Flat Profile For Clean, Low-Profile Installation
• Pre-Punched Holes For Consistent Fastening
• Compatible With All Flashing Systems
• Available In Stainless Steel Or Aluminum
• Corrosion Resistant For Long-Term Performance

USES

• Flashing Terminations
• Waterproofing Systems
• Masonry Cavity Wall Applications
• Window And Door Flashing
• Commercial And Residential Construction

SIZES / OPTIONS

• Length: 8'
• Size: 1/8” x 1”
• Packaging: 25 Pieces or 200 Linear Feet Per Box

Material Options:

• Stainless Steel (Type 304)
• Aluminum
• Hole Size: 9/32” Diameter
• Hole Spacing: 8” On Center

SPECIFICATIONS

INSTALLATION NOTE

• Recommended fastening is 8” on center
• Apply sealant along the top edge for proper termination and moisture protection

SUSTAINABILITY

• Stainless Steel:
  • 68% Post-Consumer
  • 18% Post-Industrial
• Aluminum:
  • 60% Post-Consumer
  • 20% Post-Industrial

RESOURCES

• Submittal Sheet
• SDS Aluminum Sheet
• LEED Aluminum Sheet
• SDS Stainless Sheet
• LEED Stainless Sheet
• Product Substitution Request Form
