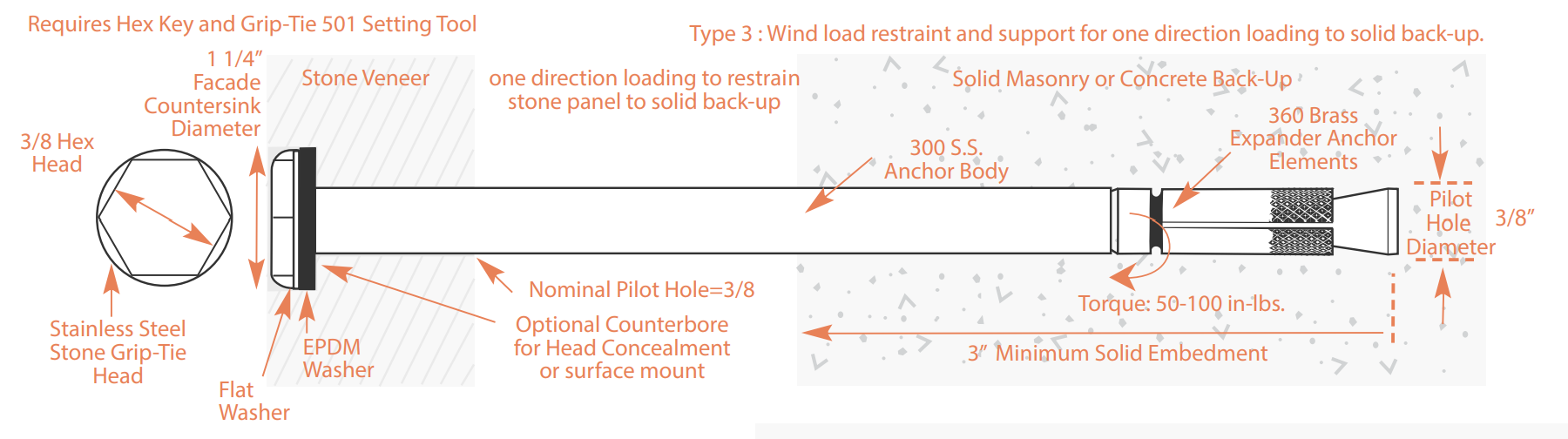

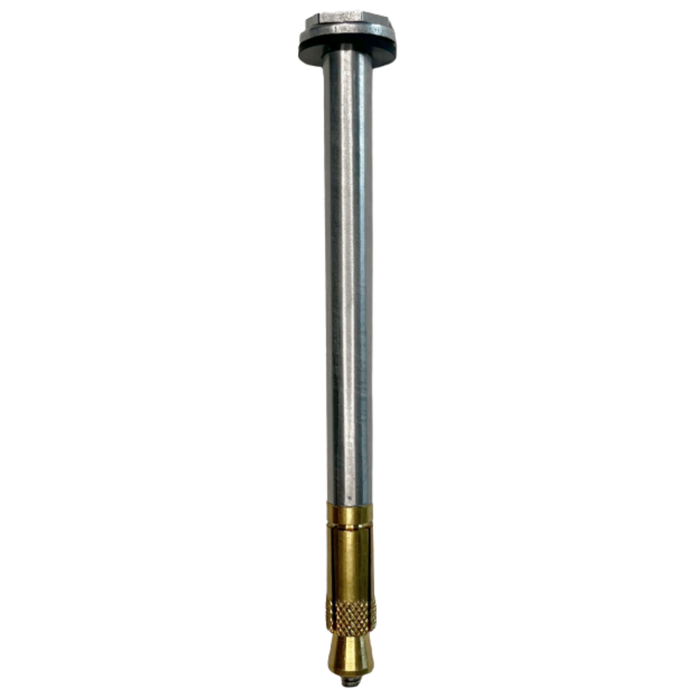

The PROSOCO Stone Grip-Tie 6600-3 Series is a 3/8"-diameter, torque-activated Type 3 anchor designed to re-anchor unstable dimensional stone and precast panel veneers less than 3 inches thick to solid and hollow backup walls. It provides one-direction stone wind-load restraint and gravity support while creating a positive mechanical connection between the veneer and parent structure.

Manufactured with corrosion-resistant stainless steel and brass components, the Stone Grip-Tie provides dependable, long-term performance. It offers a cost-effective alternative to removing and resetting existing veneer panels and requires no grout or epoxy resin. The anchor head can be surface-mounted or counterbored for concealment.

Features & Benefits

• 3/8"-diameter, torque-activated Type 3 anchoring system
• Re-anchors dimensional stone and precast veneers less than 3 inches thick
• Suitable for solid and hollow backup applications
• Provides one-direction stone wind-load restraint and gravity support
• Creates a positive mechanical connection to the parent structure
• More effective and predictable than non-mechanical anchoring methods
• Installs using standard drilling techniques and ordinary hand tools
• Requires no grout or epoxy resin
• Can be surface-mounted or counterbored for head concealment
• Manufactured with corrosion-resistant materials for lasting performance
• Cost-effective alternative to removing and resetting existing panels

Required Installation Tools

• Hex key
• PROSOCO Grip-Tie 501 Setting Tool

Hollow Backup Applications

For hollow backup applications, contact Masonry Direct Customer Service or your local PROSOCO representative for additional engineering support before ordering or installation.
