The PROSOCO Stone Grip-Tie 6300-2LD Series is a light-duty anchoring system designed to re-anchor unstable dimensional stone and precast panel veneers less than 3 inches thick to metal or wood stud backup. The system provides wind-load restraint while creating a positive mechanical connection between the existing veneer and the stud backup.

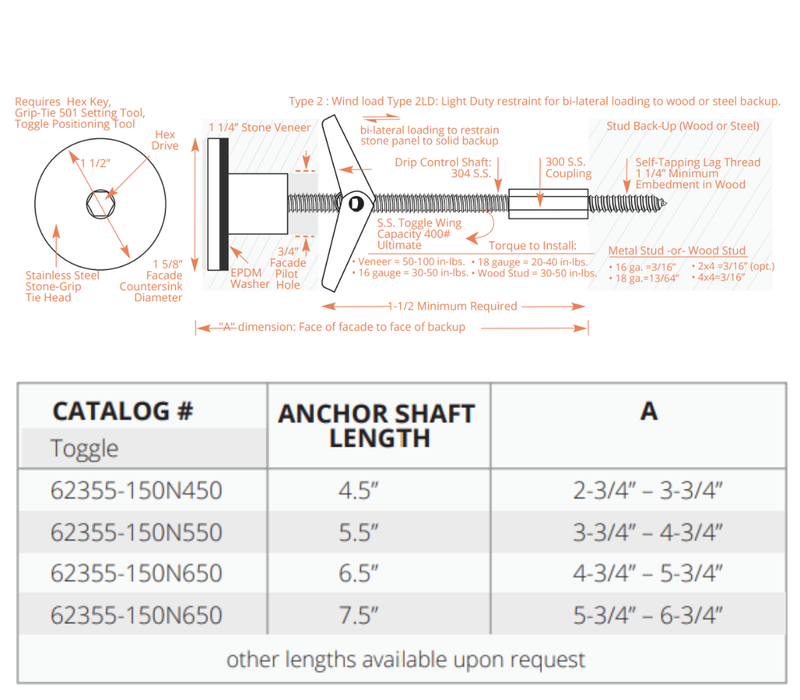

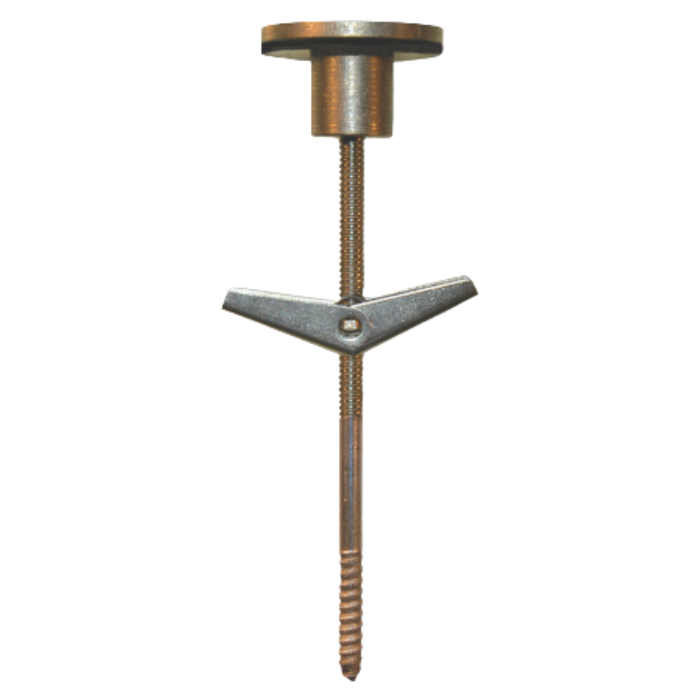

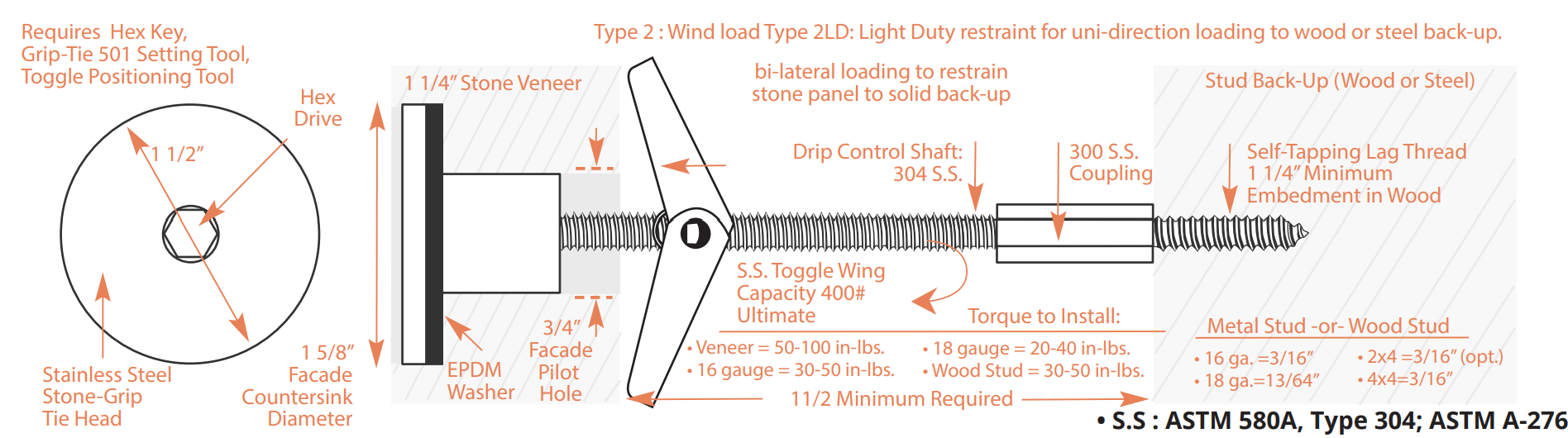

The 6300-2LD Series combines a stainless steel toggle wing with a self-tapping lag-thread connection. The toggle wing has a rated ultimate capacity of 400 lb, while the lag thread provides direct attachment to 16- or 18-gauge metal studs and dimensional wood studs.

Manufactured from corrosion-resistant materials, the system provides dependable, long-term performance without requiring grout or epoxy resin. The connection can be countersunk and concealed, surface-mounted or powder-coated to complement the existing veneer.

Features & Benefits

• Light-duty anchoring system for dimensional stone and precast veneers
• Re-anchors veneer panels less than 3 inches thick
• Designed for attachment to metal or wood stud backup
• Stainless steel toggle wing rated at 400 lb ultimate capacity
• Self-tapping lag thread connects directly to the stud backup
• Compatible with 16- and 18-gauge metal studs
• Compatible with dimensional wood studs
• Requires no grout or epoxy resin
• May be countersunk and concealed or surface-mounted
• Manufactured from corrosion-resistant materials for lasting performance
• Cost-effective alternative to removing and resetting existing panels

Required Installation Tools

• Hex key
• PROSOCO Grip-Tie 501 Setting Tool
• Toggle Positioning Tool
