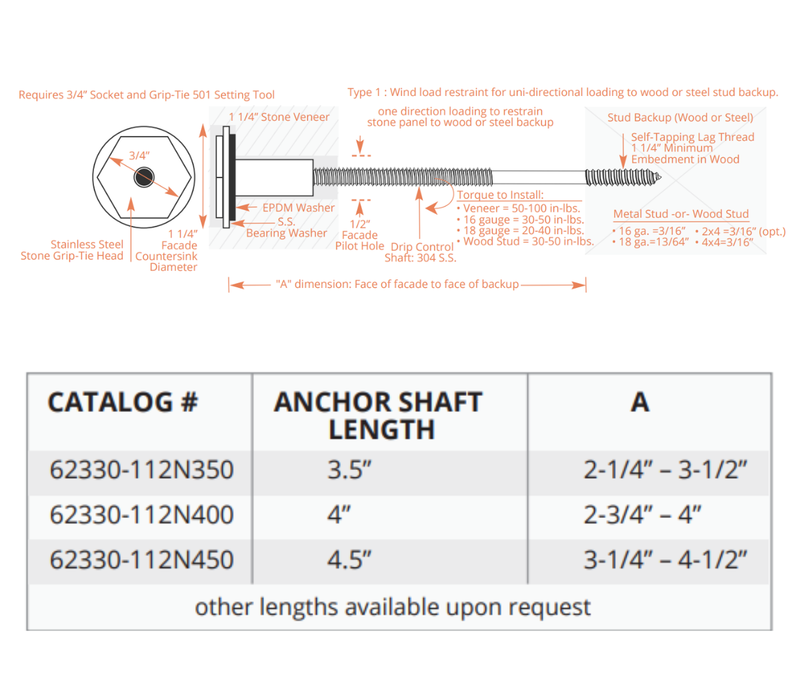

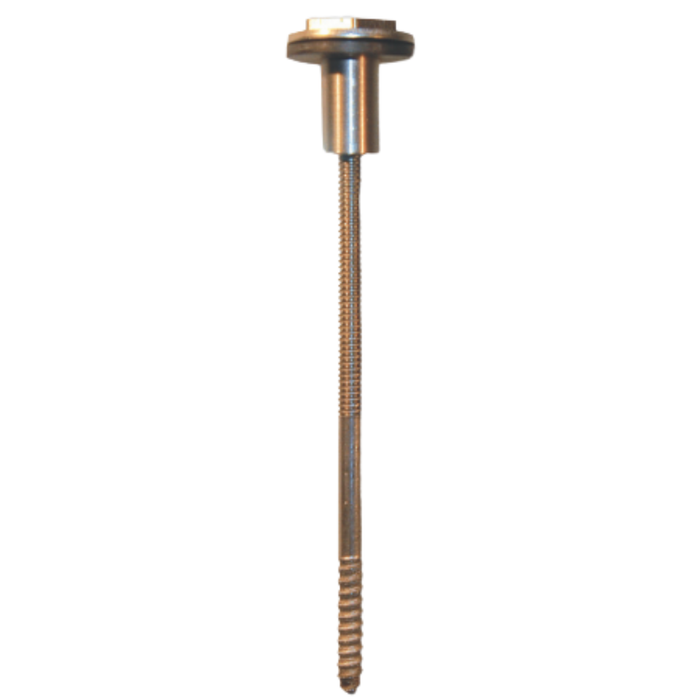

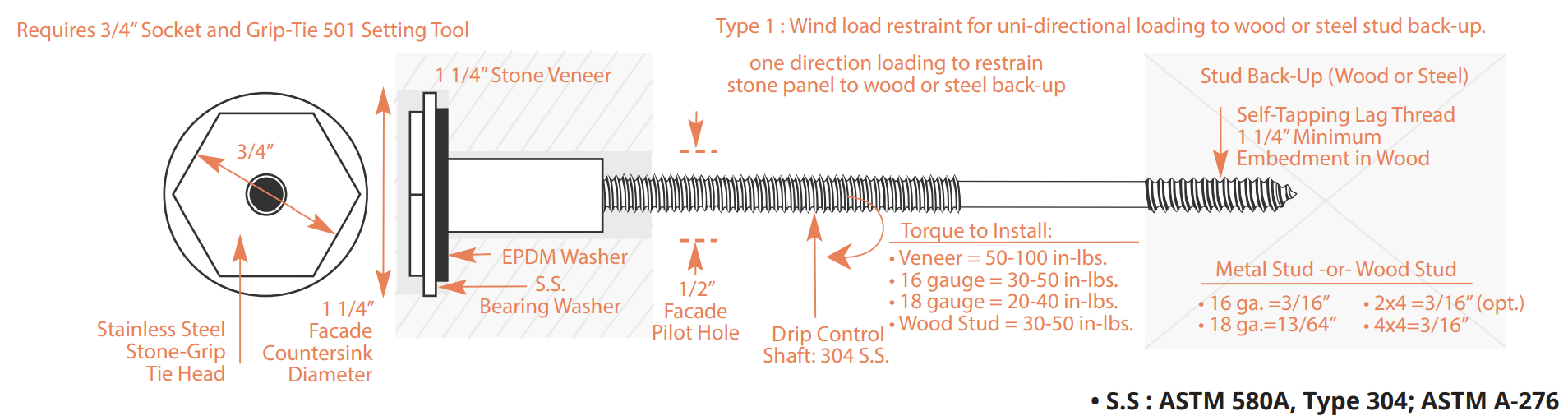

The PROSOCO Stone Grip-Tie 6300-1 Series is designed to re-anchor unstable dimensional stone and precast panel veneers less than 3 inches thick to metal or wood stud backup. This Type 1 anchor provides wind-load restraint for one-direction loading, creating a positive mechanical connection between the existing veneer and the stud backup.

The self-tapping lag-thread connection is compatible with 16- or 18-gauge metal studs and dimensional wood studs. Manufactured from corrosion-resistant materials, the Stone Grip-Tie provides dependable, long-term performance while offering a cost-effective alternative to removing and resetting existing panels.

Installation requires no grout or epoxy resin. The connection can be countersunk and concealed, surface-mounted or powder-coated to complement the existing veneer.

Features & Benefits

• Re-anchors dimensional stone and precast veneers less than 3 inches thick
• Designed for attachment to metal or wood stud backup
• Type 1 anchor provides wind-load restraint for one-direction loading
• Self-tapping lag thread connects directly to the stud backup
• Compatible with 16- and 18-gauge metal studs
• Compatible with dimensional wood studs
• Requires no grout or epoxy resin
• May be countersunk and concealed or surface-mounted
• Manufactured from corrosion-resistant materials for lasting performance
• Cost-effective alternative to removing and resetting existing panels

Required Installation Tools

• 3/4" socket
• PROSOCO Grip-Tie 501 Setting Tool
