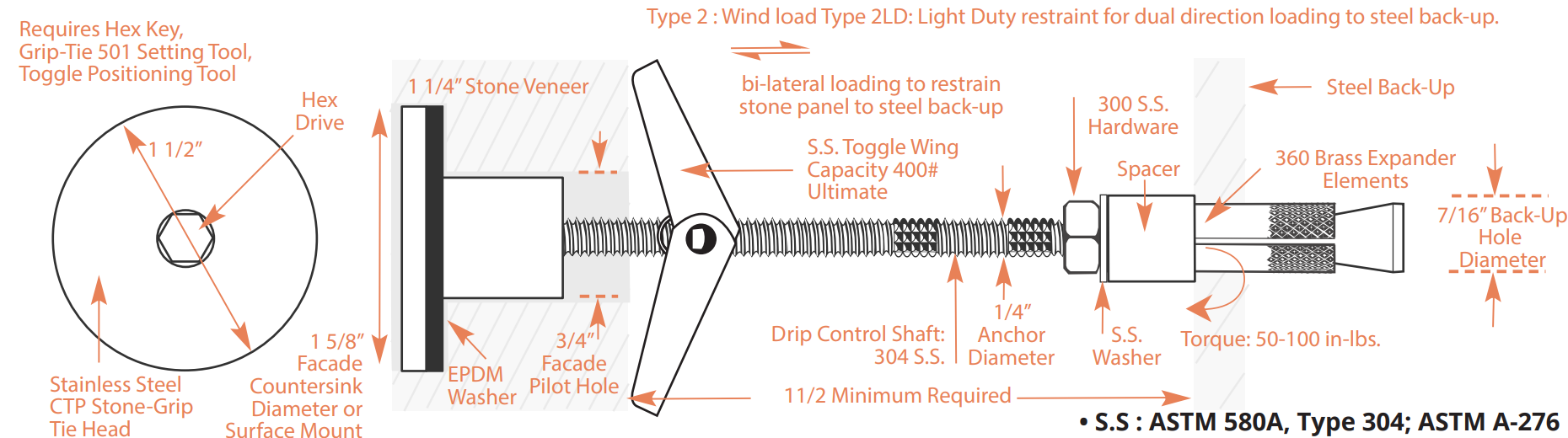

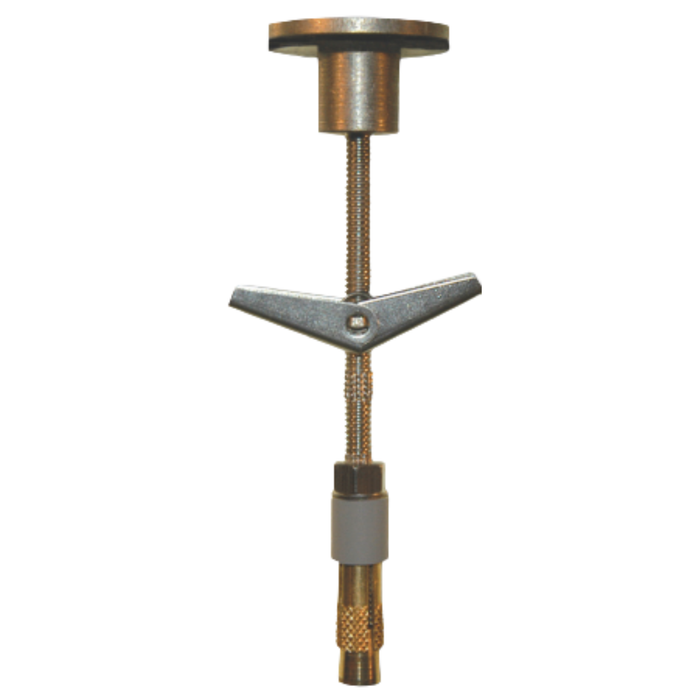

The PROSOCO Stone Grip-Tie 6200-2LD Series is a light-duty anchoring system designed to re-anchor unstable dimensional stone and precast panel veneers less than 3 inches thick to structural steel backup. This Type 2LD anchor provides wind-load restraint for bilateral or dual-direction loading, creating a positive mechanical connection between the existing veneer and the structural steel parent structure.

The 6200-2LD Series incorporates a stainless steel toggle wing with a rated ultimate capacity of 400 lb. Manufactured from corrosion-resistant materials, the system provides dependable, long-term performance while offering a cost-effective alternative to removing and resetting existing panels.

Installation requires no grout or epoxy resin. The connection can be countersunk and concealed, surface-mounted or powder-coated to complement the existing veneer.

Features & Benefits

• Light-duty anchoring system for dimensional stone and precast veneers
• Re-anchors veneer panels less than 3 inches thick
• Designed for attachment to structural steel backup
• Type 2LD anchor provides bilateral wind-load restraint
• Resists loading in two directions
• Stainless steel toggle wing rated at 400 lb ultimate capacity
• Creates a positive mechanical connection to the structural steel backup
• Requires no grout or epoxy resin
• May be countersunk and concealed or surface-mounted
• Manufactured from corrosion-resistant materials for lasting performance
• Cost-effective alternative to removing and resetting existing panels

Required Installation Tools

• Hex key
• PROSOCO Grip-Tie 501 Setting Tool
• Toggle Positioning Tool
