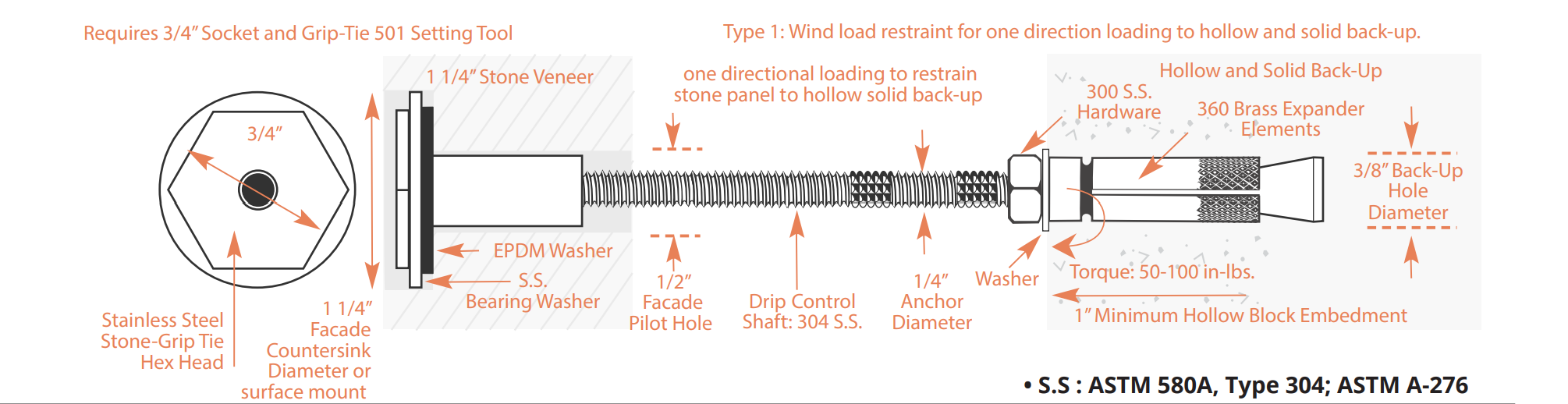

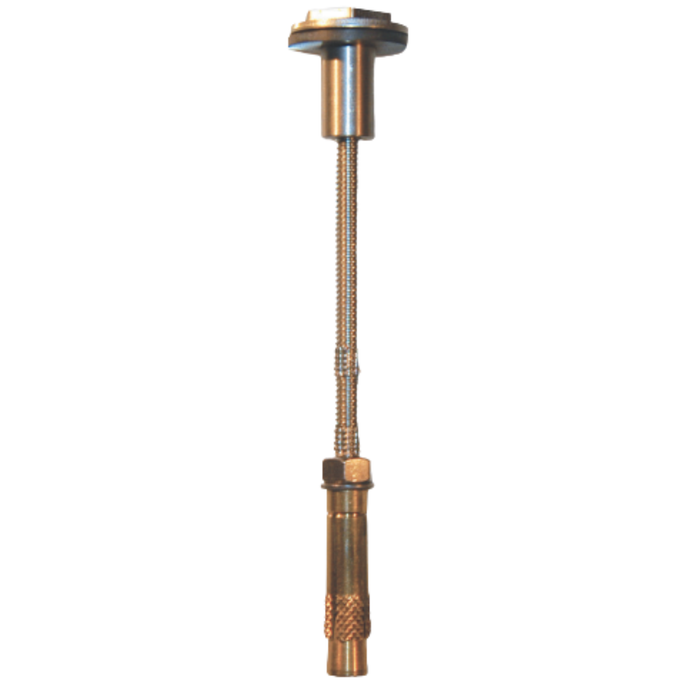

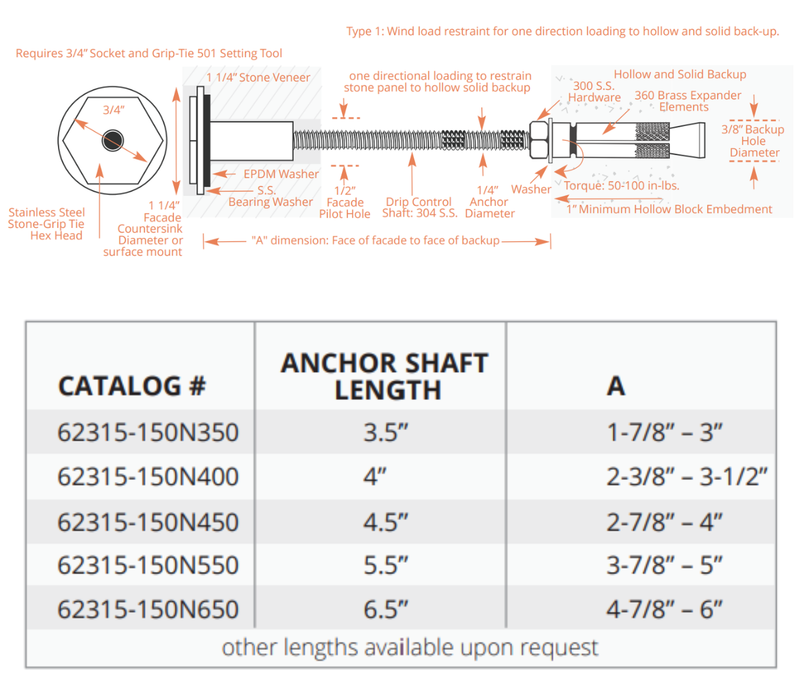

The PROSOCO Stone Grip-Tie 6100-1 Series is designed to re-anchor unstable dimensional stone and precast panel veneers less than 3 inches thick to hollow backup walls. This Type 1 anchor provides one-direction wind-load restraint by creating a positive mechanical connection between the existing veneer and the parent structure.

Manufactured from corrosion-resistant materials, the Stone Grip-Tie provides dependable, long-term performance while offering a cost-effective alternative to removing and resetting existing panels. Installation requires no grout or epoxy resin. The connection can be concealed with a matching stone plug or left exposed and powder-coated to complement the existing veneer.

Features & Benefits

• Re-anchors dimensional stone and precast veneers less than 3 inches thick
• Designed specifically for hollow backup walls
• Type 1 anchor provides one-direction wind-load restraint
• Creates a positive mechanical connection to the parent structure
• More effective and predictable than non-mechanical anchoring methods
• Installs using standard drilling techniques and ordinary hand tools
• Requires no grout or epoxy resin
• Connection can be concealed or face-mounted
• Manufactured from corrosion-resistant materials for lasting performance
• Cost-effective alternative to removing and resetting existing panels

Required Installation Tools

• 3/4" socket
• PROSOCO Grip-Tie 501 Setting Tool
