RE-ANCHORS EXISTING VENEERS TO BACKUP STRUCTURES

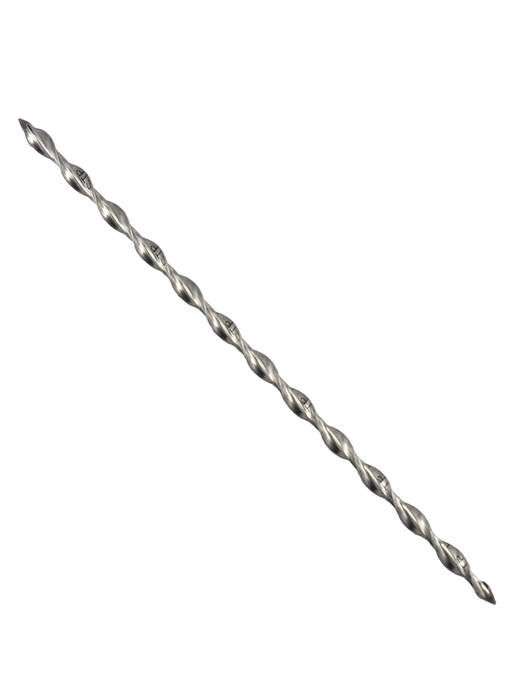

Stitch-Tie® by PROSOCO is a stainless steel helical pin that reattaches existing masonry facades to backup structures. These retrofit ties can stabilize veneers of brick, stone, masonry, or precast concrete that have missing or corroded wall ties. The process eliminates the need to tear down and replace existing facades, preserving the beauty and historical integrity of existing buildings.
BENEFITS
-
Type 304 stainless steel – Durable and corrosion resistant
-
Easy & fast installation – Installs in minutes without disrupting the masonry
-
Repairs are almost invisible – Leaves minimal evidence of the work
-
Doesn’t add tension between wythes – Spiral design eliminates pulling forces
-
Secures most building materials – Works with brick, stone, block, and more
-
Works in any weather – No adhesives or cure time required
FEATURES
-
Installs quickly in mortar joints with minimal disruption
-
Dry-sets without adhesives and conceals easily without visible scars
-
Functions in all weather conditions on most substrates
-
Threads into building materials with no need to clean pilot holes
- Type 304 stainless steel finish
OVERVIEW

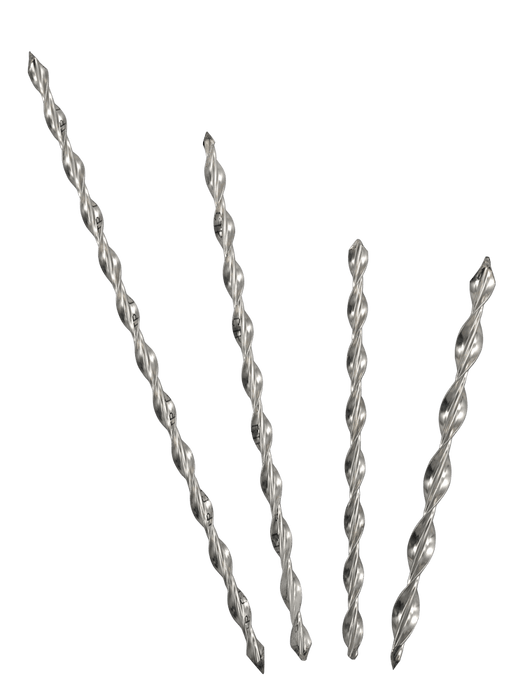

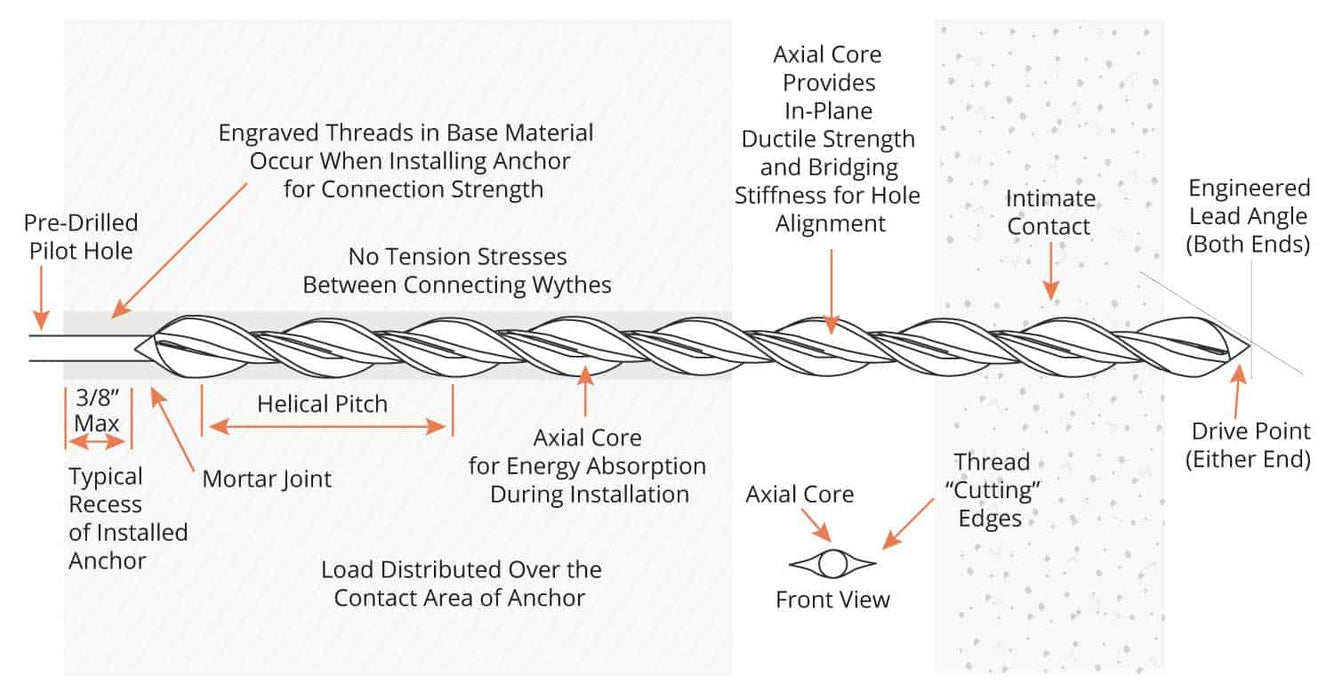

The Stitch-Tie® is a stainless steel pinning solution for re-anchoring existing veneers to the backup structure. Its helical shape provides a flexible in-plane connection while resisting out-of-plane loads in both tension and compression. Because Stitch-Tie anchors do not draw walls together, they avoid introducing unwanted stress between wythes. The process requires only a small pilot hole, making it a discreet repair option ideal for both modern and historic structures. Available in multiple diameters and lengths for a range of applications.
PACKAGE QUANTITY
Size | Diameter | Box Quantity |
6" - 10" | 8mm | 100 Pieces Per Box |
12" - 18" | 8mm | 50 Pieces Per Box |
24" & 30" | 8mm | 25 Pieces Per Box |
6" - 18" | 10 mm | 50 Pieces Per Box |
24" & 30" | 10 mm | 25 Pieces Per Box |
