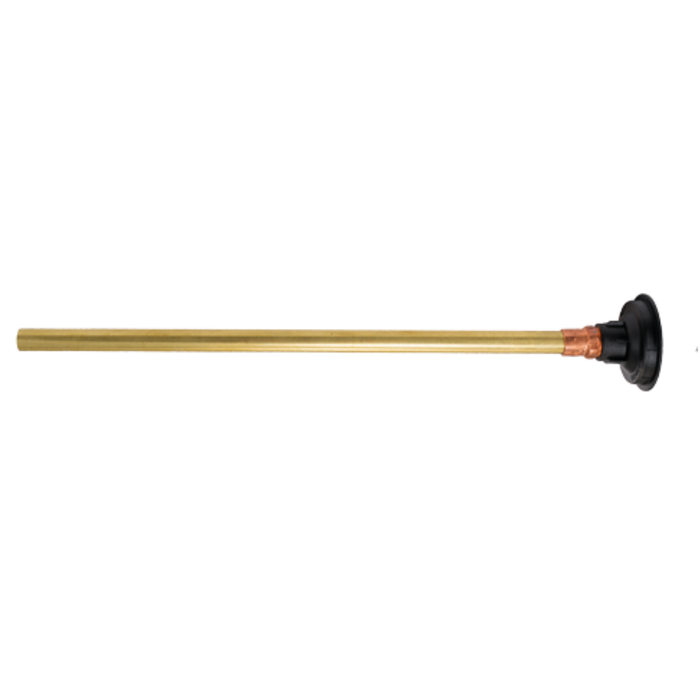

The PROSOCO Pinning Nozzle is designed for controlled grout injection during the installation of PROSOCO Light Duty Sock (LDS) Anchors and Grout-Ties. The nozzle connects to the grout applicator and allows the installer to deliver compatible PROSOCO grout into prepared pilot holes, fabric mesh sleeves and masonry wall assemblies.

Available configurations accommodate 8 mm, 10 mm and 12 mm helical anchors. Select from 12", 36" and 40" nozzle lengths based on the anchor diameter, application and required installation depth.

Features & Benefits

• Designed for PROSOCO grout-injection anchoring systems
• Compatible with Light Duty Sock Anchors
• Select variants are compatible with PROSOCO Grout-Ties
• Available for 8 mm, 10 mm and 12 mm anchors
• Multiple lengths accommodate different wall depths
• Provides controlled grout placement into prepared pilot holes
• Designed for use with compatible PROSOCO grout-application equipment

Compatibility

• The 12 mm x 36" Pinning Nozzle is designed for Light Duty Sock Anchors.
• The 8 mm/10 mm x 12" and 40" Pinning Nozzles are designed for Light Duty Sock Anchors and Grout-Ties.
• When installing PROSOCO Grout-Ties, order the applicable nozzle with the PROSOCO Manual Grout Applicator Kit, item 62900-PGGUNKIT.

Required Equipment – Sold Separately

• PROSOCO Manual Grout Applicator Kit
• Compatible PROSOCO grout
• Appropriate PROSOCO LDS Anchor or Grout-Tie
