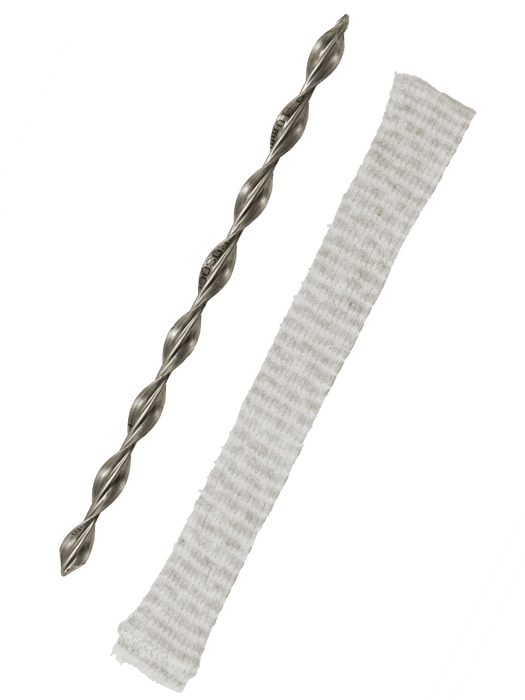

The PROSOCO Light Duty Sock Anchor is a grout-injection anchoring system designed to stabilize masonry and stone walls containing voids or difficult backup conditions. A sleeved version of the PROSOCO Grout-Tie, the system combines a grout-filled mesh sleeve with a stainless steel helical core to create a secure connection within the existing wall assembly.

The Light Duty Sock Anchor can be used to pin rubble-filled masonry or stone walls with large internal voids, multi-wythe solid masonry walls and cavity-wall construction with hollow backup materials. During installation, injected grout fills the mesh sleeve and surrounding voids, forming a permanent connection with the existing masonry.

This system provides a quick, cost-effective and fully concealed method of stabilizing existing walls while minimizing disturbance to the facade. It stabilizes the wall assembly without introducing additional tension between the masonry wythes.

Features & Benefits

• Stabilizes solid and cavity masonry walls

• Suitable for rubble-filled masonry and natural stone walls

• Works within walls containing large internal voids

• Suitable for multi-wythe solid masonry

• Can be used with hollow backup materials

• Sleeved stainless steel helical core provides dependable reinforcement

• Grout-filled sleeve creates a secure connection within the wall

• Fully concealed after installation

• Does not add tension between masonry wythes

• Quick and straightforward installation

• Minimizes disturbance to the existing facade

• Cost-effective masonry stabilization solution

Recommended Applications

• Rubble-filled masonry walls

• Rubble-filled natural stone walls

• Masonry walls containing large voids

• Multi-wythe solid masonry

• Cavity-wall construction

• Walls with hollow backup materials

• Existing masonry stabilization and reinforcement

Required Installation Products – Sold Separately

• PROSOCO Stitch-Tie Helical Anchor, 10 mm
• PROSOCO Stitch-Tie Helical Anchor, 12 mm – special order
• PROSOCO SureGrout S or SureGrout S60
• PROSOCO Manual Grout Applicator Kit
• PROSOCO Pinning Nozzle for Grout Gun

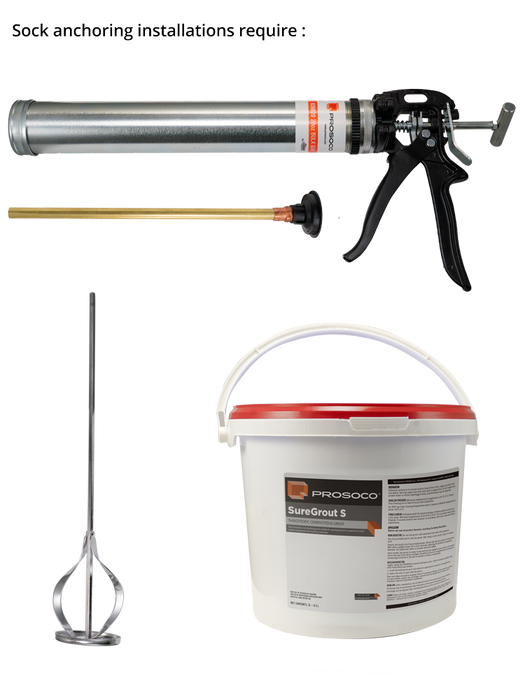

The Manual Grout Applicator Kit includes one bulk grout gun, one paddle mixer and one crack-stitching nozzle. The PROSOCO Pinning Nozzle required for Light Duty Sock Anchor installation must be ordered separately.

Use either SureGrout S or SureGrout S60 based on the project requirements; both grouts are not required for the same installation.
