3Gen Masonry Products Partition Top Anchor – PL – Hot Dip Galvanized Slip Anchor for Top of Wall Connections (100 Pieces/Box)

PARTITION TOP ANCHOR – PL PROVIDES LATERAL SHEAR RESISTANCE WHILE ALLOWING VERTICAL SLAB MOVEMENT, PROTECTING MASONRY WALLS FROM COMPRESSIVE LOAD TRANSFER

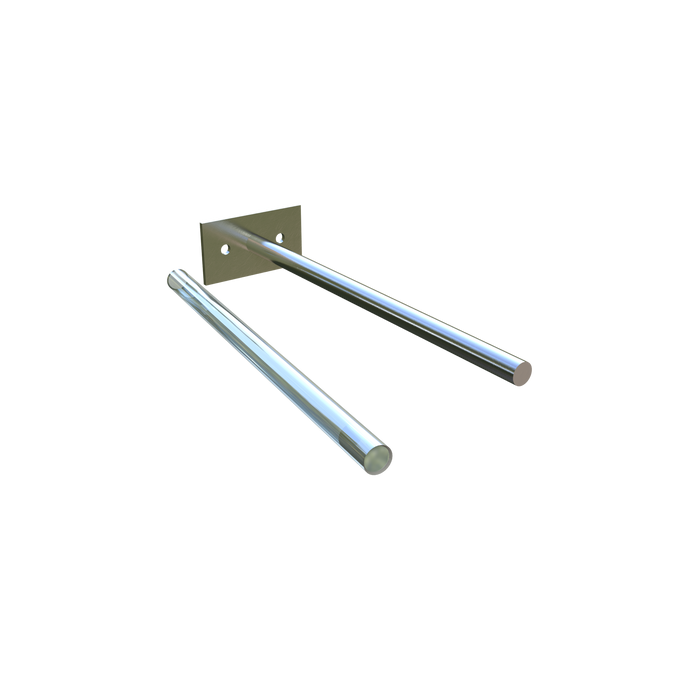

Partition Top Anchor – PL is designed for use at the top of slab masonry walls to provide lateral stability while accommodating vertical movement of the structure above. Featuring a tube with expansion filler, this anchor allows the slab to move independently without transferring compressive loads to the wall below. The rod-and-tube design is embedded in mortar to ensure stability and performance in masonry systems. Manufactured from high-strength materials and hot dip galvanized after fabrication, it offers durability and corrosion resistance for long-term use.

FEATURES

• Provides Lateral Shear Resistance At Top Of Masonry Walls
• Allows Vertical Slab Movement Without Transferring Compressive Loads
• Tube With Expansion Filler Accommodates Structural Movement
• Embedded In Mortar Joint For Stability
• Hot Dip Galvanized After Fabrication For Corrosion Resistance
• Meets TMS 402/602 & ACI / ASCE 530 Masonry Code Requirements

USES

• Top Of Wall Masonry Connections
• Partition Wall Systems
• Commercial Masonry Construction
• Multi-Story Building Assemblies
• Structural Masonry Applications

SIZES / OPTIONS

• Rod Size: 3/8” x 7”
• Assembly: Tube With Expansion Filler
• Finish: Hot Dip Galvanized (ASTM A153-B2)
• Packaging: 100 Pieces Per Box

SPECIFICATIONS

INSTALLATION NOTE

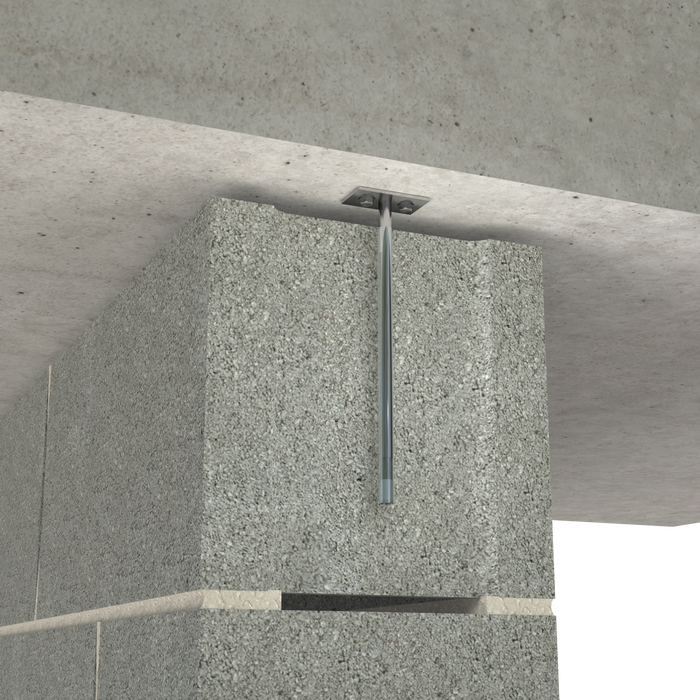

Designed to be embedded in mortar at the top of wall to provide lateral restraint while allowing vertical movement of the slab above.

SUSTAINABILITY

• 85% Post-Consumer Recycled Content
• 10% Post-Industrial Recycled Content
