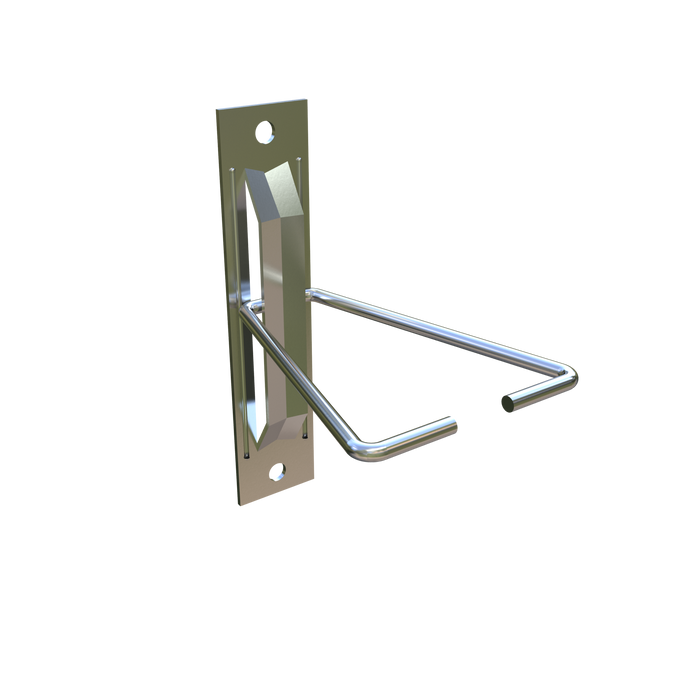

3Gen Masonry Products H-10 Veneer Anchor – Hot Dip Galvanized Adjustable Brick Anchor for Metal Stud, Wood Stud, CMU & Concrete (250 Pieces/Box)

H-10 VENEER ANCHOR PROVIDES A RELIABLE AND ADJUSTABLE CONNECTION FOR SECURING BRICK VENEER TO A VARIETY OF BACKUP WALL SYSTEMS INCLUDING METAL STUD, WOOD STUD, CMU, AND POURED CONCRETE.

The H-10 Veneer Anchor is designed to deliver strong, consistent performance in masonry veneer applications. Featuring a durable hot-dip galvanized finish, this anchor offers corrosion resistance and long-term reliability in both interior and exterior wall systems. Its adjustable design allows for proper alignment and embedment, making it a versatile solution across a wide range of construction types.

FEATURES

• Adjustable Design Allows For Proper Veneer Alignment Across Multiple Backup Systems
• Compatible With Metal Stud, Wood Stud, CMU, And Poured Concrete Applications
• Hot-Dip Galvanized Finish Provides Corrosion Resistance For Long-Term Performance
• Available In Multiple Gauges To Meet Project Load Requirements
• High Load Capacity For Both Tension And Compression Applications

USES

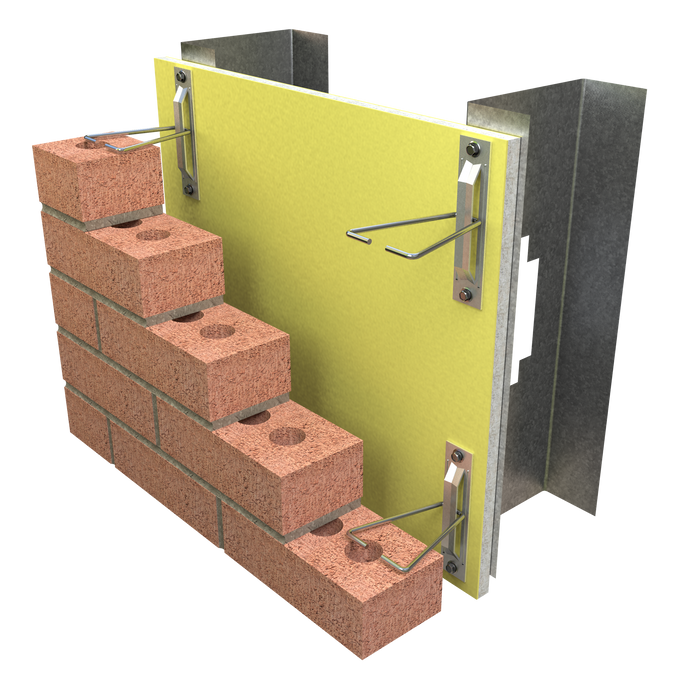

• Brick Veneer Anchoring
• Cavity Wall Construction
• Commercial Masonry Systems
• Residential Masonry Applications
• New Construction And Retrofit Projects

SIZES / OPTIONS

• Material Thickness: 14 Gauge, 12 Gauge
• Triangle Diameter: 3/16”
• Triangle Lengths: 3”, 3.5", 4”, 5”, 6”, 7”
• Finish: Hot Dip Galvanized

STRUCTURAL PERFORMANCE

• 14 Gauge: Exceeds 100 lbs. in tension and compression without deformation or excessive play
• 12 Gauge: Exceeds 400 lbs. under the same conditions
• Test results available upon request

INSTALLATION NOTE

Recommended spacing is 16” on center when used with H-10 veneer anchors.
