Heckmann Building Products Dovetail Triangular Veneer Anchor (250 Pieces/Box)

DOVETAIL TRIANGULAR VENEER ANCHOR (103-C)

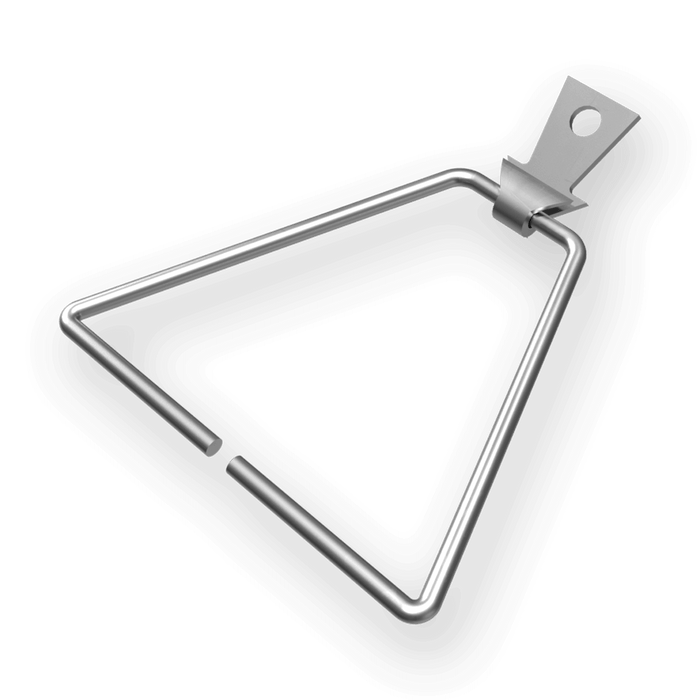

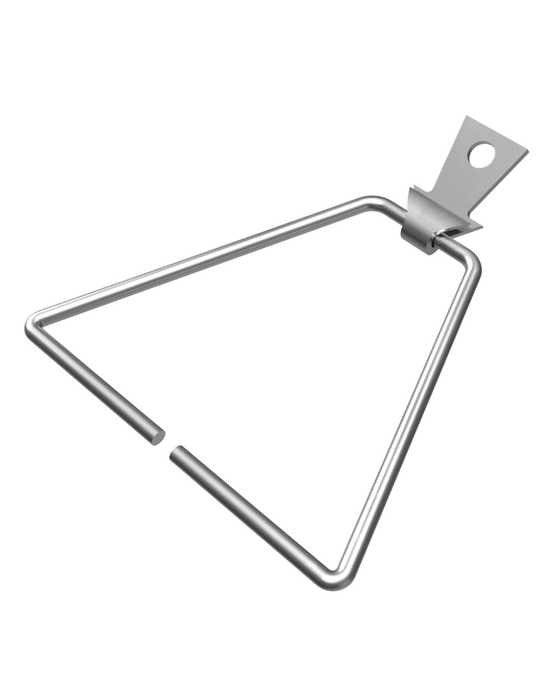

The Dovetail Triangular Veneer Anchor (103-C) is a one-piece, non-adjustable masonry anchor designed for attaching brick veneer to concrete walls with a standard dovetail slot. This anchor features a 12 gauge dovetail clip welded to a 3/16" diameter triangular wire tie, providing reliable connection between masonry veneer and structural backup.

The 103-C anchor is specifically designed for installation into standard 1" deep x 1" wide dovetail slots with a 5/8" throat cast into concrete walls. It can also be used with wood or CMU backup walls when fastened directly to the substrate, making it a versatile solution for brick veneer applications without exterior insulation in the cavity.

FEATURES

• One-piece construction – provides a strong, durable connection without multiple components

• Non-adjustable design – simple and reliable installation for standard veneer anchoring applications

• 12 gauge dovetail clip – designed to fit standard concrete dovetail slots

• 3/16" diameter triangular wire tie – delivers strong support for masonry veneer

• Versatile installation – compatible with concrete dovetail slots, wood backup, or CMU backup walls

• Multiple lengths available – accommodates different cavity widths and wall configurations

APPLICATIONS

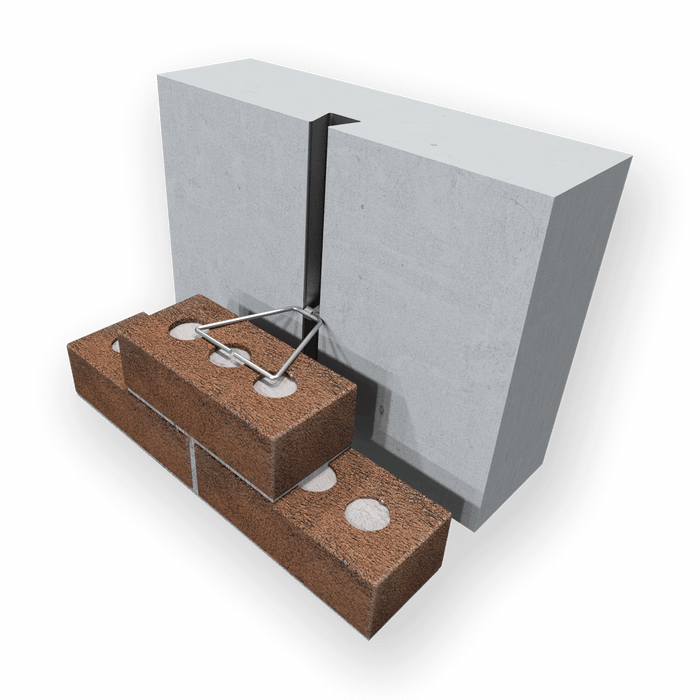

• Brick veneer attached to cast-in-place concrete walls with dovetail slots

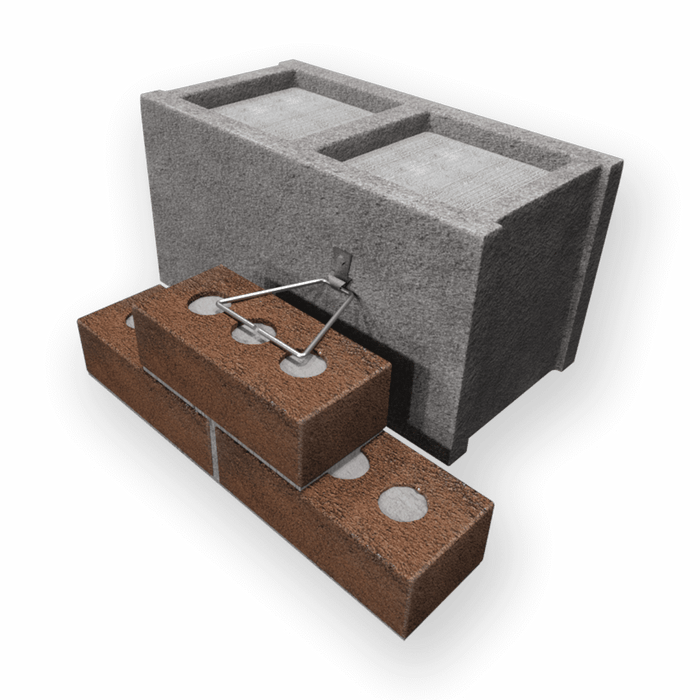

• Brick veneer attached to CMU backup walls

• Brick veneer attached to wood backup walls

• Masonry veneer systems without exterior insulation in the cavity

AVAILABLE LENGTHS

• 3"

• 4"

• 5"

• 6"

• 7"

• 9"

Custom triangle lengths are also available for special project requirements.

MATERIALS / FINISHES

• Stainless Steel

• Hot-Dip Galvanized after fabrication
