Corrugated Wall Ties – Hot-Dip Galvanized (16 Ga & 22 Ga)

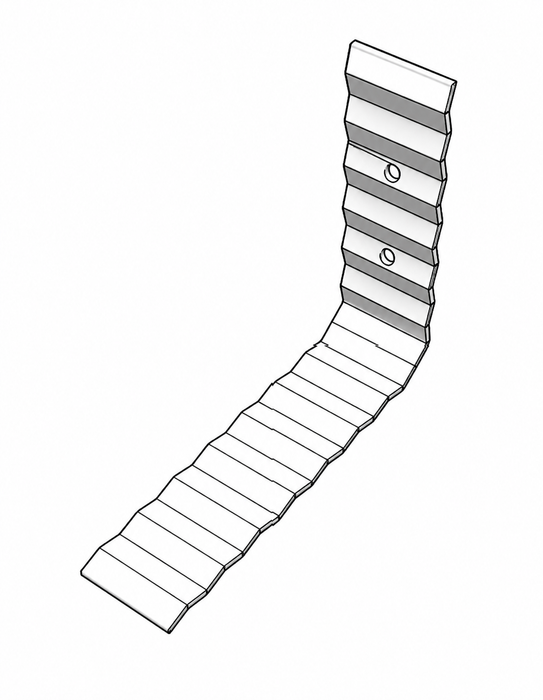

CORRUGATED WALL TIES FOR MASONRY VENEER TO WOOD FRAME BACKUP WALLS

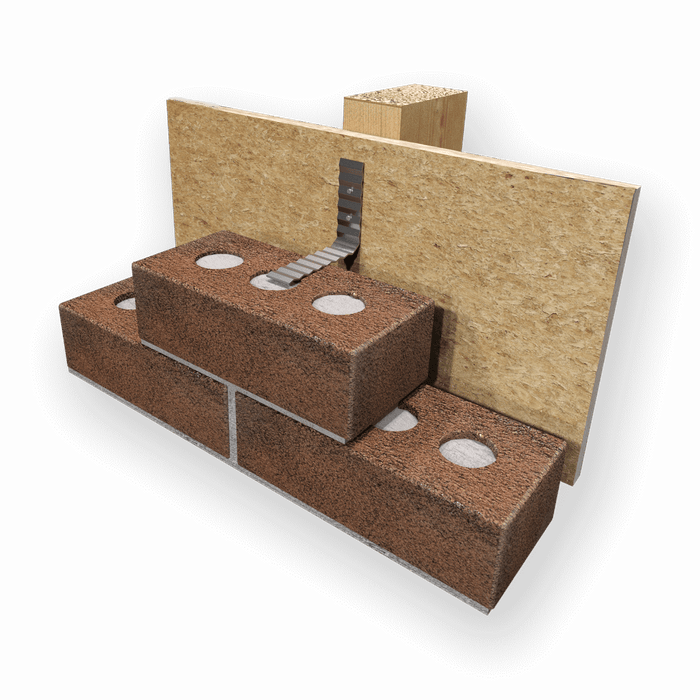

Hot-Dip Galvanized Corrugated Wall Ties are designed to secure masonry veneer to wood frame backup walls in residential and light commercial construction. These ties provide a simple, effective anchoring solution for brick veneer applications where the air space between the veneer and backup wall does not exceed 1 inch.

NOTE: TMS 402 Building Code permits corrugated wall ties only in wall assemblies with a maximum 1" air space. For larger air spaces, use a corrugated brick veneer anchor designed for extended cavity applications.

FEATURES & BENEFITS

• Securely anchors masonry veneer to wood frame backup walls

• Intended for use with wood stud construction only

• Approved for wall assemblies with a maximum 1" air space

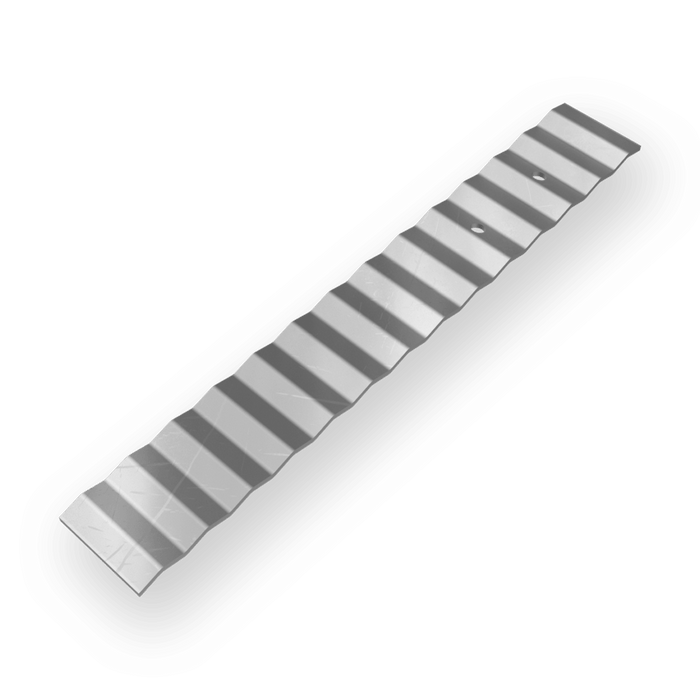

• Standard size: 7" long x 7/8" wide

• Available in 22 gauge and 16 gauge thicknesses

• Hot-Dip Galvanized finish for corrosion resistance

• Simple and economical veneer anchoring solution

• Suitable for residential and light commercial applications

APPLICATIONS

• Brick veneer over wood stud framing

• Residential exterior wall systems

• Wood frame backup wall construction

• Light commercial masonry veneer projects

PRODUCT OPTIONS

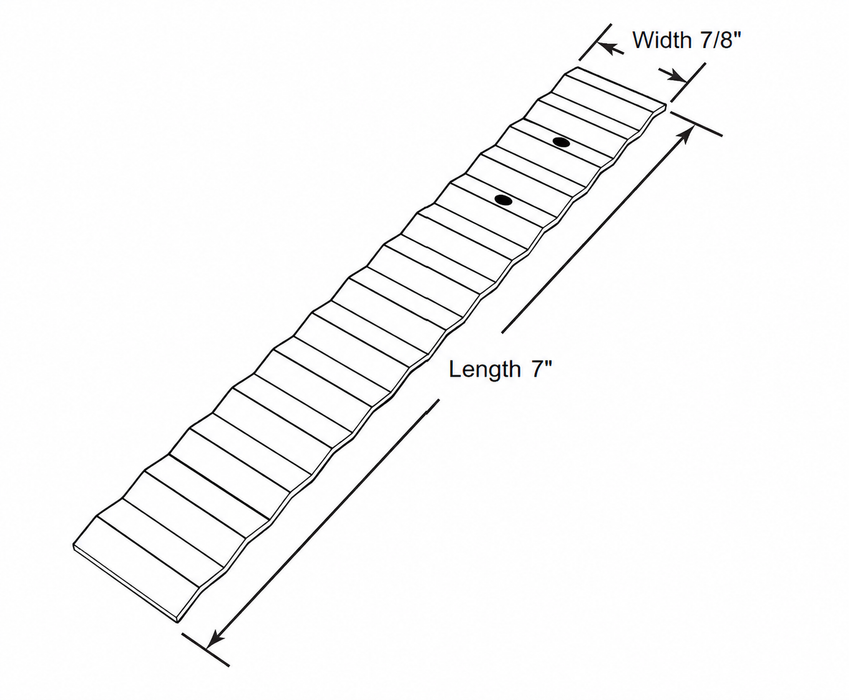

SPECIFICATIONS

• Length: 7"

• Width: 7/8"

• Available Gauges: 16 Gauge, 22 Gauge

• Material: Carbon Steel

• Finish: Hot-Dip Galvanized

• Backup Wall Type: Wood Framing

• Maximum Air Space: 1"

MATERIALS & FINISHES AVAILABLE

• Hot-Dip Galvanized

• Mill Galvanized

• Stainless Steel

STANDARDS & COMPLIANCE

• TMS 402 Building Code Requirements for Masonry Structures

• ASTM A153/A153M – Hot-Dip Galvanized Coatings

• ASTM A1008/A1008M – Carbon Steel Sheet

• Applicable residential masonry veneer anchorage requirements

IMPORTANT INSTALLATION NOTES

• For use with wood frame backup walls only.

• Maximum permitted air space is 1" in accordance with TMS 402 requirements.

• For larger cavity widths, use a corrugated brick veneer anchor designed for extended air space applications.

• Select tie gauge based on project requirements and applicable building codes.

• Hot-Dip Galvanized finish provides enhanced corrosion protection for most residential applications.
