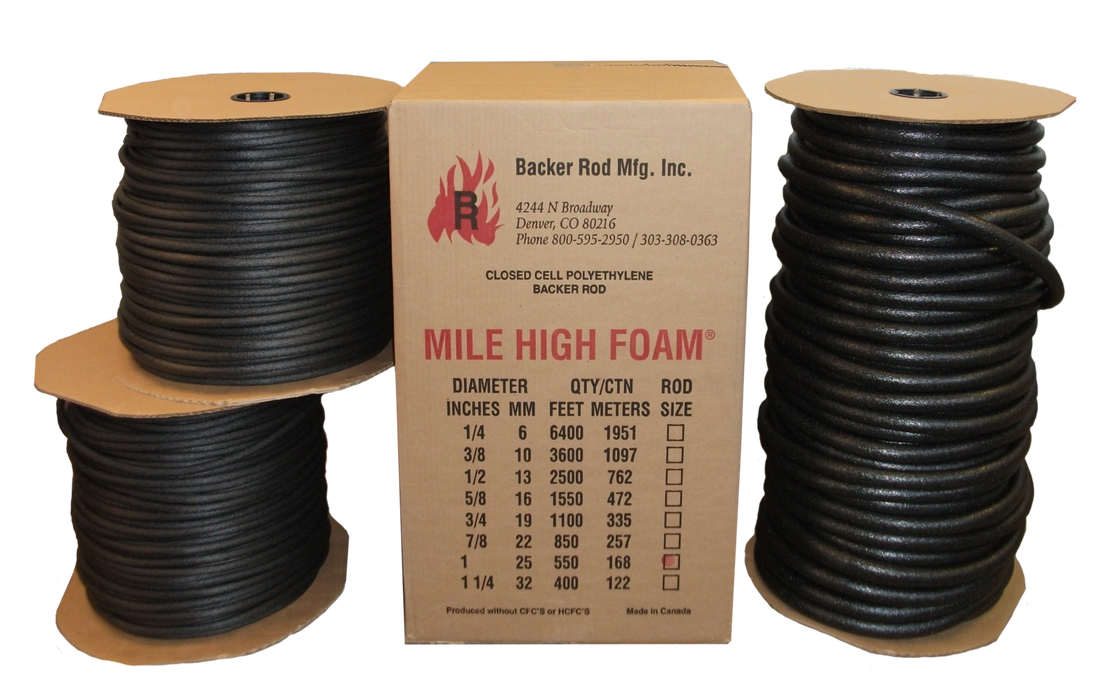

Mile High Foam Standard Closed Cell Backer Rod

Mile High Foam Standard Closed Cell Backer Rod

SKU IEAB014MB
by Backer Rod Mfg. Inc.
$16.55 - $166.85
$30.45
$16.55 - $166.85
$30.45
400.0ft | $0.08 / ft
Request a quote

MILE HIGH FOAM® CLOSED CELL BACKER ROD – POLYETHYLENE SEALANT BACKING

Control sealant depth and improve joint performance with Mile High Foam® Closed Cell Backer Rod. Designed to reduce sealant usage while forming the ideal hourglass configuration, this backer rod delivers consistent, reliable results across a wide range of construction applications.

KEY FEATURES

  • Controls sealant depth: reduces excess sealant use and ensures proper joint design
  • Closed cell structure: provides moisture resistance and consistent performance
  • Enhances joint performance: promotes proper adhesion and cohesion
  • Durable and flexible: maintains shape under compression while allowing movement
  • Chemical resistance: resists oil, gasoline, and most solvents
  • Wide compatibility: works with most cold-applied sealants

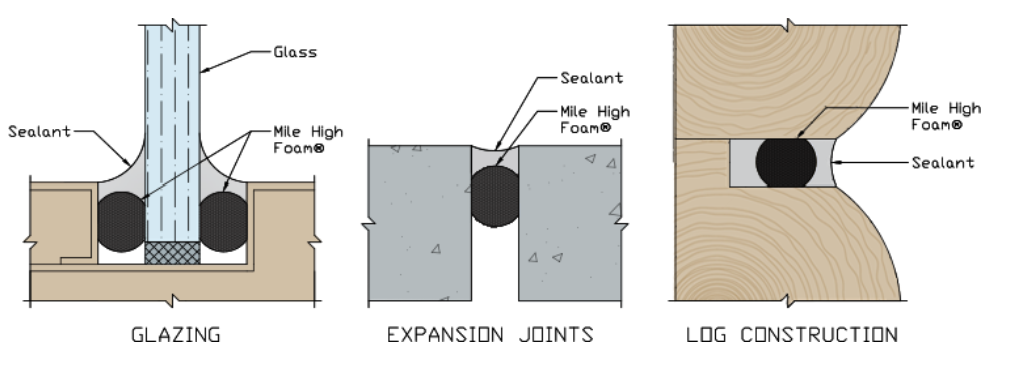

APPLICATIONS

  • Expansion and construction joints
  • Concrete and precast walls
  • Curtain wall systems
  • Parking decks and pavements
  • Bridge and highway construction
  • Window glazing
  • Log home construction

PRODUCT DETAILS

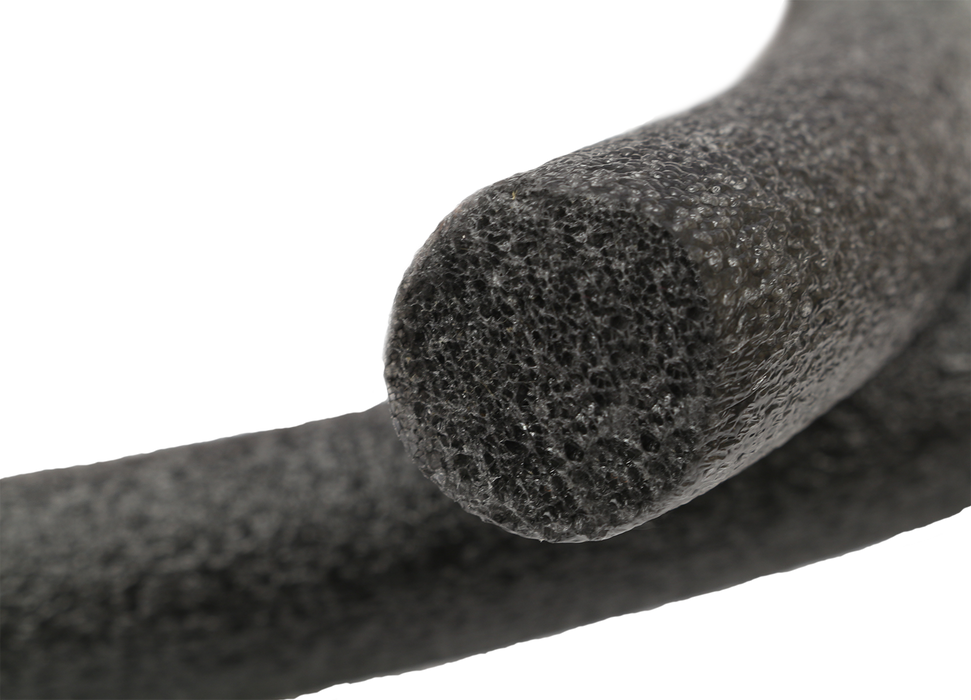

  • Material: closed cell polyethylene
  • Color: black
  • Form: continuous round profile
  • Performance: moisture-resistant and non-staining

PHYSICAL PROPERTIES

  • Density: 1.25–2.0 lbs/ft³ (ASTM D1622)
  • Out-gassing: >1 (ASTM C1253)
  • Tensile strength: 39–50 psi (ASTM C1623)
  • Moisture absorption: 0.002 g/cm³ (ASTM C1016 – Proc. B)
  • Temperature range: -90°F to +210°F (ASTM D5249)
  • Compression: >90% (ASTM D5249)

AVAILABLE OPTIONS

SIZE LENGTH PACKAGING TYPE DETAILS

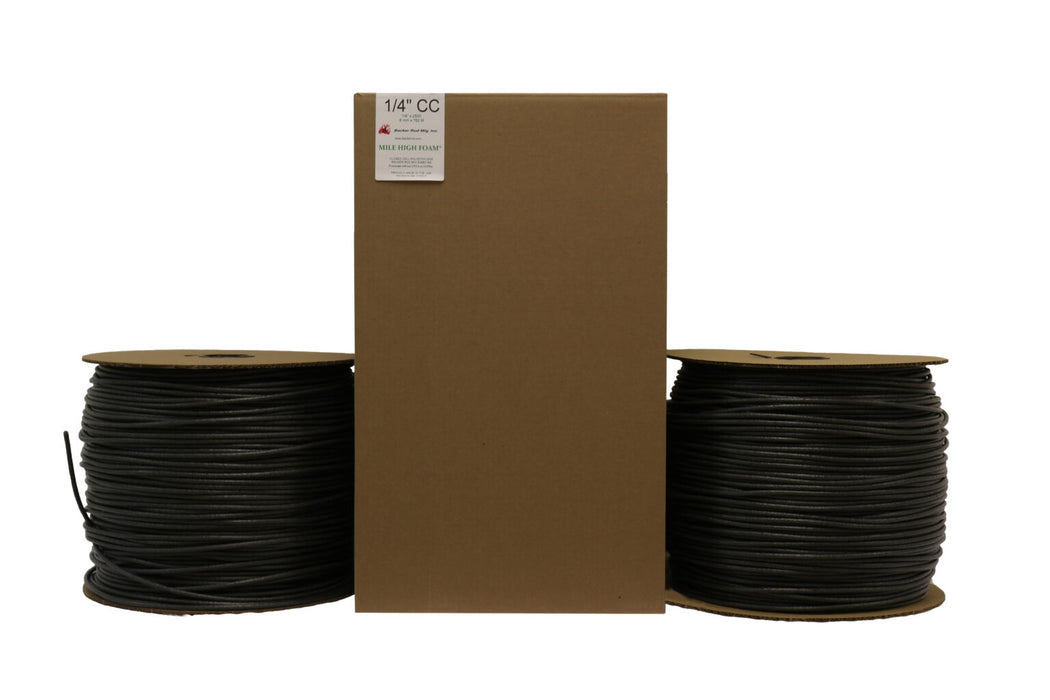

1/4" 400' Standard Carton 2 spools per carton
3/8" 200' Mini Carton 1 spool per carton
3/8" 3600' Standard Carton 2 spools per carton
1/2" 100' Mini Carton 1 spool per carton
1/2" 2500' Standard Carton 2 spools per carton
5/8" 100' Mini Carton 1 spool per carton
5/8" 1550' Standard Carton 2 spools per carton
3/4" 100' Mini Carton 1 spool per carton
3/4" 1100' Standard Carton 2 spools per carton
1" 75' Mini Carton 1 spool per carton
1-1/4" 400' Standard Carton 1 spool per carton
1-1/2" 420' Super Carton 6' lengths
2" 252' Super Carton 6' lengths



INSTALLATION NOTES

  • Select a diameter slightly larger than the joint width for proper compression
  • Install at the depth recommended by the sealant manufacturer
  • Ensure joints are clean, dry, and free of contaminants before installation

LIMITATIONS

  • Performance is subject to the limitations of the sealant used
  • Follow all sealant manufacturer recommendations for compatibility and installation
