CAVCLEAR WEEP VENTS
CavClear Weep Vents provide essential moisture drainage, airflow, and insect protection in brick veneer cavity wall systems. Designed to blend seamlessly with surrounding mortar, these weep vents maintain open-head joints for reliable ventilation at the flashing line. Their notched profile accelerates drying and improves overall wall performance, especially when used as part of a full-height CavClear drainage system.
FEATURES AND BENEFITS
-
Superior ventilation – polymer mesh design delivers greater airflow and drainage compared to traditional rope wicks
-
Prevents blockage – helps keep weep openings clear of insects, debris, and mortar droppings
-
Color variety – multiple color options create a clean, continuous appearance that blends with surrounding mortar
-
Easy installation – installs quickly by placing into head joints at standard spacing
-
LEED contribution – recycled content supports sustainable building criteria
-
Eco-friendly materials – manufactured from recycled plastic for reduced environmental impact
APPLICATION AND INSTALLATION

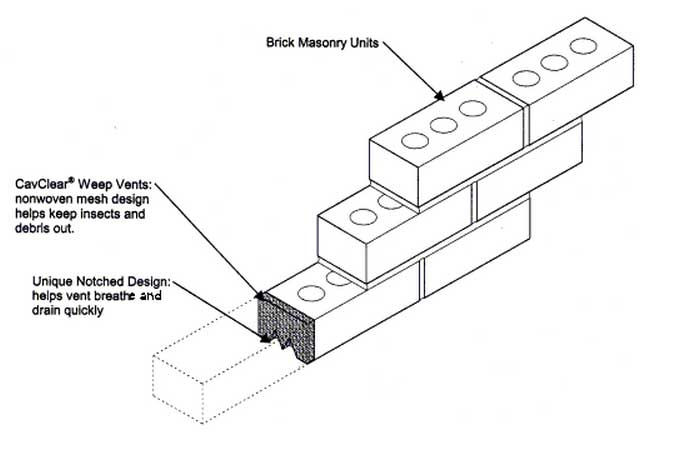

CavClear Weep Vents are placed in the vertical joints of brick masonry units to promote moisture drainage and cavity ventilation while preventing insects and small animals from entering the wall system. They can be used in new construction or restoration work and perform best when paired with other CavClear air space maintenance products such as Masonry Mat, Stone Mat, or the CavClear Insulation System.
Install weep vents every 24" at all flashing locations, with the notched side down. Do not butter the sides of the masonry units forming the vent space. Simply insert the vent material into the head joint during placement to maintain a clear and functional opening.
MATERIALS/FINISHES

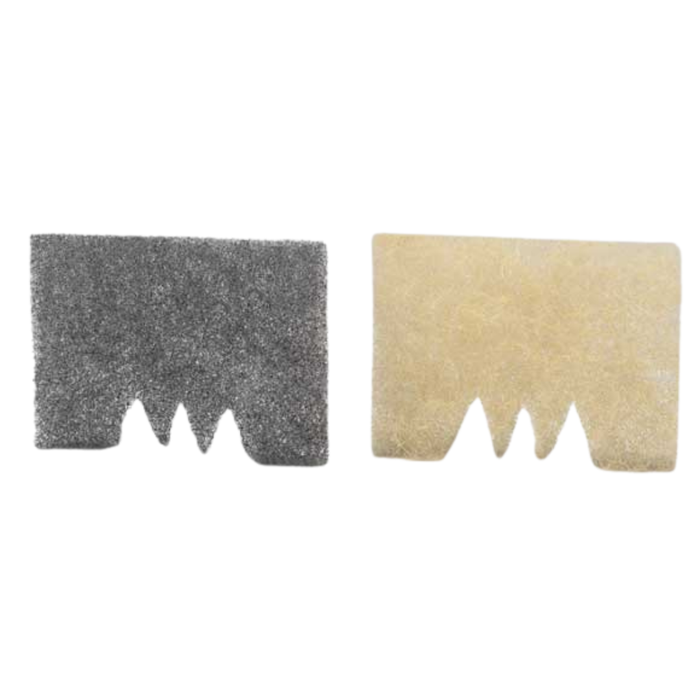

- Recycled plastic polymer mesh
- Notched profile for enhanced airflow and drying
SIZE
- Standard size: 3/8" thick x 2-1/2" high x 3-1/2" deep
- Custom sizes available upon request
COLOR OPTIONS
PRODUCT PACKAGING
- 200 Pieces Per Box
- 90 Boxes Per Pallet
STORAGE AND HANDLING
Store boxed product in a clean, dry, and covered area off the ground until installation.
