DUAL-DIAMETER HELICAL ANCHOR FOR HARDER BACKUP MATERIAL

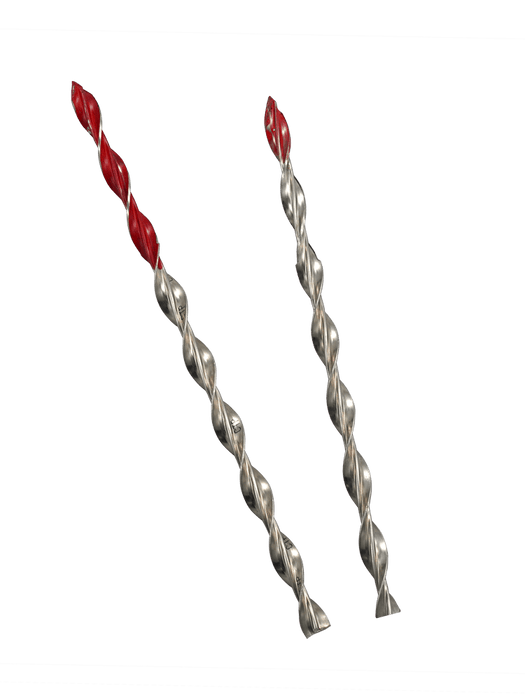

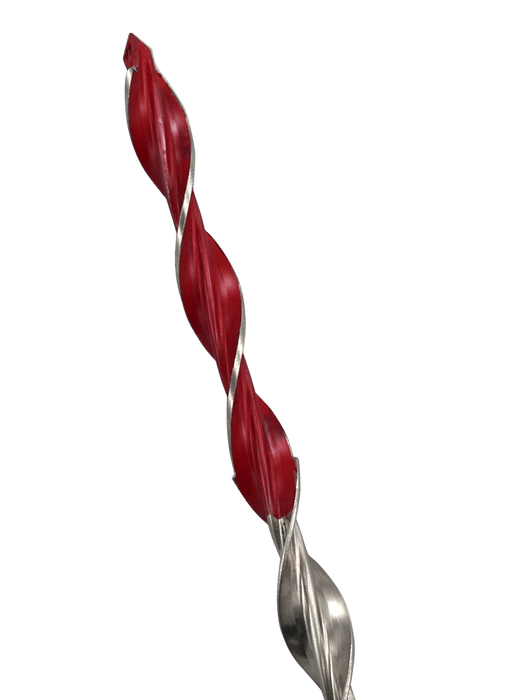

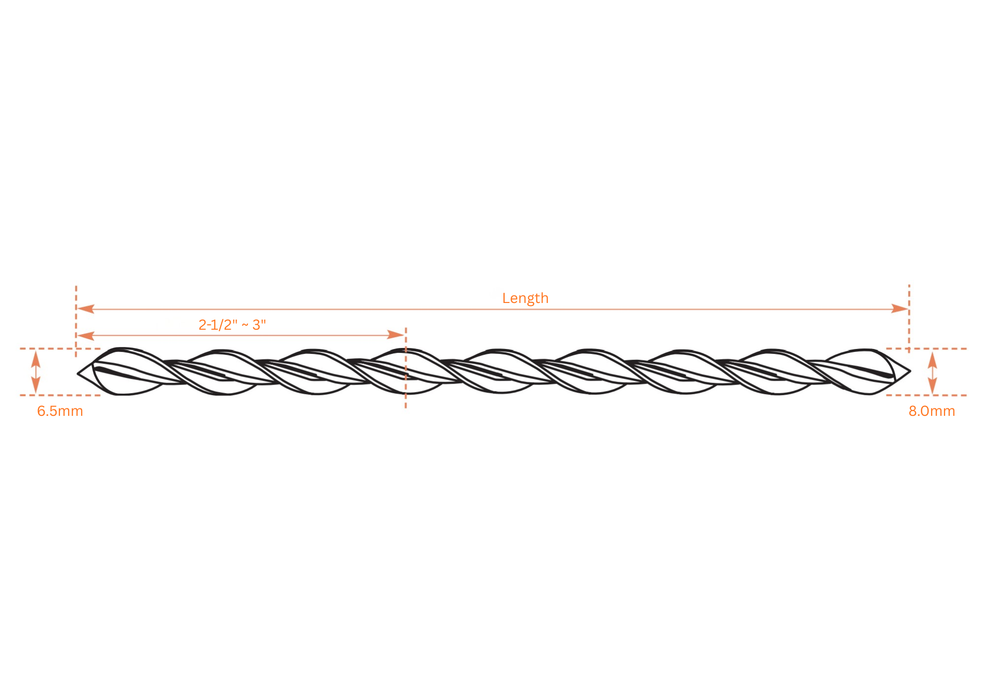

The Stitch-Tie Asymmetric is used when connecting a soft external substrate to harder internal walls. It features one end with a smaller diameter (2”–3”) designed to embed into hard backup material, while the other end has an 8-mm or 10-mm helical outer diameter to engage with softer masonry veneer. This configuration allows for optimum tension capacity in the connection.
In harder concrete back-up materials, a standard 8-mm or 10-mm tie may require a larger pilot hole, which can weaken the veneer portion of the anchorage. The dual-diameter design of the Stitch-Tie Asymmetric avoids this issue by allowing a smaller hole in the backup without sacrificing veneer capacity. PROSOCO recommends performing a mock-up on-site to determine pilot hole sizing and tie performance before full installation.
FEATURES
-
Simple installation with minimal disturbance – Self-taps directly into a small pilot hole drilled into the substrate
-
Helical design ensures continuous grip – Provides reliable mechanical connection between leaves
-
Color-coded for quick and easy installation – Easily identify correct tie and size
-
Installs with rotary hammer and appropriate setting tools – No special adhesives or cure time required
- Finish - Type 304 Stainless Steel
PACKAGE QUANTITY
Size | Diameter | Box Quantity |
6" - 12" | 8mm | 100 Pieces Per Box |
14" | 8mm | 50 Pieces Per Box |
6" - 14" | 10mm | 50 Pieces Per Box |
REQUIRED FOR INSTALLATION
INSTALLATION INSTRUCTIONS
- Drill the pilot holes through both leaves to required depth and diameter.
- Insert the installation tool into an SDS rotary hammer drill, then place the Stitch-Tie® Asymmetric Wall Tie into the installation tool.
- Drive the Stitch-Tie® Asymmetric Wall Tie into the internal leaf to the required depth ensuring the tie is fully recessed to the external leaf below the face of the masonry.
- Repair the surface with matching mortar.
