3Gen Masonry Products Termination Bar – Type L (Lip) (8') – Stainless Steel or Aluminum Flashing Termination Bar (200'/Box)

TERMINATION BAR (LIP) PROVIDES A SECURE, MECHANICAL ATTACHMENT FOR FLASHING SYSTEMS WHILE ALLOWING PROPER SEALANT APPLICATION AT THE TERMINATION POINT

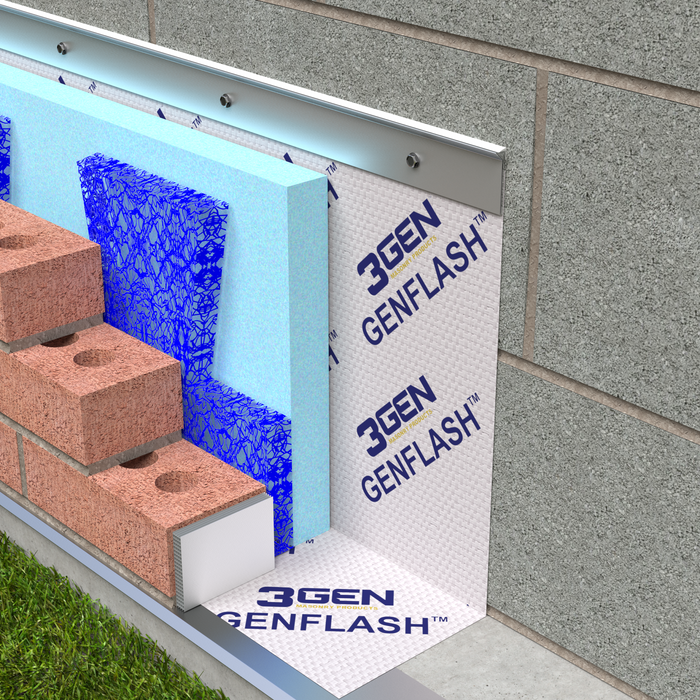

Termination Bar – Type L (Lip) is designed to mechanically secure the top edge of surface-mounted flashing to the substrate, creating a reliable and watertight termination. The integrated 45-degree lip allows for proper placement of sealant, helping to ensure a clean, sealed edge and long-term moisture protection. Compatible with all flashing products, this termination bar is an essential component in complete flashing and waterproofing systems.

FEATURES

• Mechanically Secures Flashing At Termination Points
• 45° Lip Design Allows Proper Sealant Placement
• Pre-Punched Holes For Consistent Fastening
• Compatible With All Flashing Systems
• Available In Stainless Steel Or Aluminum
• Corrosion Resistant For Long-Term Performance

USES

• Flashing Terminations
• Waterproofing Systems
• Masonry Cavity Wall Applications
• Window And Door Flashing
• Commercial And Residential Construction

SIZES / OPTIONS

• Length: 8'
• Finish Options:
  • Stainless Steel (Type 304)
  • Aluminum
• Hole Size: 9/32” Diameter
• Hole Spacing: 8” On Center
• Packaging: 25 Pieces or 200 Linear Feet Per Box

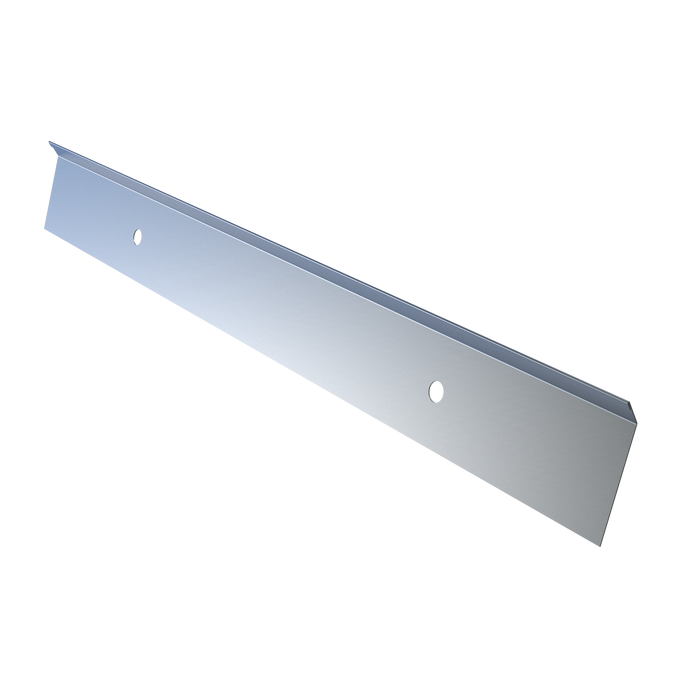

Stainless Steel Option:

• Material: Type 304 Stainless Steel
• Thickness: 26 Gauge
• Width: 1-1/2”

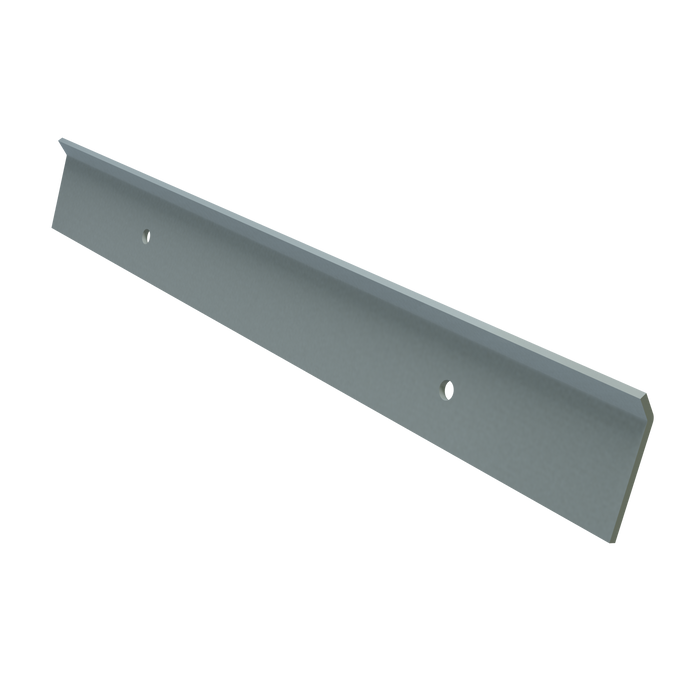

Aluminum Option:

• Material: Aluminum
• Thickness: 14 Gauge
• Width: 1”

INSTALLATION NOTE

• Recommended fastening is 8” on center
• Apply sealant along the lip for proper termination and moisture protection

SPECIFICATIONS

SUSTAINABILITY

• 68% Post-Consumer Recycled Content (Stainless Steel)
• 18% Post-Industrial Recycled Content (Stainless Steel)

RESOURCES

• Submittal Sheet
• SDS Aluminum Sheet
• LEED Aluminum Sheet
• SDS Stainless Sheet
• LEED Stainless Sheet
• Product Substitution Request Form
