3Gen Masonry Products Stainless Steel Drip Edge – Hemmed Edge (8') Type 304 Flashing Accessory For Cavity Wall Drainage (200'/Box)

HEMMED DRIP EDGE PROVIDES A CLEAN, RIGID TERMINATION FOR FLASHING SYSTEMS, HELPING CHANNEL MOISTURE OUT OF THE CAVITY WALL

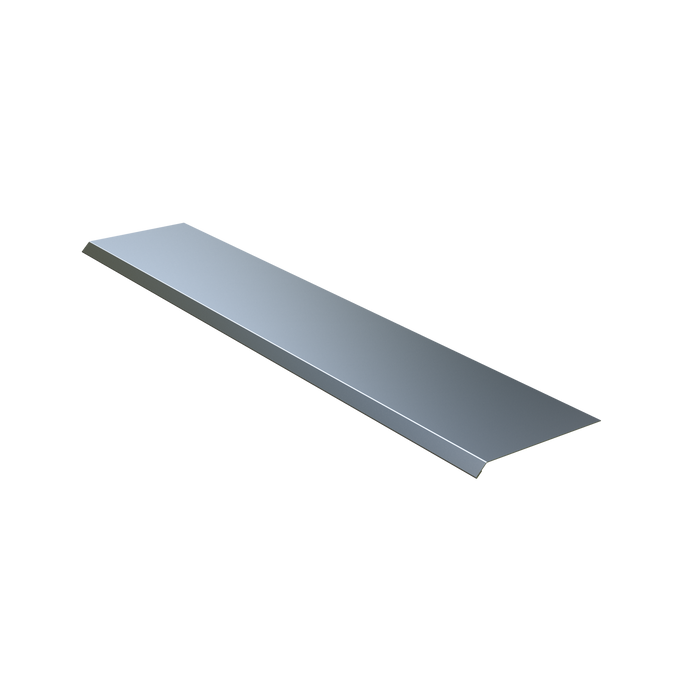

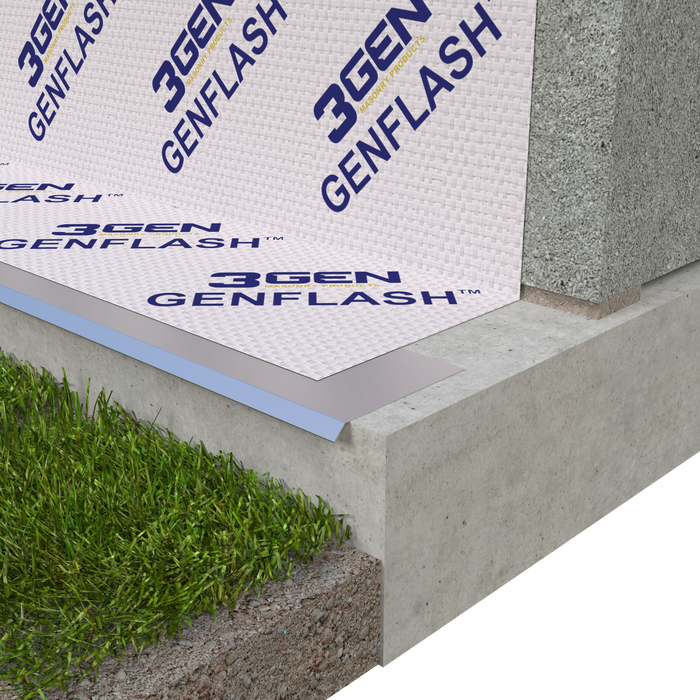

Stainless Steel Hemmed Drip Edge is designed to be installed beneath flashing systems to direct water out of the wall assembly and away from the building. Manufactured from Type 304 stainless steel, this drip edge offers superior corrosion resistance and long-term durability in demanding exterior environments.

The 3/8” hemmed edge with a 45-degree bend provides added rigidity and a clean finished appearance, making it ideal for applications where strength and visual finish are critical.

FEATURES

• Directs Moisture Out Of Masonry Cavity Wall Systems
• 3/8” Hemmed Edge With 45° Bend For Strength And Clean Finish
• Increased Rigidity Compared To Flat Edge
• Manufactured From Type 304 Stainless Steel
• Designed To Meet Seismic Requirements Per Uniform Building Code

USES

• Thru-Wall Flashing Systems
• Masonry Cavity Wall Construction
• Window And Door Flashing Terminations
• Commercial And Residential Masonry Projects

SIZES / OPTIONS

• Material Thickness: 26 Gauge
• Length: 8'
• Widths Available:
  • 1-1/2” – 2”
  • 3”
• Edge Type: Hemmed (3/8” 45° Bend)
• Finish: Type 304 Stainless Steel (2B / 2D)
• Packaging: 25 Pieces or 200 Linear Feet Per Box

RESOURCES

• Submittal Sheet
• SDS Stainless Steel Sheet
• LEED Stainless Sheet
• Product Substitution Request Form
