H-13-H Veneer Anchor – Hot-Dip Galvanized Adjustable Brick Anchor

H-13-H VENEER ANCHOR PROVIDES A RELIABLE AND ADJUSTABLE CONNECTION FOR SECURING BRICK VENEER TO A VARIETY OF BACKUP WALL SYSTEMS

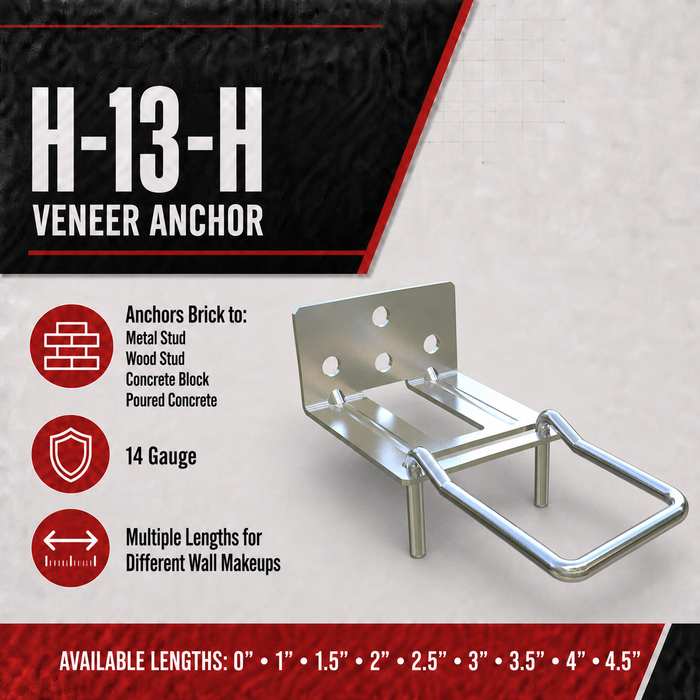

The H-13-H Veneer Anchor is designed for anchoring brick veneer to metal stud, wood stud, CMU, and poured concrete backup systems. Featuring a hot dip galvanized finish, this anchor provides corrosion resistance and long-term durability for both interior and exterior applications. Its multifunctional design allows for horizontal installation using the integrated hook or vertical installation when paired with a triangle tie, making it a versatile solution for a wide range of masonry wall assemblies.

FEATURES

• Multifunctional Design Allows Horizontal Hook Or Vertical Triangle Tie Installation
• Compatible With Metal Stud, Wood Stud, CMU, And Poured Concrete
• Hot Dip Galvanized Finish Provides Corrosion Resistance
• Can Be Used With Rigid Or Spray Foam Insulation
• Meets TMS 402/602 & ACI / ASCE 530 Masonry Code Requirements

USES

• Brick Veneer Anchoring
• Cavity Wall Construction
• Commercial Masonry Systems
• Residential Masonry Applications
• Insulated Wall Assemblies

SIZES / OPTIONS

• Material Thickness: 14 Gauge
• Thickness Options: 0", 1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4"
• Finish: Hot Dip Galvanized

STRUCTURAL PERFORMANCE

• Capable of withstanding 100 lbs in tension and compression without deformation or excessive play
• Test results available upon request

INSTALLATION NOTE

Recommended spacing is 16” on center.
