Barrel Anchor for Metal Stud – Adjustable Brick Veneer Anchor for Insulated Wall Systems (125/Box)

BARREL ANCHOR PROVIDES A SECURE AND ADJUSTABLE CONNECTION FOR ANCHORING BRICK VENEER TO METAL STUD BACKUP WALLS, INCLUDING INSULATED ASSEMBLIES

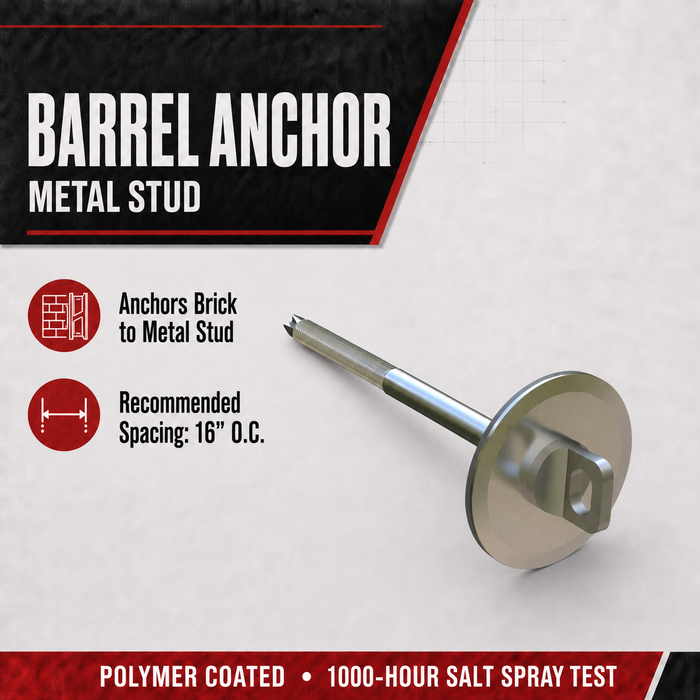

The Barrel Anchor is designed for anchoring brick veneer to metal stud systems, allowing for movement and adjustment across varying insulation and gypsum board thicknesses. Manufactured from high-strength carbon steel and hot dip galvanized after fabrication, this anchor delivers durability, corrosion resistance, and long-term performance. The polymer-coated barrel provides enhanced protection and smooth adjustment, making it ideal for modern insulated cavity wall construction.

FEATURES

• Designed Specifically For Metal Stud Backup Wall Systems
• Adjustable Barrel Design Accommodates Insulation And Gyp Board Thickness
• Polymer-Coated Barrel Provides Enhanced Corrosion Resistance
• Smooth Adjustment For Proper Alignment And Embedment
• Meets TMS 402/602 & ACI / ASCE 530 Masonry Code Requirements

USES

• Brick Veneer Anchoring To Metal Stud
• Insulated Cavity Wall Systems
• Commercial Masonry Construction
• Residential Masonry Applications
• New Construction And Retrofit Projects

SIZES / OPTIONS

• Insulation / Gyp Board Thickness:
  5/8”, 1”, 1-1/2”, 2”, 2-1/2”, 3”, 3-1/2”, 4”, 4-1/2”
• Finish: Polymer Coated (1000-Hour Salt Spray Tested)
• Packaging: 125 Pieces Per Box

STRUCTURAL PERFORMANCE

• Capable of withstanding 100 lbs in tension and compression without deformation or excessive play
• Test results available upon request

INSTALLATION NOTE

Recommended spacing is 16” on center.

SUSTAINABILITY

• 85% Post-Consumer Recycled Content
• 10% Post-Industrial Recycled Content
