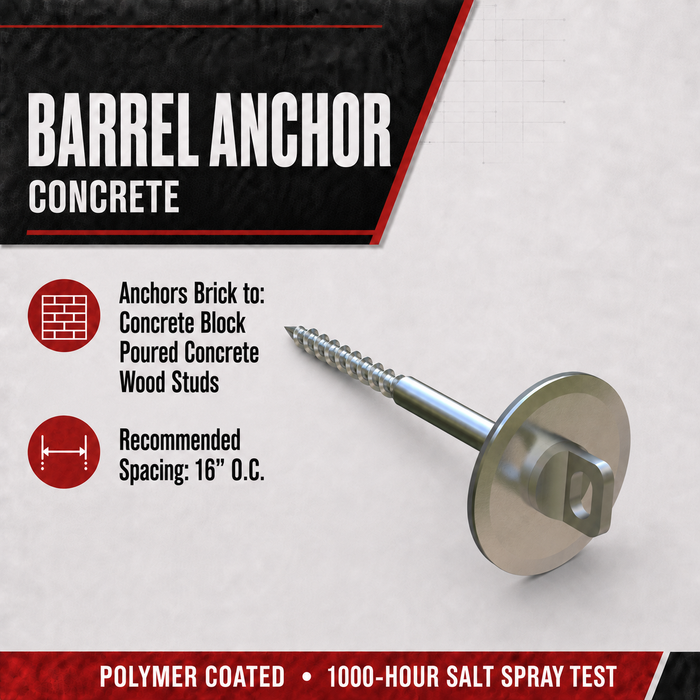

3Gen Masonry Products Barrel Anchor (Concrete) – Adjustable Brick Veneer Anchor for CMU, Concrete & Wood Stud (125 Pieces/Box)

BARREL ANCHOR PROVIDES A SECURE AND ADJUSTABLE CONNECTION FOR ANCHORING BRICK VENEER TO CONCRETE BLOCK, POURED CONCRETE, AND WOOD STUD BACKUP WALLS

The Concrete Barrel Anchor is designed for anchoring brick veneer to solid backup systems including CMU, poured concrete, and wood stud assemblies. Its adjustable barrel design allows for proper alignment across varying insulation and gypsum board thicknesses, making it ideal for modern cavity wall construction. The polymer-coated barrel provides enhanced durability and corrosion resistance, ensuring long-term performance in demanding environments.

FEATURES

• Designed For CMU, Poured Concrete, And Wood Stud Backup Systems
• Adjustable Barrel Design Accommodates Insulation And Gyp Board Thickness
• Polymer-Coated Barrel Provides Enhanced Corrosion Resistance
• Smooth Adjustment For Proper Alignment And Embedment
• Meets TMS 402/602 & ACI / ASCE 530 Masonry Code Requirements

USES

• Brick Veneer Anchoring To Concrete And CMU
• Anchoring To Wood Stud Backup Walls
• Insulated Cavity Wall Systems
• Commercial Masonry Construction
• Residential Masonry Applications

SIZES / OPTIONS

• Insulation / Gyp Board Thickness:
  5/8”, 1”, 1-1/2”, 2”, 2-1/2”, 3”, 3-1/2”, 4”, 4-1/2”
• Finish: Polymer Coated (1000-Hour Salt Spray Tested)
• Packaging: 125 Pieces Per Box

STRUCTURAL PERFORMANCE

• Capable of withstanding 100 lbs in tension and compression without deformation or excessive play
• Test results available upon request

INSTALLATION NOTE

Recommended spacing is 16” on center.
