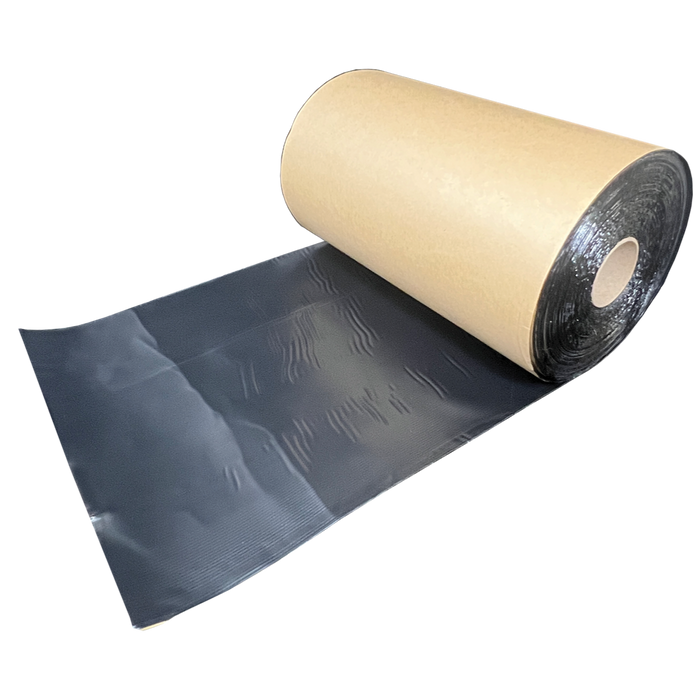

Material Construction

• Total Thickness: 40 mil (1.0 mm)
• Facer: Cross-laminated high-density polyethylene film
• Adhesive: Proprietary modified asphalt
• Release Liner: Siliconized release liner

Available Sizes and Packaging

• 12" × 75' Roll - 3 rolls or 225' per box
• 18" × 75' Roll - 2 rolls or 150' per box
• 24" × 75' Roll - 1 roll or 75' per box

This product is sold in full-box quantities only.

Technical Performance

• Tensile Strength: 1,200 psi minimum per ASTM D412
• Elongation at Break: 200% per ASTM D412
• Low-Temperature Pliability: Passes ASTM D146 at -25°F over a 1" mandrel
• Peel Adhesion to Dry Concrete: 6 lb/in width per ASTM D903
• Puncture Resistance: 50 lb per ASTM E154
• Permeance: 0.05 perm maximum per ASTM E96B
• Water Absorption: 0.1% by weight maximum per ASTM D570
• Maximum UV Exposure: 60 days
• Maximum Service Temperature: 180°F

Installation Requirements

• Install when the air and surface temperatures are above 40°F.
• Concrete must cure for a minimum of seven days and be completely dry.
• Surfaces must be clean, dry, smooth, and free of voids, contaminants, and sharp protrusions.
• Brick and block mortar joints must be struck flush.
• Prime substrates before applying the membrane.
• Roll the installed membrane firmly with a hard roller to remove wrinkles and air pockets.
• Overlap adjoining pieces by 2" and seal the edge with an approved mastic.
• Apply an approved sealant to termination edges, laps, cuts, and penetrations.
• A surface-mounted termination bar is recommended for vertical terminations.
• End dams require a minimum 2" membrane turn-up.

Limitations

• Do not install over damp surfaces or substrates that have absorbed water.
• Do not span gaps measuring 1/4" or greater.
• Do not expose the membrane to temperatures above 180°F.
• Do not use with sealants containing coal tar or polysulfides.
• Avoid contact with products containing high levels of plasticizers.
