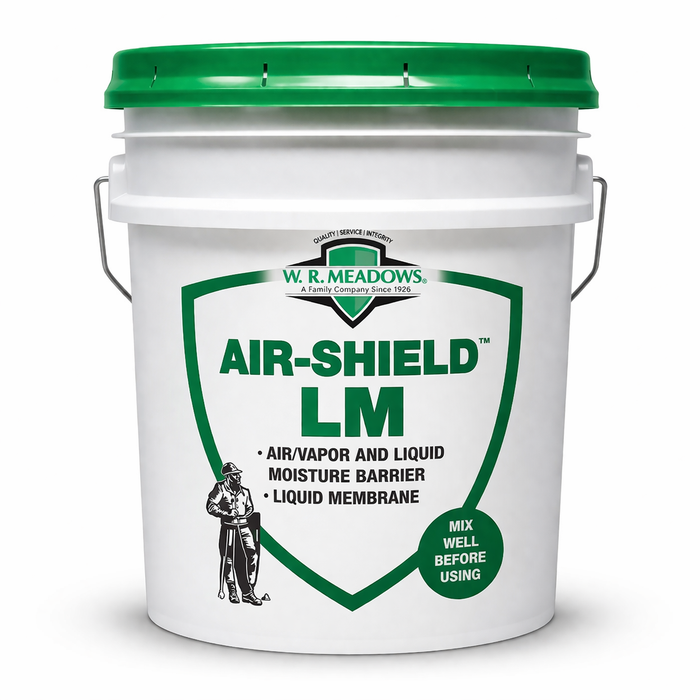

W.R. Meadows AIR-SHIELD LMP Gray Liquid Membrane Vapor-Permeable Air Barrier – 5 Gallon Pail
SKU 6525005
by W.R. Meadows
Original price
$242.90
-
Original price
$242.90
Original price
$242.90
$242.90
-
$242.90
Current price
$242.90
5.0gal | $48.58 / gal
Ships in 1–2 business days
GRAY LIQUID MEMBRANE FOR VAPOR-PERMEABLE AIR AND MOISTURE PROTECTION
AIR-SHIELD LMP is a water-based, single-component air and liquid moisture barrier that cures to form a seamless, elastomeric membrane. It provides superior resistance to air leakage while allowing vapor transmission, creating a durable drainage plane that prevents liquid water intrusion into substrates. Ideal for both new construction and retrofit applications, AIR-SHIELD LMP is user-friendly, safe to apply, and simplifies detailing with a monolithic, fully bonded membrane.
USES
- Air and liquid moisture barrier for cavity wall and masonry wall construction
- Suitable for new construction and retrofit applications
- Compatible with precast concrete, cast-in-place concrete, masonry (concrete block), interior and exterior gypsum board, rigid foam insulation, primed steel, and untreated plywood
- Ideal for integration into a variety of wall systems
FEATURES
- Resists mold and fungus growth
- Non-asphaltic; meets stringent fire code requirements
- High permeability allows moisture vapor transmission through porous building materials
- Low-temperature flexibility down to -20° F (-28° C)
- Phthalate-free and formulated with natural flame-resistant polymers for low flame spread and smoke development
- Highly flexible; bridges substrate cracks
- UV resistant – gray membrane can be exposed up to six months; black membrane ideal for long-term exposure
- Sprayable with properly configured airless equipment for low-cost application
- Excellent adhesion; bonds to damp surfaces and self-seals around nails and fasteners
- Quick-dry technology unique to the air barrier market simplifies installation
PACKAGING
- 5 Gallon (18.93 L) Pails
COVERAGE / APPLICATION RATE
| Wet Film Thickness | Dry Film Thickness | Coverage |
|---|---|---|
| 55 mil (1.39 mm) | 23 mil (0.59 mm) | 29 ft²/gal (0.72 m²/L) |
| 83 mil (2.1 mm) | 35 mil (0.9 mm) | 19.2 ft²/gal (0.47 m²/L) |
| 95 mil (2.41 mm) | 40 mil (1 mm) | 16.7 ft²/gal (0.41 m²/L) |
SHELF LIFE
- Store indoors in original, unopened containers at 40° – 90° F (4° – 32° C)
- Best used within one year of manufacture
SPECIFICATIONS / STANDARDS
- Exceeds Air Barrier Association of America (ABAA) requirements for fluid-applied air barriers
- Exceeds ABAA assembly and material air leakage limits (ASTM E2357, ASTM E2178)
- Meets Massachusetts Commercial Energy Code requirements for building envelope systems
- Complies with all current VOC regulations, including National EPA VOC Emission Standard for Architectural Coatings, CARB, LADCO, OTC Phase I & II, Arizona Maricopa County, Utah Department of Environmental Quality, and Colorado VOC regulations
RESOURCES
- Data Sheet
- Safety Data Sheet
- Plywood Sheathing Joint Detail
- Exterior Sheathing Installation Guidelines
- Rough Opening Installation Guidelines
- Adhesion and Chemical Compatibility Technical Bulletin
- Spray Adhesives Technical Bulletin
- Sprayer Equipment Guidelines
- ASTM E84 Flame Spread and Smoke Development Testing Technical Bulletin
- NFPA Documentation
