BUTYL TRANSITION AND DETAILING MEMBRANE FOR AIR, VAPOR, AND MOISTURE PROTECTION

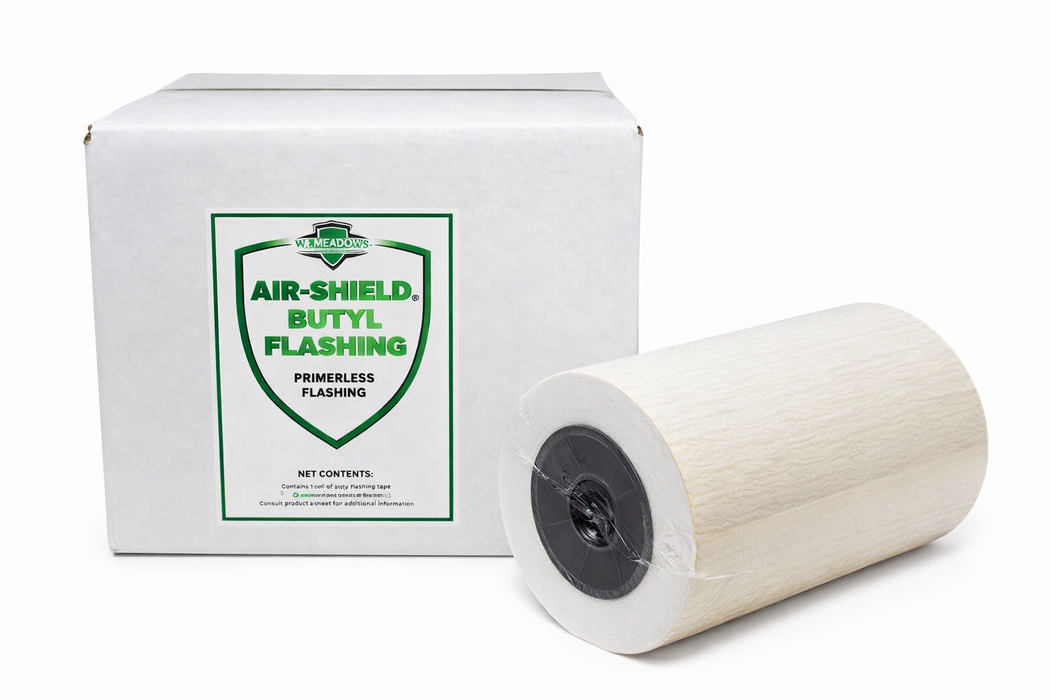

AIR-SHIELD BUTYL FLASHING is a primerless, self-adhering composite membrane designed for extreme cold weather applications down to 10°F (-12°C). It features a white woven polyethylene facer and an easy-release split-face PET (polyester) backing. This versatile membrane serves as an air, vapor, and liquid moisture barrier, ideal for flashing rough openings, windows, detailed transitions, and other critical non-roof areas.
Its lightweight construction, high puncture resistance, and factory-controlled thickness provide consistent performance while protecting surfaces from incidental damage during installation. Designed for compatibility with the full AIR-SHIELD product line, it ensures a complete, reliable building envelope system.
USES
AIR-SHIELD BUTYL FLASHING protects against water infiltration in key detail areas, including:
- Window and door openings
- Deck-to-wall intersections
- Corner boards and wall-to-wall tie-ins
- Foundation sill plates
- Sheathing panel seams
- Masonry walls
It can be applied without primer to substrates such as concrete, steel, copper, stainless steel, galvanized steel, untreated wood, insulated concrete forms (ICFs), extruded insulation board, and exterior-grade fiberglass mat gypsum board. Treated lumber, OSB, and plywood may require primer depending on surface conditions.
FEATURES
- AAMA 711 Approved – Meets voluntary specification for self-adhering flashing for exterior fenestration
- Primerless application for faster installation, reduced labor, and fewer adhesive issues
- Split-face PET clear film backing for easy release and reduced tearing
- Installs in temperatures as low as 10°F (-12°C), the lowest primerless application temperature on the market
- Can be exposed up to 24 months; intermittent exposure up to 240°F (115°C)
- Factory-controlled thickness ensures uniform performance
- High puncture-rated surface film protects the membrane during installation
- Lighter weight than conventional flashing materials
- Available in convenient pre-cut widths to reduce on-site cutting and labor costs
SIZES
- Standard Roll Length: 75′ (22.9 m)
- Available Widths: 9" and 12" rolls
STORAGE
- Store palletized, protected from rain and physical damage
- Do not store above 80°F (26.6°C) for extended periods
- Keep out of direct sunlight
- Do not double-deck pallets
SPECIFICATIONS / STANDARDS
- Exceeds AAMA 711 Standards – Self-Adhering Flashing for Exterior Wall Fenestration
- Complies with ASTM E2112-07 – Standard Practice for Installation of Exterior Windows, Doors, and Skylights
