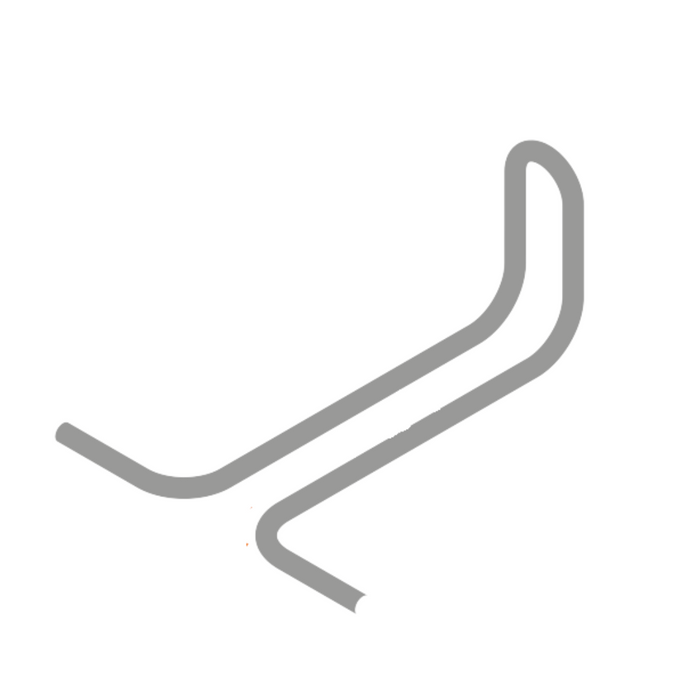

PROSOCO Wire Tie for Thermal-Grip® MVA (250 Pieces/Box)

ENGINEERED WIRE TIES FOR THERMAL-GRIP® MVA ANCHORS

These PROSOCO Wire Ties are specifically designed to pair with the Thermal-Grip® Masonry Veneer Anchor (MVA) system. Manufactured from either hot-dip galvanized carbon steel or Type 304 stainless steel, each tie features a 1-1/4" offset in accordance with TMS 402 building code requirements. Available in multiple lengths to accommodate various wall cavity depths, these ties deliver reliable performance and long-term durability in both standard and corrosive environments.

FEATURES

• Compatible with Thermal-Grip® MVA – Designed for secure integration with the MVA anchor system

• Code-compliant offset – 1-1/4" offset meets TMS 402 building code for masonry veneer applications

• High-strength construction – Made from 3/16" (4.76 mm) diameter wire for structural reliability

• Multiple lengths available – Supports a wide range of wall cavity depths and air space requirements

• Material options for every environment – Choose hot-dip galvanized or Type 304 stainless steel based on project needs

TECHNICAL SPECIFICATIONS

• Wire Diameter: 3/16" (4.76 mm)

• Offset: 1-1/4"

• Hot-Dip Galvanized Steel:

  • ASTM A1064, galvanized to ASTM A153, B-2 (1.5 oz/ft²)

  • Tensile strength: 85–110 ksi

• Type 304 Stainless Steel:

  • ASTM A580

  • Tensile strength: 102.5–150 ksi

  • Yield strength: 70 ksi

WIRE TIE LENGTH GUIDELINES

• 3" Tie: For 1" to 2" air space

• 4" Tie: For 1-1/2" to 3" air space

• 5" Tie: For 2-1/2" to 4" air space

AVAILABLE OPTIONS

• 62165-0300 – 3" Hot-Dip Galvanized Wire Tie

• 62165-0400 – 4" Hot-Dip Galvanized Wire Tie

• 62170-0300 – 3" Stainless Steel Wire Tie*

• 62170-0400 – 4" Stainless Steel Wire Tie*

• 62170-0500 – 5" Stainless Steel Wire Tie*

*Special Order 4-week lead time

PACKAGE QUANTITY

• 250 pieces per box

RESOURCES

• Technical Brochure
• Submittal
