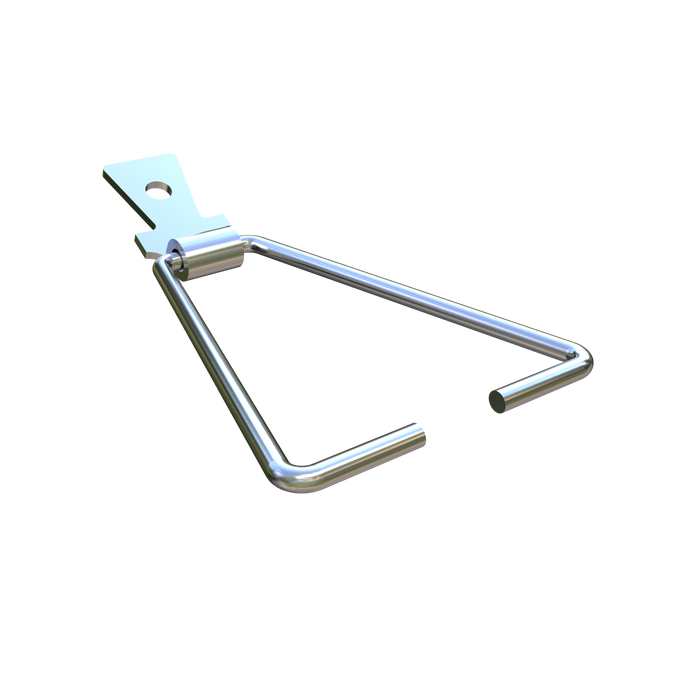

3Gen Masonry Products Dovetail Triangle – Hot Dip Galvanized Wire Tie for Dovetail Anchor Systems (250 Pieces/Box)

DOVETAIL TRIANGLE PROVIDES A STRONG AND ADJUSTABLE CONNECTION IN MASONRY VENEER SYSTEMS WHEN USED IN DOVETAIL SLOT OR SURFACE-MOUNTED APPLICATIONS

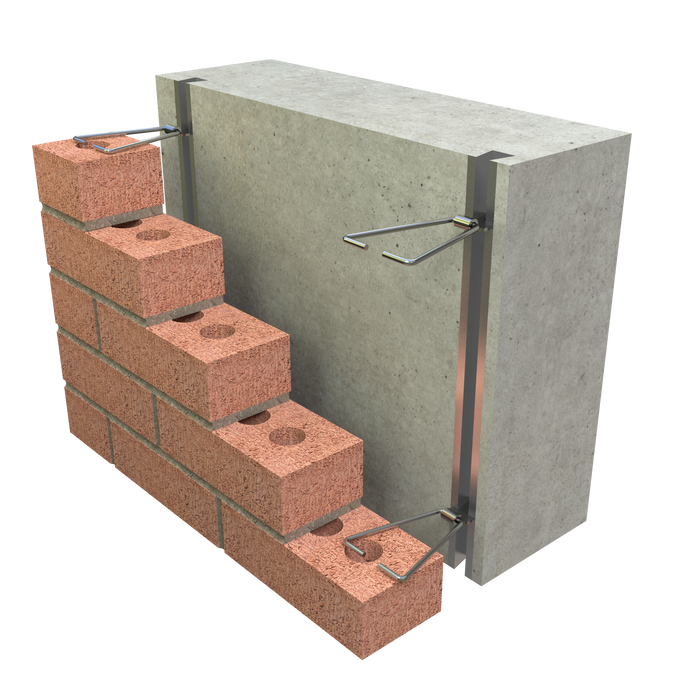

Dovetail Triangle is designed for use in masonry cavity wall systems where dovetail anchor slots are present or where surface mounting to concrete, CMU, or brick is required. Featuring a 12-gauge dovetail head and 3/16” diameter wire, this tie delivers strength, durability, and reliable performance. Manufactured from high-strength carbon steel and hot dip galvanized after fabrication, it offers excellent corrosion resistance and long-term performance in demanding environments.

FEATURES

• Designed For Use In Dovetail Slot Or Surface-Mounted Applications
• 12 Gauge Dovetail Head Provides Secure Connection
• 3/16” Diameter Wire Offers Strength And Durability
• Hot Dip Galvanized After Fabrication For Corrosion Resistance
• Compatible With Concrete, CMU, And Brick Backup Systems
• Meets TMS 402/602 & ACI / ASCE 530 Masonry Code Requirements

USES

• Brick Veneer Anchoring Systems
• Dovetail Anchor Slot Applications
• Surface-Mounted Masonry Anchoring
• Commercial Masonry Construction
• Residential Masonry Applications

SIZES / OPTIONS

• Dovetail Head Thickness: 12 Gauge
• Wire Diameter: 3/16”
• Lengths Available: 3”, 4”, 5”, 6”, 7”
• Finish: Hot Dip Galvanized
• Packaging: 250 Pieces Per Box

SPECIFICATIONS

SUSTAINABILITY

• 85% Post-Consumer Recycled Content
• 10% Post-Industrial Recycled Content

RESOURCES

• Submittal Sheet
• SDS Carbon Steel Coil
• SDS Wire Rod Sheet
• SDS MG & HG Zinc Sheet
• LEED Sheet
• Product Substitution Request Form
