3Gen Masonry Products Partition Top Anchor – Dovetail (PTA-DT) – Hot Dip Galvanized Slip Anchor for Dovetail Slot Systems (100 Pieces/Box)

PARTITION TOP ANCHOR – DOVETAIL PROVIDES LATERAL SHEAR RESISTANCE WHILE ALLOWING VERTICAL SLAB MOVEMENT IN MASONRY WALLS WITH DOVETAIL SLOT CONNECTIONS

Partition Top Anchor – Dovetail (PTA-DT) is designed for use at the top of slab masonry walls where dovetail slots are present. This anchor provides lateral stability while allowing vertical movement of the structure above, preventing compressive loads from transferring to the wall below. Featuring a tube with expansion filler and a dovetail connection, it integrates seamlessly into dovetail slot systems. The assembly is embedded in mortar to ensure stability and long-term performance. Manufactured from high-strength materials and hot dip galvanized after fabrication, it offers excellent durability and corrosion resistance.

FEATURES

• Designed For Use In Dovetail Slot Systems
• Provides Lateral Shear Resistance At Top Of Masonry Walls
• Allows Vertical Slab Movement Without Transferring Compressive Loads
• Tube With Expansion Filler Accommodates Structural Movement
• Embedded In Mortar Joint For Stability
• Hot Dip Galvanized After Fabrication For Corrosion Resistance
• Meets TMS 402/602 & ACI / ASCE 530 Masonry Code Requirements

USES

• Top Of Wall Masonry Connections
• Dovetail Slot Wall Systems
• Partition Wall Assemblies
• Commercial Masonry Construction
• Multi-Story Building Applications

SIZES / OPTIONS

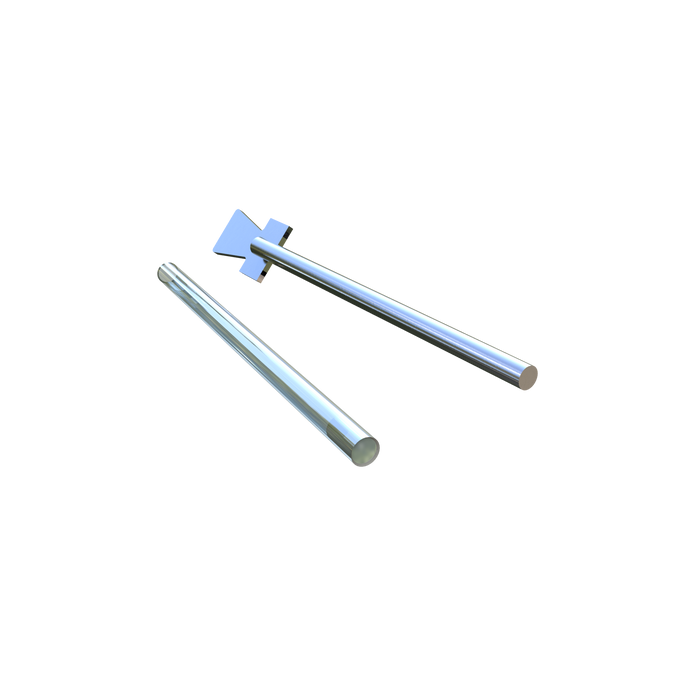

• Rod Size: 3/8” x 7”
• Assembly: Tube With Expansion Filler
• Connection Type: Dovetail Slot
• Finish: Hot Dip Galvanized (ASTM A153-B2)
• Packaging: 100 Pieces Per Box

SPECIFICATIONS

INSTALLATION NOTE

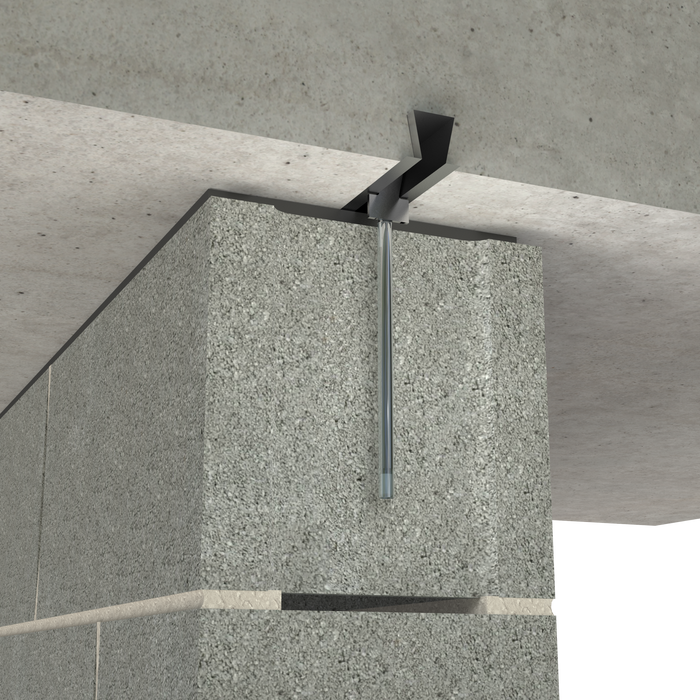

Designed for installation in dovetail slot systems and embedded in mortar at the top of wall to provide lateral restraint while allowing vertical movement of the slab above.

SUSTAINABILITY

• 85% Post-Consumer Recycled Content
• 10% Post-Industrial Recycled Content
