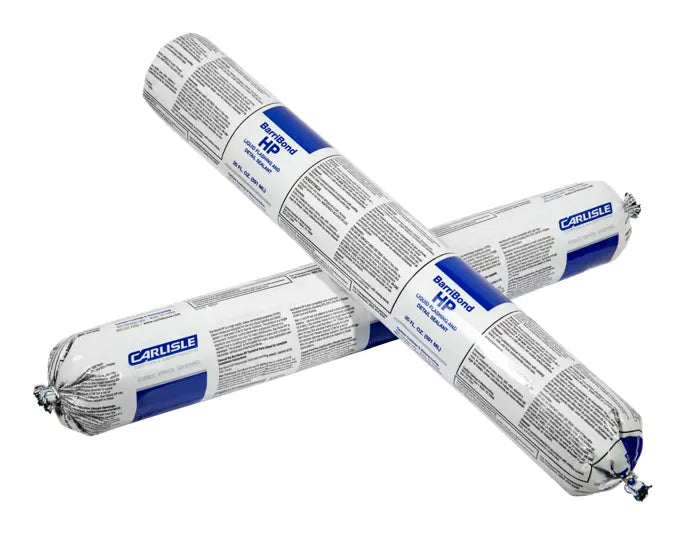

Carlisle Coatings & Waterproofing BarriBond™ HP Liquid Flashing & Sealant – 20 oz Sausage

ELASTOMERIC LIQUID FLASHING AND DETAIL SEALANT FOR COMMERCIAL BUILDING ENVELOPE APPLICATIONS

Carlisle Coatings & Waterproofing BarriBond™ HP is a moisture-cure, single-component, elastomeric, non-sag sealant formulated with advanced silyl-terminated polyether (STPE) technology. It cures through exposure to airborne moisture to form a tough, seamless, rubber-like membrane with excellent weathering and water resistance.

Designed for use as a joint sealant and liquid flashing, BarriBond™ HP is used in commercial building envelope systems and provides reliable performance across a wide range of detailing applications.

CODES & APPROVALS

• ASTM C920 – Type S, Grade NS, Class 25, Use NT

• AAMA 714-15 – Meets all requirements for liquid-applied flashing

FEATURES

• Compatible with many Henry® building envelope systems

• Tough, elastic, zero-shrinkage material for long-term joint and gap sealing

• Suitable for complex, multi-plane flashing conditions

• Moisture-curing, non-sag formulation for easy application

• Meets or exceeds AAMA 714 performance requirements

• Low VOC, low odor – approved for use in all 50 states

• Adheres to damp masonry and concrete

• Wide installation temperature range

• Signature color for easy field identification

• Dark color suitable for open-joint rainscreen systems

USES

• Joint sealant and termination sealant

• Liquid flashing in building envelope applications

• Rough openings, angle changes, and sheathing joints

• Expansion joints, cracks, holes, and penetrations

• Membrane splices and terminations

Compatible with Henry® systems including Blueskin®, Metal Clad®, CCW-705, Air-Bloc®, Barritech™, R2+ Polyiso, MiraDRI™, MiraSEAL™, and MiraPLY™.

COVERAGE

At 40 mil (1 mm) thickness:

• 6.27 sq ft per 20 oz (591 mL) sausage

Approximate ribbon coverage per sausage:

• 1" width: 75.24 ft

• 2" width: 37.62 ft

• 3" width: 25.08 ft

• 4" width: 18.81 ft

• 6" width: 12.54 ft

• 9" width: 8.36 ft

• 12" width: 6.27 ft

Joint sealant yield per 20 oz sausage:

• 1/8" bead: 245 ft

• 1/4" bead: 61 ft

• 3/8" bead: 27 ft

• 1/2" bead: 15 ft

• 5/8" bead: 10 ft

• 3/4" bead: 7 ft

• 7/8" bead: 5 ft

• 1" bead: 4 ft

SIZES / PACKAGING

• 20 oz (591 mL) foil sausage

• 20 sausages per box

LIMITATIONS

• UV exposure may be permanent, but follow system-specific exposure limits

• Not intended as a traffic- or wear-resistant surface

• Control joint depth to a maximum of 1/2" (12 mm) using backer rod

• Do not install over wood substrates with moisture content above 20%

• Do not allow contact with other manufacturers’ sealants or membranes without approval

STORAGE

• Shelf life: 15 months in unopened packaging

• Store at or below 80°F (27°C) and 50% RH max

• Protect from heat, direct sunlight, and precipitation
