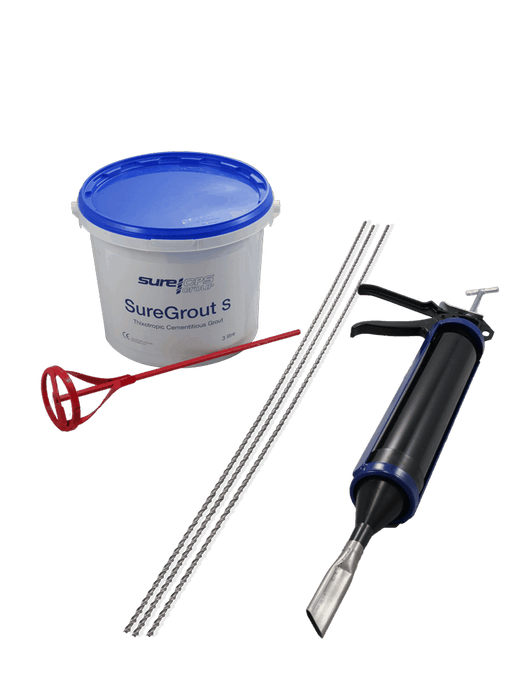

PROSOCO Stitch-Tie Bar

PROVIDES REINFORCEMENT IN MORTAR JOINTS AND DUTCHMEN

The stainless steel PROSOCO Stitch-Tie Bar repairs cracked masonry and provides reinforcement to create structural beams from existing brick veneers. The Stitch-Tie Bar comes with SureGrout, a high-performance, non-oxidizing, non-shrink, thixotropic, cement-based grout that’s suitable for injecting by hand.

FEATURES

• No special skills required to install

• Top cover of matching mortar can be applied immediately after grout and bar installation

• Bars can be embedded in non-linear joints

• Offers a permanent repair that eliminates the need to rebuild a masonry wall

OVERVIEW

The Stitch-Tie Bar is used to repair cracked masonry and can provide reinforcement to create structural beams from existing brick veneers. The bars are manufactured of Type 304 stainless steel (Type 316 available upon request). The Stitch-Tie Bar and SureGrout provide excellent bonding characteristics within the masonry. When used together, Stitch-Tie Bar offers a superb combination of axial strength and flexibility, which helps absorb further localized stress. They are installed in existing mortar bed joints that have had mortar removed to accommodate the bar and grout material.

INSTALLATION STEPS

1. Grind away existing mortar, 20” minimum on each side of crack, 1-1/2”-2” deep. Clean with water.
2. Apply a bead of SureGrout at the base of the ground joint.

3. Insert Stitch-Tie® Bar into bead of SureGrout.
4. Apply second/third bead of SureGrout over Stitch-Tie® Bar, and compact with appropriate trowel.
