PROSOCO Facade-Tie System (50 Pieces/Box)

FACADE-TIE SYSTEM FOR RE-ANCHORING EXISTING VENEERS TO INTERIOR STUDS

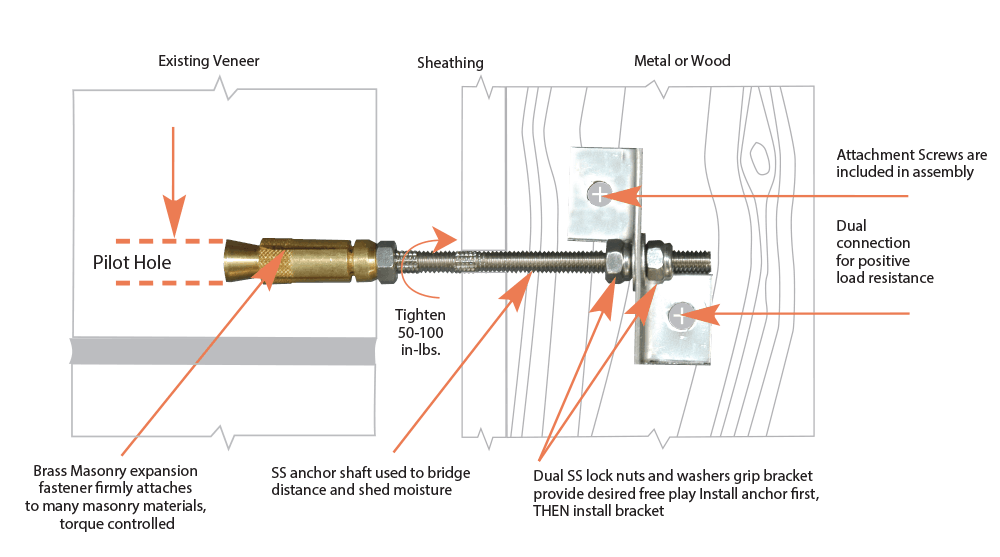

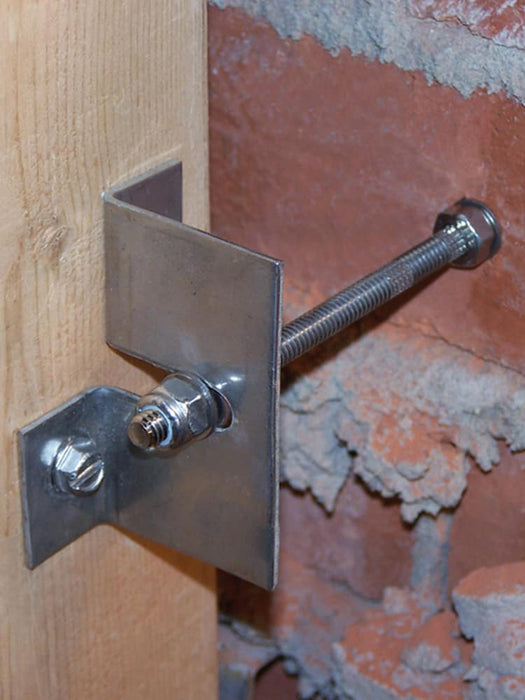

The PROSOCO Facade-Tie System allows masonry facades—such as brick, stone, block, or precast—to be securely re-attached from the interior of a building. This eliminates the need for exterior scaffolding, brick removal, mortar patching, or weather-dependent installations. The discreet bracket design conceals the connection once drywall is installed and simplifies the installation process with supplied fasteners. Available in stainless steel or galvanized finishes for long-term durability in a range of environments.

FEATURES

• Interior-only installation – No exterior holes, scaffolding, or brick removal required

• Concealed connections – Hidden once drywall is installed for a clean finished look

• Quick and easy install – Bracket fastens directly to studs using included hardware

• Sealant compatible – All fastener holes can be sealed with a compatible sealant

• Durable materials – Available in stainless steel for aggressive environments and galvanized for interior use

PACKAGE QUANTITY

• 50 pieces per box

RECOMMENDED FOR

• Renovation and remodels

• Structural stabilization

• Load-sharing in aging masonry walls

• Interior build-outs where exterior access is limited or not feasible

NOTE

• Always consult with a qualified engineer and follow local code requirements when designing and installing façade anchorage systems.
• Setting tool sold separately

USED TO INSTALL

• Grip Tie Setting Tool

RESOURCES

• Technical Brochure
• Submittal
• Installation Guide
