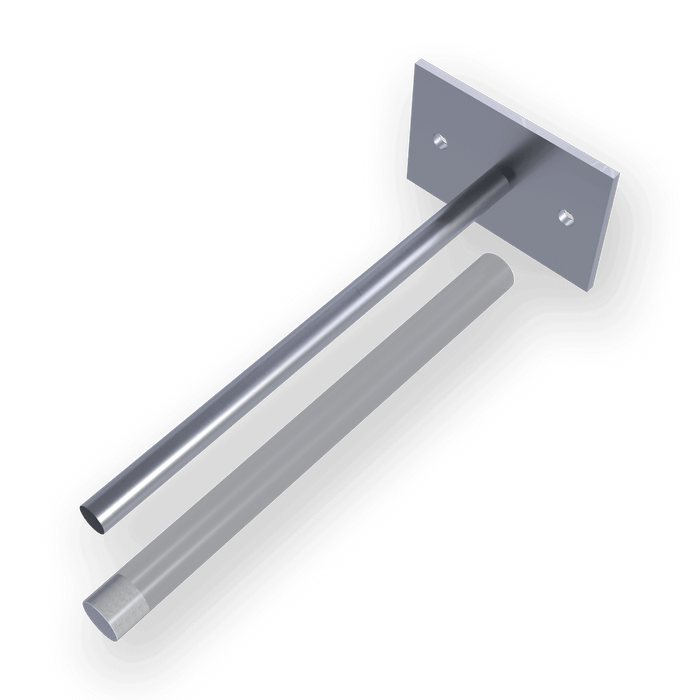

Heckmann Building Products Pin Stabilizing Wall Anchor with Plastic Tube (100 Pieces/Box)

PIN STABILIZING WALL ANCHOR 419 DESIGNED FOR POSITIVE STRUCTURAL CONNECTION TO STEEL OR CONCRETE

The Masonry Direct Pin Stabilizing Wall Anchor 419 provides a secure tie between structural framing and CMU walls. Ideal for applications where lateral stability and positive anchorage are required, this system installs by welding to structural steel or fastening directly to concrete.

APPLICATION

Designed to anchor masonry walls to structural beams or concrete slabs in commercial and structural CMU construction.

STANDARD CONFIGURATION

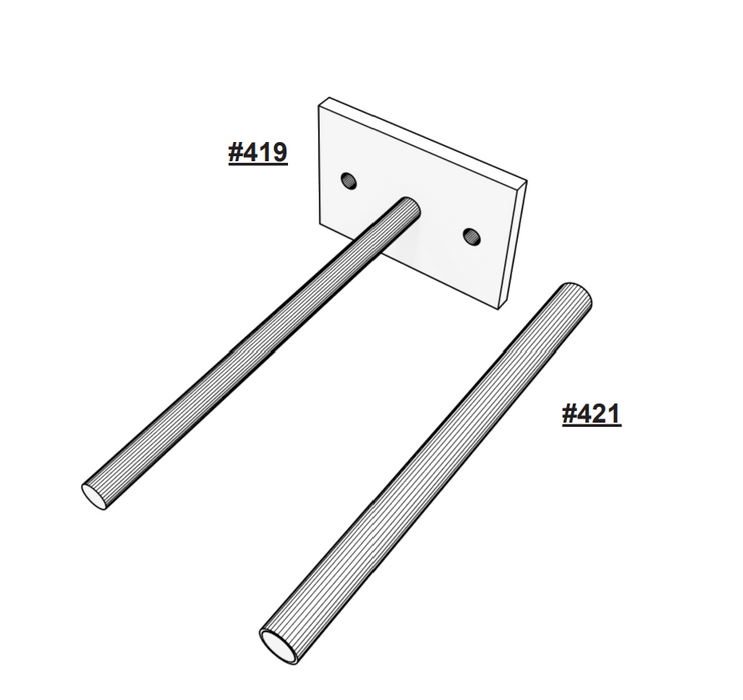

• 3/16" thick x 1-1/2" wide x 3" long plate

• Welded 3/8" diameter x 6-3/4" long rod

• Two 5/16" diameter holes for mechanical attachment

Standard units are packaged with the #421 Plastic Tube:

• 5/8" OD x 7-1/4" long

• Includes compressible end plug to prevent grout infiltration

• Hot Dip Galvanized finish

MATERIALS AND FINISHES

• Hot dip galvanized ASTM A153 Class B-2 (1.50 oz/ft² coating)

• Plain carbon steel ASTM A1008/A1008M and ASTM A36/A36M-08

RESOURCES

• 419 421 Submittal Sheet
• 419 Specification
• Hot Rolled Steel Plate SDS
• Hotdip Galvanized SDS
